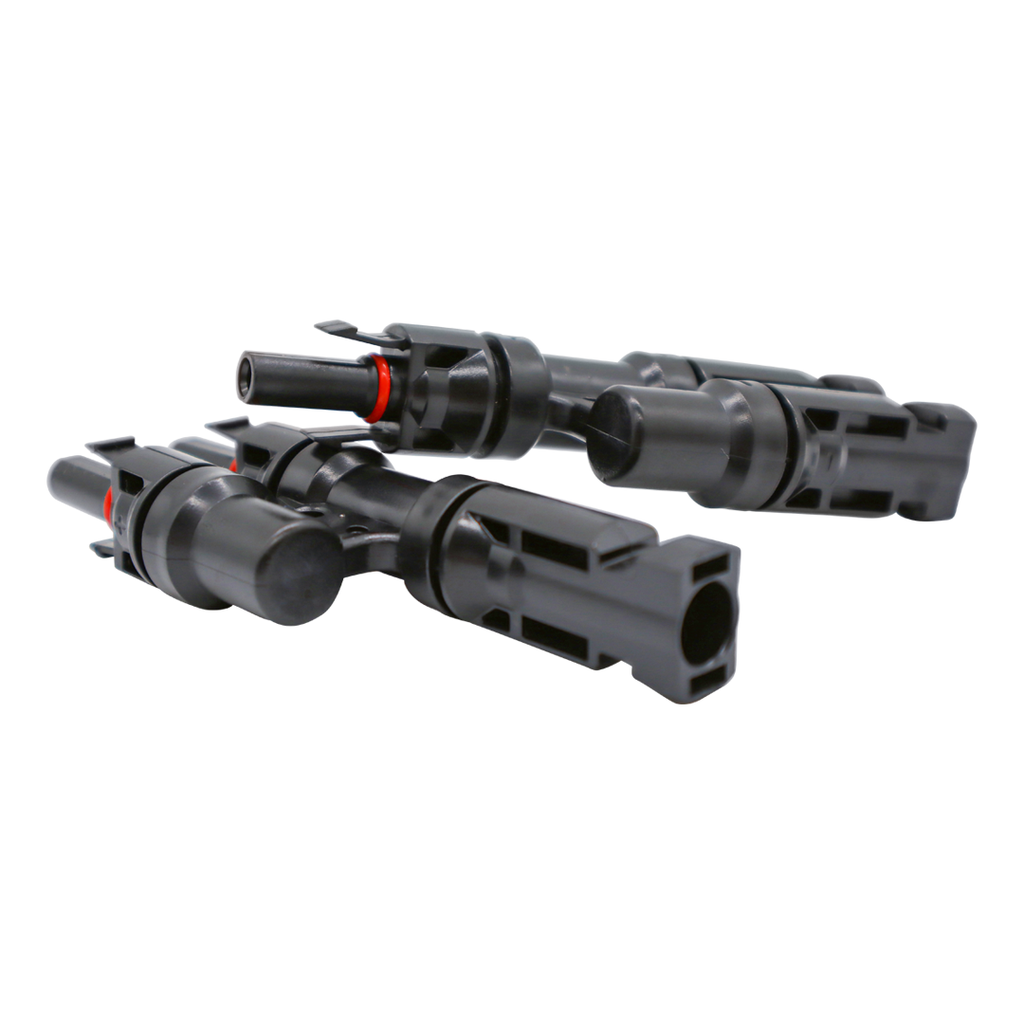

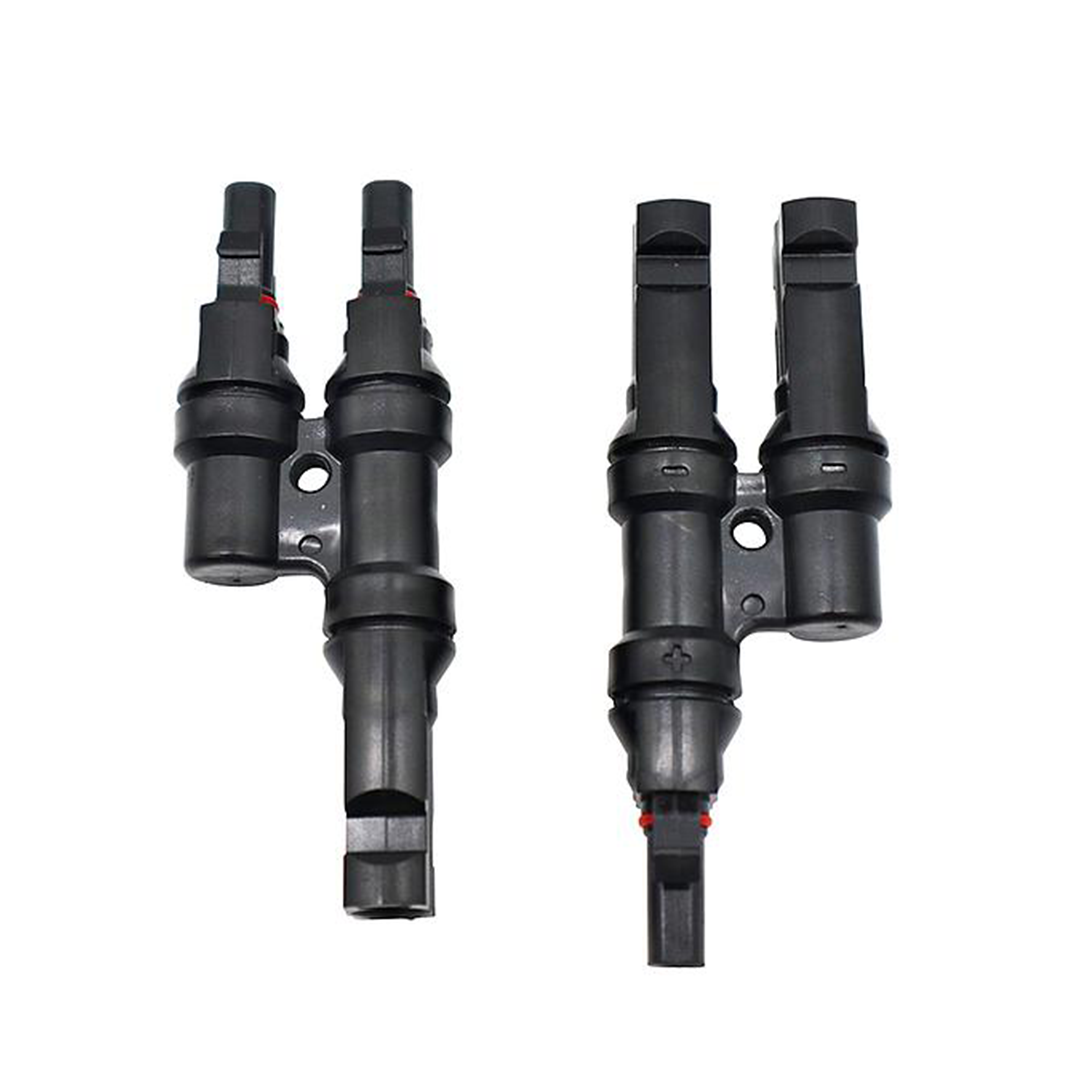

Alvolta Branch Solar Panel Parallel Connectors (Pair)
Alvolta Branch Solar Panel Parallel Connectors (Pair)
Features:
- 1x female branch solar connector
- 1x male branch solar connector
- Suitable for 4-6mm² cable
- Snap-in locking
- Tried and tested solar plug connectors
- UV protected
- IP68 rated
Alvolta solar panel branch connectors, perfecting for solar array connections. Whether you need to wire your panels in series or parallel these connectors will assist with your requirements. The solar plug branch connector is designed to accept 4-6mm2 solar cable and is proven technology with high long term stability. Ensure when installing your Alvolta solar panels you are using the Alvolta Connectors.
Solar connectors are single-contact electrical connectors commonly used for connecting solar panels. The Solar connectors allow strings of panels to be easily constructed by pushing the connectors from adjacent panels together by hand, but require a tool to disconnect them to ensure they do not accidentally disconnect when the cables are pulled. The Solar panel connectors are compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.

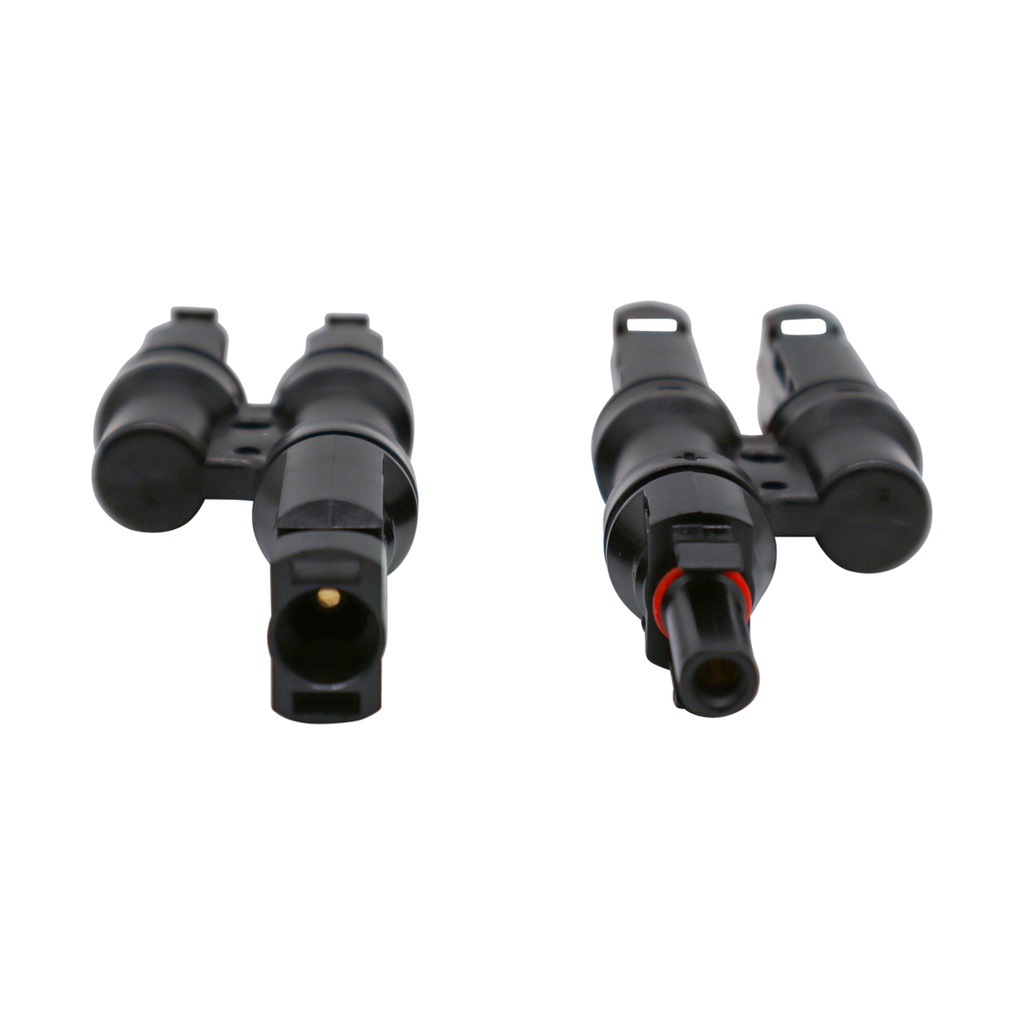

The Solar system consists of a plug and socket design. Oddly, the plugs and sockets are placed inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female. The female connector has two plastic fingers that have to be pressed toward the central probe slightly to insert into holes in the front of the male connector. When the two are pushed together, the fingers slide down the holes until they reach a notch cut into the side of the male connector, where they pop outward to lock the two together.
For a proper seal, solar connectors require the usage of a cable with the correct diameter. Normally double-insulated (insulation plus black sheath) and UV resistant (most cables deteriorate if used outdoors without protection from sunlight). Connection is made by use of a special crimping tool, alternatively by soldering.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
