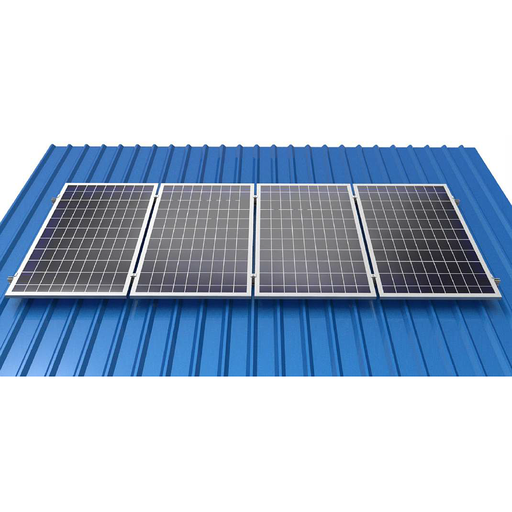

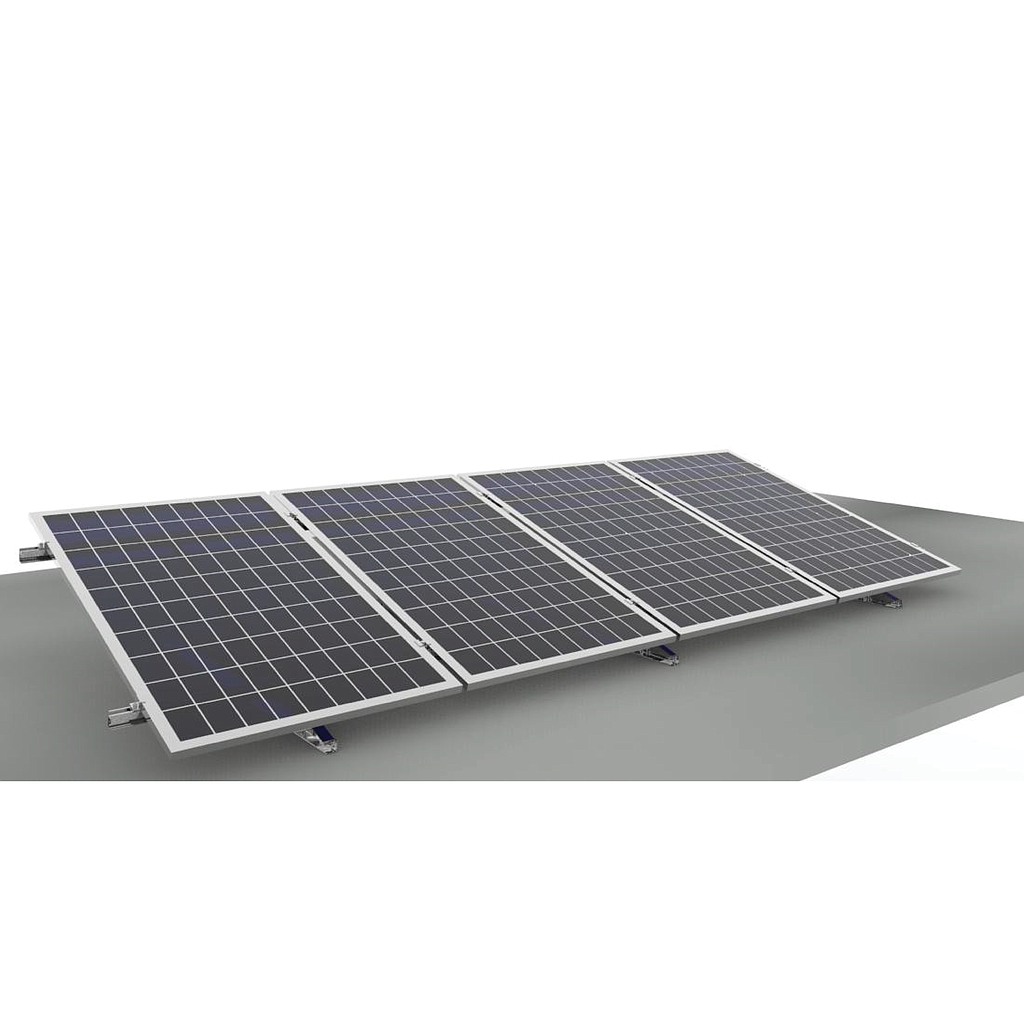

Alvolta Solar Panel Adjustable Tripod Mounting Kit
Modular tilt roof mount system for four solar panels
Alvolta Solar Panel Adjustable Tripod Mounting Kit
Features
- Tin roof mount kit
- Adjustable tilt angle
- Modular system
- Suitable for four solar panels per mounting kit
- Designed for installation on tin roofs
- Stainless steel 304 & aluminium composition
- Corrosion-resistant
Simple installation
This roof mount kit has been designed to make installation as straightforward as possible. The system utilises a limited number of components to reduce confusion and time. The majority of kit accessories are pre-assembled to help provide an efficient and simple installation.
Modular system
Each roof mount kit includes two extra joiner bars, so you can easily increase the array size by adding another kit.
Recommended solar panels
- Any
Where to use it
Suitable for installation on structures with a tin roof up to 20 metres in height and up to 60 degrees tilt angle.
- Sheds
- Cabins
- Warehouses
- Airbnbs
- Tiny homes
- Remote sites
Warranty
- 5-year warranty
What's in the box?
| Description | Dimensions | Quantity |
| Tripod Mount | 2x aluminium 1550 mm 1x aluminium 620 mm 5x stainless steel bolts and stainless steel nuts 2x stainless steel bolts and aluminium nuts 2x L brackets | 3 |
| Rail | 1500 (L) x 50.8 (H) x 28.8 (W) mm | 6 |
| T Head Rail Connector with Washer & Nut | M8*25 | 10 |
| Adjustable End Clamp | 35 - 40 mm | 4 |
| Mid Clamp (Earthing) | 35 - 40 mm | 4 |
| Mid Clamp (No Earthing) | 35 - 40 mm | 4 |
| Rail Joiner | 140 mm | 6 |
| Earthing Lug | N/A | 2 |
| Roofing Screw | 6.3 x 80 mm | 6 |
| Rail Cap | N/A | 4 |
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
