Can be connected in series, parallel or a combination of both
Up to 25 batteries can be connected in a bank, offering a maximum 128 kWh capacity

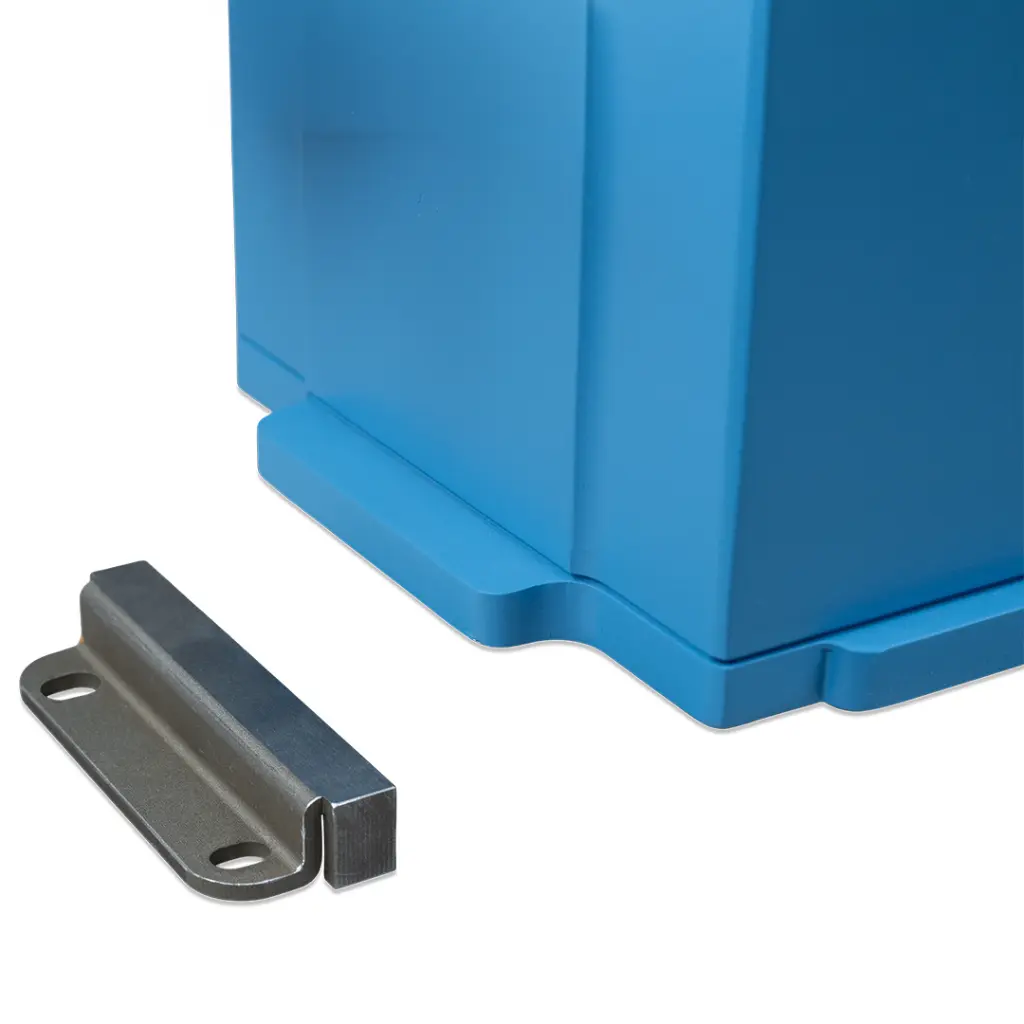

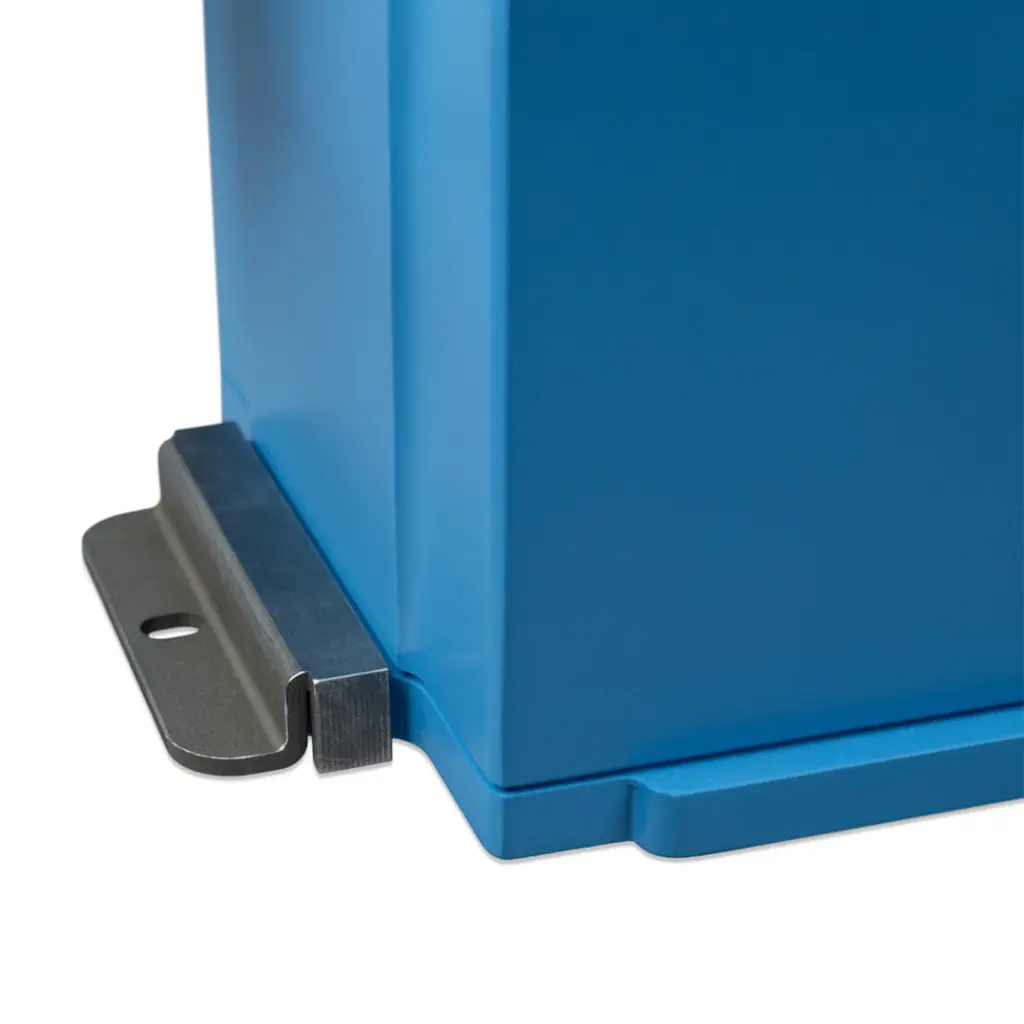

Bracket and strap mounting included
Low self-discharge rate
Integrated cell balancing
Where to use it

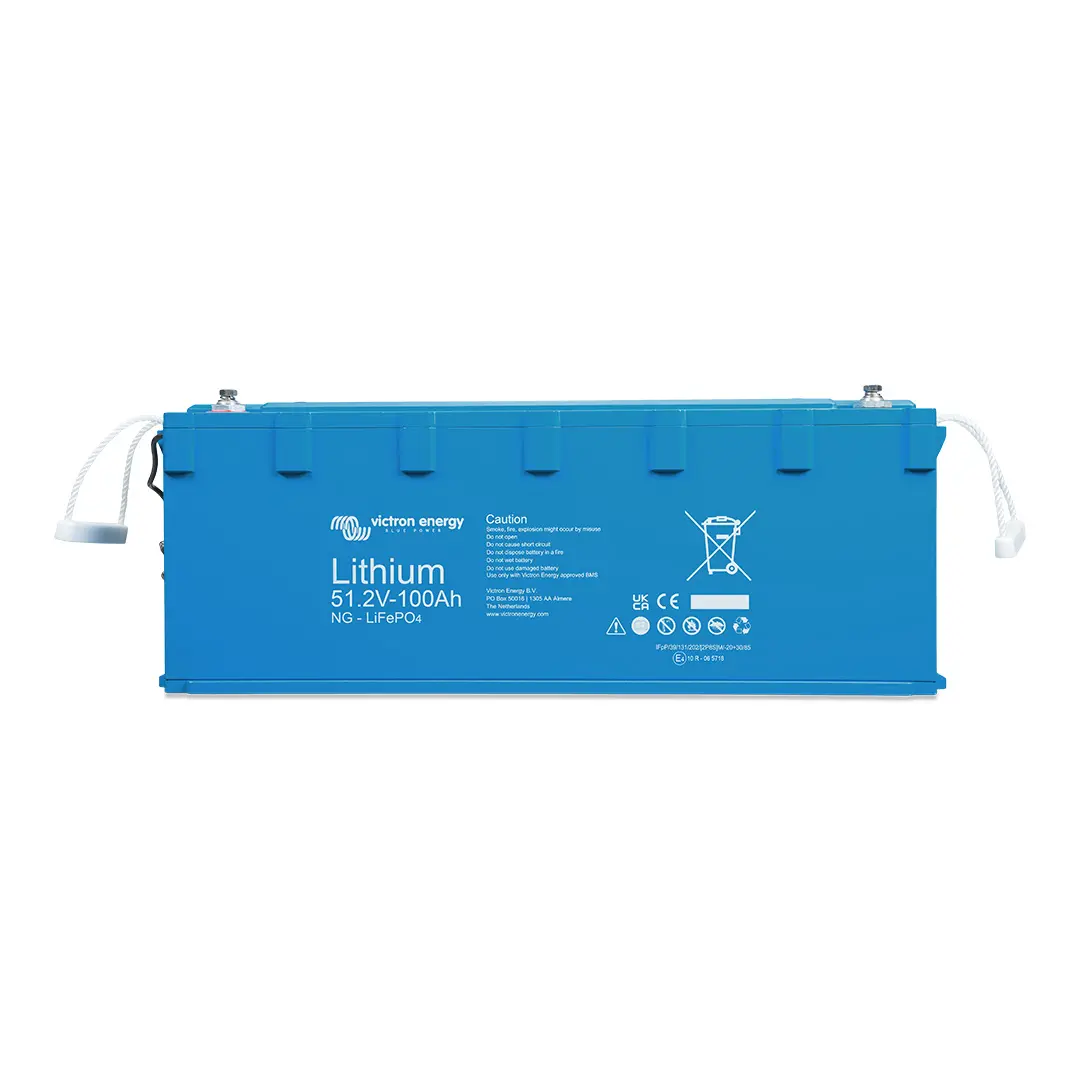

The Victron 51.2V NG Lithium Battery is a high-performance lithium-ion phosphate battery. Its high voltage capacity makes it ideal for 48 V systems that require reliable, high energy density, such as residential solar, off-grid cabins, industrial applications, and marine setups.
Dimensions
Width
648 mm
Height
235 mm
Depth
162 mm
Weight
37 kg
Safety Features
IP67 rated - protected against dust and rain
Protected against overheating
Warranty
5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Between 14 V / 28 V / 56 V and 14.4 V / 28.8 V / 56.8 V
Float voltage
13.5 V / 27 V / 54 V
Max continuous charge current (C-rate)
100 A (1C)
Max pulse charge current 10s (C-rate)
200 A (2C)
General
BMS-es

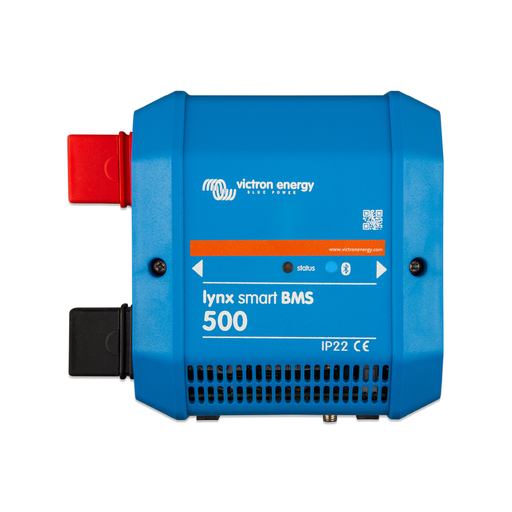

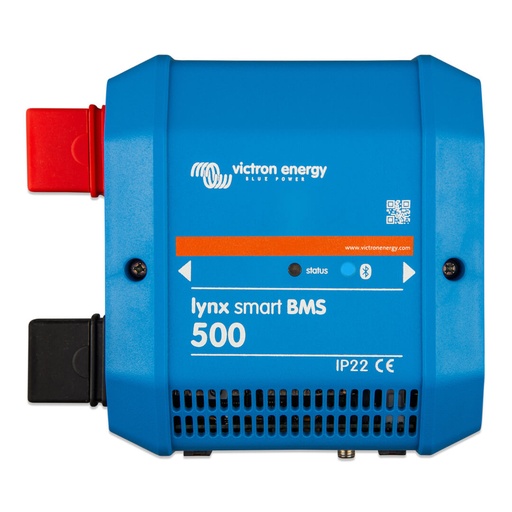

Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
Cell measurements
Cell voltages and temperatures, battery current
Battery BMS interface
Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters
Alarm feature
Pre-alarm contact on BMS
Bluetooth
In the BMS
Max batteries per BMS
25 (128 kWh per BMS)
Battery firmware updates
Battery firmware automatically updated by BMS
Repairable
Yes (cover can be removed with screws)
Operating Conditions
Operating temperature
Discharge: -20 °C to +50 °C | Charge: +5 °C to +50 °C
