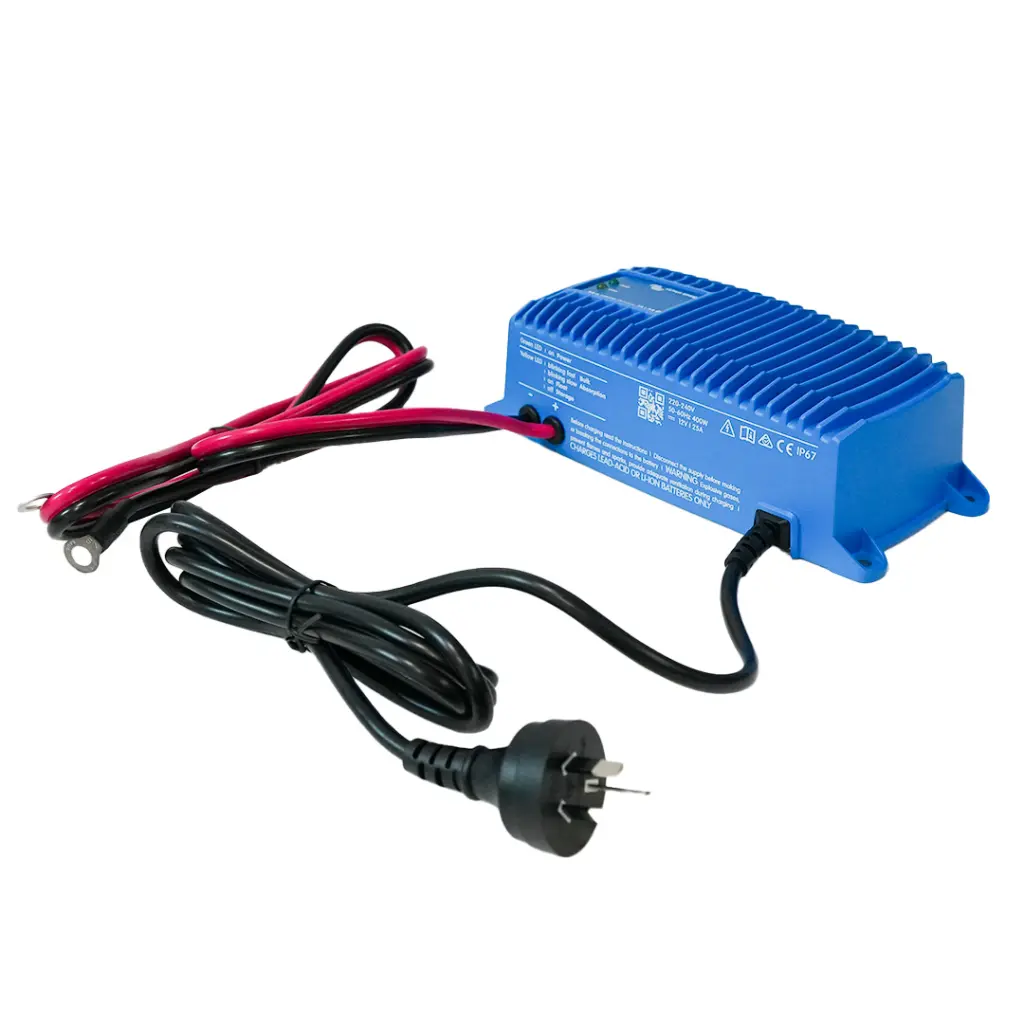

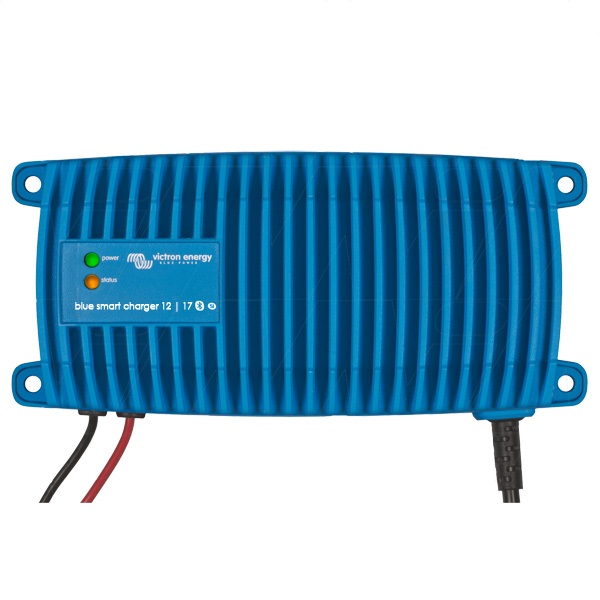

Victron Blue Smart IP67 Charger 12/17
Victron Blue Smart IP67 Charger 12/17
Features
- 17A smart battery charger
- Built-in Bluetooth with VictronConnect app
- Suitable for 12 V systems
- Compatible with AGM, gel, flooded, and lithium batteries
- Cabling & Quick-Fit connectors included
- Multi-stage charging
- Recovery of fully discharged batteries
- Battery reconditioning
- Waterproof
The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars, motorbikes, boats and camper vans.
Recovery Function for Fully Discharged Batteries
Most reverse polarity-protected chargers will not recognise, and therefore not recharge, a battery that has been discharged to zero or nearly zero Volts. The Blue Smart Charger, however, will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.
The Battery is Charged, Smartly and to Perfect Condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and a longer life.
Bluetooth Smart Enabled
The Blue Smart IP67 Charger is the wireless solution to monitor voltage and current, change settings and update the charger when new features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers.
Completely Encapsulated: Waterproof, Shockproof and Ignition Protected
Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminium, and the electronics are moulded in resin.
The Highest Efficiency Ever
Setting a new industry standard: With 92% efficiency or better, these chargers waste three to four times less heat. Once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard.
Adaptive 5-stage Charge Algorithm: Bulk – Absorption – Recondition – Float – Storage
The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The ‘adaptive’ feature will automatically optimise the charging process relative to the way the battery is being used.
Storage Mode: Less Maintenance and Ageing When the Battery is Not in Use
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode, float voltage is reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week, the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also Charges Li-ion (LiFePO₄) Batteries
LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.
Protected Against Overheating
Can be used in a hot environment, such as a machine room. Output current will reduce as the temperature increases up to 60°C, but the charger will not fail.
Two LEDs for Status Indication
Yellow LED:
- bulk charge (blinking fast)
- absorption (blinking slowly)
- float (solid)
- storage (off)
Green LED:
- power on
Dimensions
Width | 219 mm |
Height | 99 mm |
Depth | 65 mm |
Weight | 2.4 kg |
Safety Features
- IP67 rated - protected against dust and rain
- Protected against overheating
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
