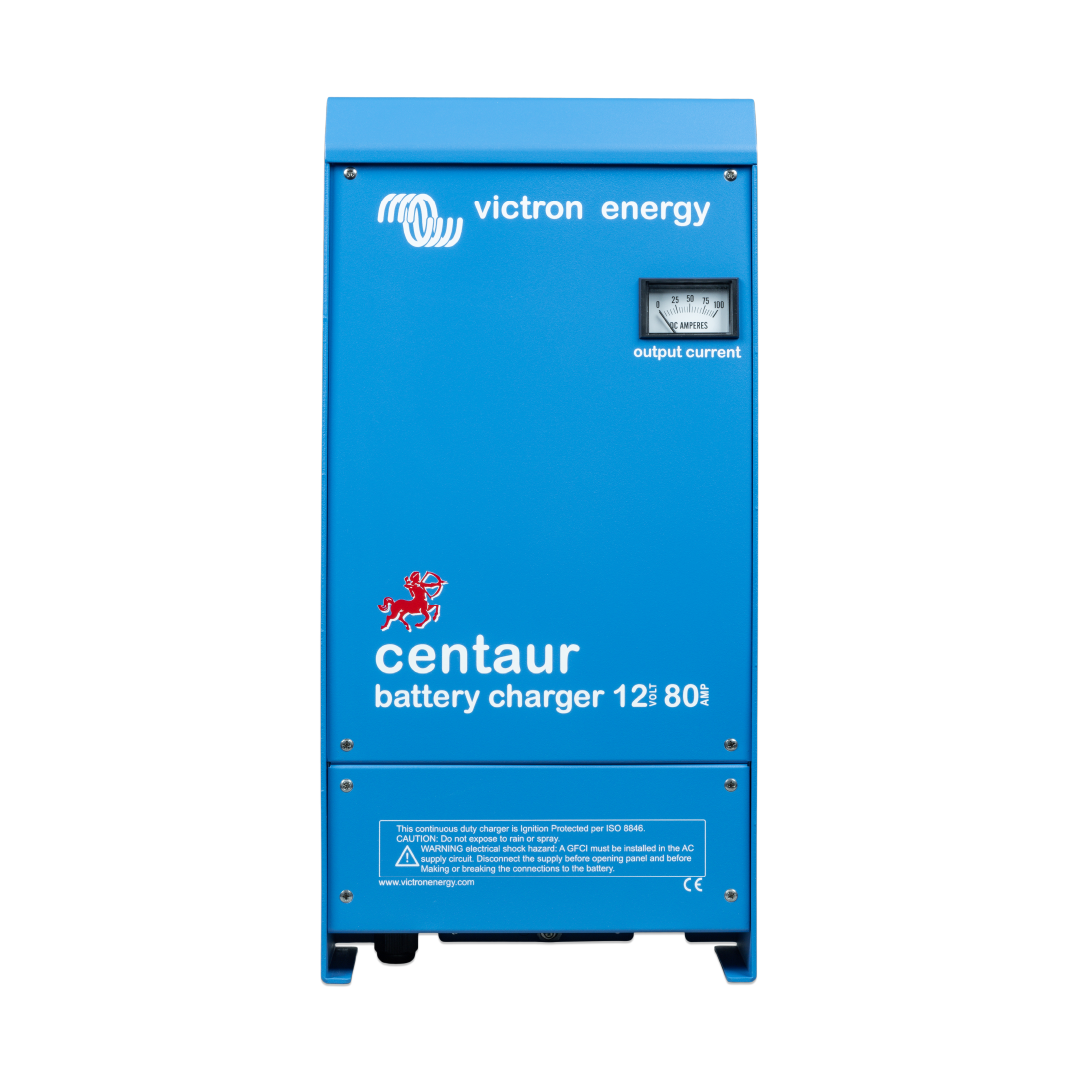

Victron Centaur Charger 12/80 (3)
Features:
• 80A Battery Charger with Three-Outputs
• 120-240V Output
• Three Stage Charging
Victron Centaur Charger 12/80, 120-240V
Features:
- Battery Charger
- Auto-Ranging Input Covering 90-265V AC 50/60Hz
- 12V 100Amps
- Three Stage Charging
- Output 120-240V
The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include a fully automatic three-stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi-battery configurations to suit the majority of typical installations.
More Features:
Quality Without Compromise:
Aluminium epoxy powder-coated cases with drip shields and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC Input Voltage Range. Also Suitable for DC Supply (AC-DC and DC-DC Operation):
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three Outputs That Can Each Supply the Full Output Current:
Three isolated outputs to simultaneously charge 3 battery banks. Each output is capable of supplying the full rated current.
Three-Stage Charging, with Temperature Compensation:
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4-hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
