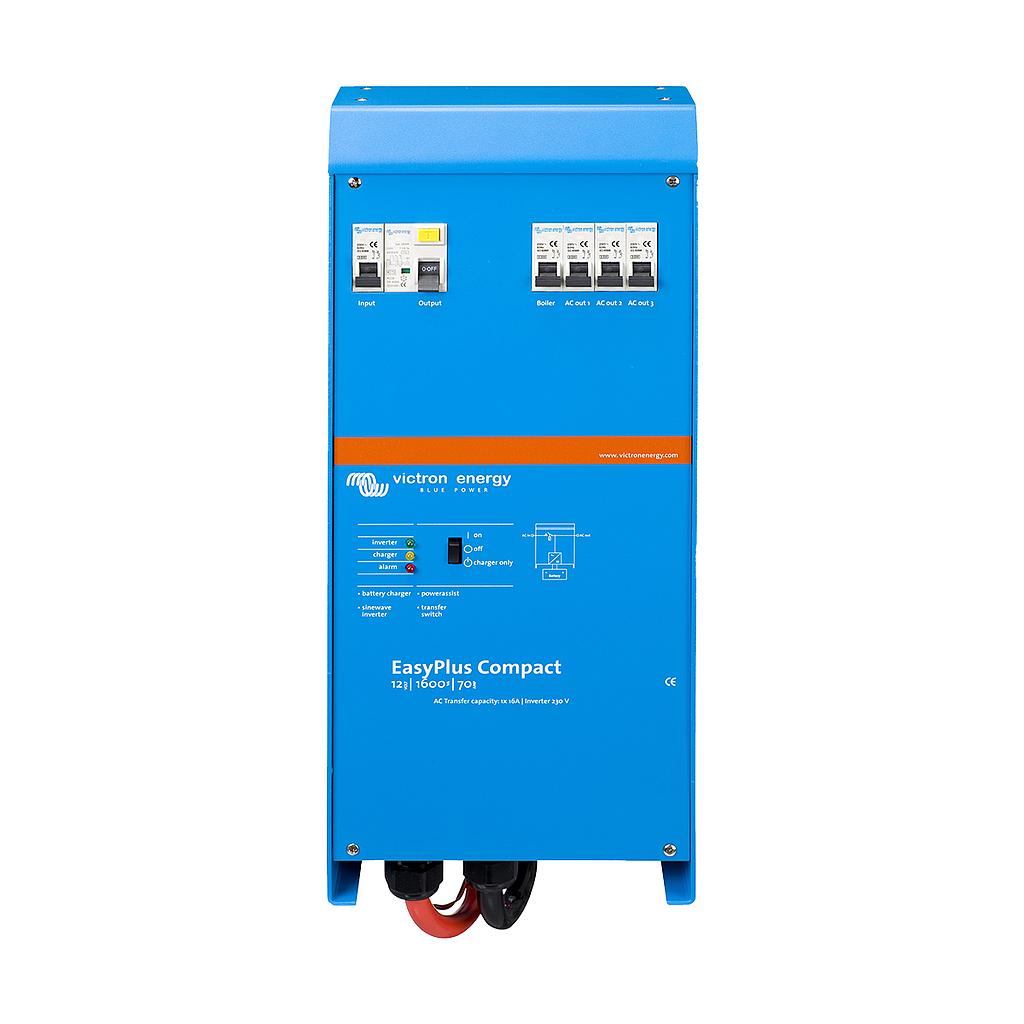

Victron EasyPlus Compact 12/1600/70-16
Victron EasyPlus Compact 12/1600/70-16
Features
- All-in-one solar power solution
- MPPT Solar Charge Controller
- An Inverter/Charger
- High-Speed AC Transfer Switch
- AC Distribution
- PowerAssist Technology
- Solar Application Software
The EasyPlus is a multifunctional energy system consisting of a powerful sine wave inverter, a sophisticated battery charger, a high-speed AC transfer switch and AC distribution in a single lightweight and compact enclosure. The system has been designed for those who want to enjoy the comfort and freedom of a complete energy system without spending time on the installation of separate components and difficult technical procedures.
Optimum comfort and safety:
The EasyPlus guarantees uninterrupted power supply, whenever and wherever you are. Where shore or generator power is limited, the unique PowerAssist technology makes it possible to boost the total capacity by adding extra energy from the batteries. Optimum safety is guaranteed with the integrated RCD (Residual Current Device) protecting against earth leakage
5 Step Installation: Quick and Easy:
The EasyPlus gets its name from the simplicity of installation and use. The system can be installed within five simple steps making significant savings in time as well as space. The EasyPlus provides plugs and sockets for all AC connections and is supplied with the battery cables already fitted so you can save hours in installation time.
Step 1:
Select a suitable place for the EasyPlus (as close as possible to the batteries) and install the wall mounting bracket. Attach the EasyPlus to the bracket and secure it with the screws provided.
Step 2:
Connect the shore/generator input power and the outgoing circuits (including dedicated water heater feed) to the EasyPlus.
Step 3:

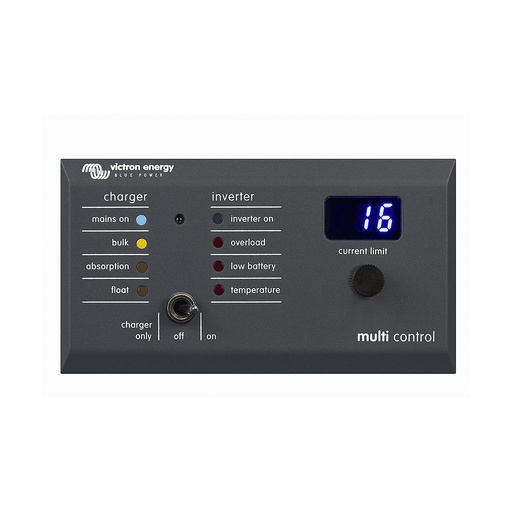

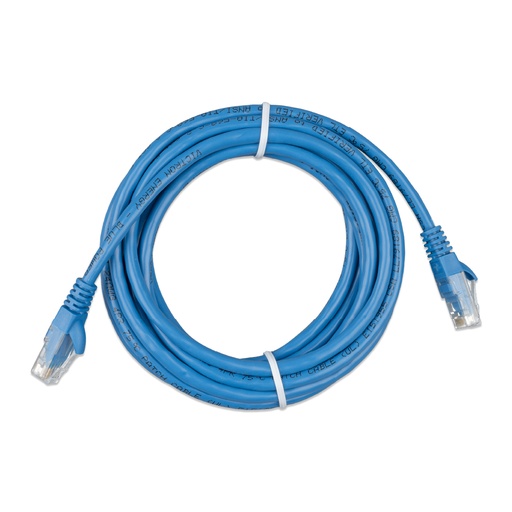

Connect the control panel (optional) with the UTP patch lead.
Step 4:
Connect the battery cables and temperature sensor to the batteries (also supplied as standard).
Step 5:
Switch on the RCD, the AC distribution and the inverter/charger and the system is ready to use.
How does it work?
The EasyPlus is connected to the batteries and to the shore power or generator. The maximum available generator or shore current is set using the dial on the control panel. The power consumers are divided into two groups. The first group consists of the ‘regular’, low or short-term power users such as sockets or kitchen equipment. This group can be fed from both shore/generator and battery power via the inverter. The second group is the ‘heavy user’ circuit. This can be a water heater or air-conditioning. In order to protect the batteries from excessive discharge, this group is shore/generator-only and cannot be supplied when the inverter is functioning. Unique PowerAssist technology protects the shore or generator from being overloaded by adding extra inverter power when needed.
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
