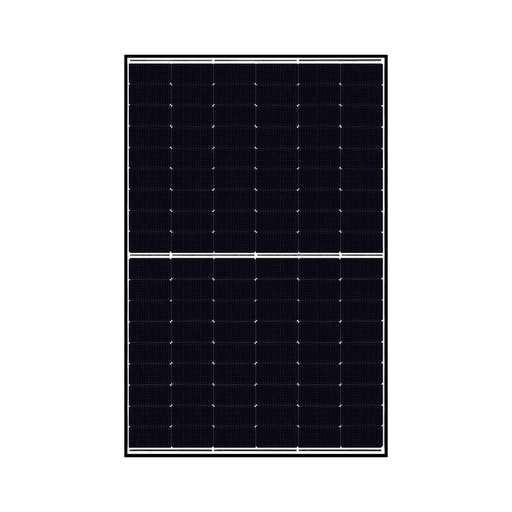

Canadian Solar 460W N-Type Dual Glass TOPCon Monofacial Module

https://www.springers.com.au/web/image/product.template/17637/image_1920?unique=b3349ea

$ 216.38 - Inc GST 216.38 in stock AUD $ 399.00

$ 399.00

Not Available For Sale

Elevate your residential energy solution with the TOPHiKu6 CS6R-T solar panel. With an impressive power output of 440W per panel with 22.5% module efficiency, this cutting-edge technology is tailor-made for a seamless 6.6kW residential installation. Engineered with advanced N-Type cells and TOPCon technology, these panels have a robust 25-year product warranty and an extended 30-year power performance warranty. You can trust in the enduring quality of these panels.

Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield
Lower temperature coefficient (Pmax): -0.29%/°C, increases energy yield in hot climate

    This combination does not exist.

    Contact Us
    CANADIAN
    CS460
    Solar Panels , Fixed Panels

    Canadian Solar 460W N-Type Dual Glass TOPCon Monofacial Module

    High Power

    • Module power up to 620W，module efficiency up to 23.0%
    • No boron-oxygen LID and anti PID, less degradation
    • 16BB cell technology, better light trapping and current collection, higher power output

    High energy yield, low LCOE

    • Low temperature coefficient (Pmax): -0.29%/℃, more energy in hot climate
    • High energy generation
    • Low BOS and LCOE

    Enhanced reliability

    • Minimize cell micro-crack impacts to module reliability
    • Snow loads up to 5,400Pa, wind loads up to 2,400Pa

    Applications

    Marine
    RV's
    Caravans
    Off-Grid Systems
    Tiny Houses
    Cabins

    More about Trina Solar:

    Founded in 1997, Trina Solar is the world’s leading PV and smart energy solution provider. The company engages in PV products R&D, manufacture and sales; PV projects development, EPC, O&M; smart micro-grid and multi-energy complementary systems development and sales, as well as energy cloud-platform operation. In 2019, Trina Solar was rated the World’s Top “Bankable” PV Module Manufacturer by Bloomberg New Energy Finance. Trina Solar won the China Industry Awards in 2018 and became the first PV company to receive this honour. The Company has been ranked as one of the top 3 PV module manufacturing companies in the world.

    Datasheet_Canadian Solar 460W N-Type Dual Glass TOPCon Monofacial Module.pdf
    Download

    Product Specification

    CS6.1-54TD460
    Nominal Max. Power (Pmax)460 W
    Opt. Operating Voltage (Vmp)33.4 V
    Opt. Operating Current (Imp)13.78 A
    Open Circuit Voltage (Voc)39.3 V
    Short Circuit Current (Isc)14.69 A
    Module Efficiency22.50%
    Cell Type TOPCon cells
    Cell Arrangement108 [2 X (9 X 6) ]
    Dimensions1800 ˣ 1134 ˣ 30 mm (70.9 ˣ 44.6 ˣ 1.18 in)
    Weight22.7 kg (50.0 lbs)
    Front Glass1.6 mm heat strengthened glass with anti-reflective coating
    Back Glass1.6 mm heat strengthened glass
    FrameAnodized aluminium alloy
    J-BoxIP68, 3 bypass diodes
    Cable4 mm2 (IEC), 12 AWG (UL)
    ConnectorT6 or MC4 or MC4-EVO2 or MC4- EVO2A
    Cable Length (Including Connector)Portrait: 350 mm (13.8 in) (+) / 250 mm (9.8 in) (-); landscape: 1150 mm (45.3 in)*
    Per Pallet35 pieces
    Per Container (40' HQ)840 pieces
