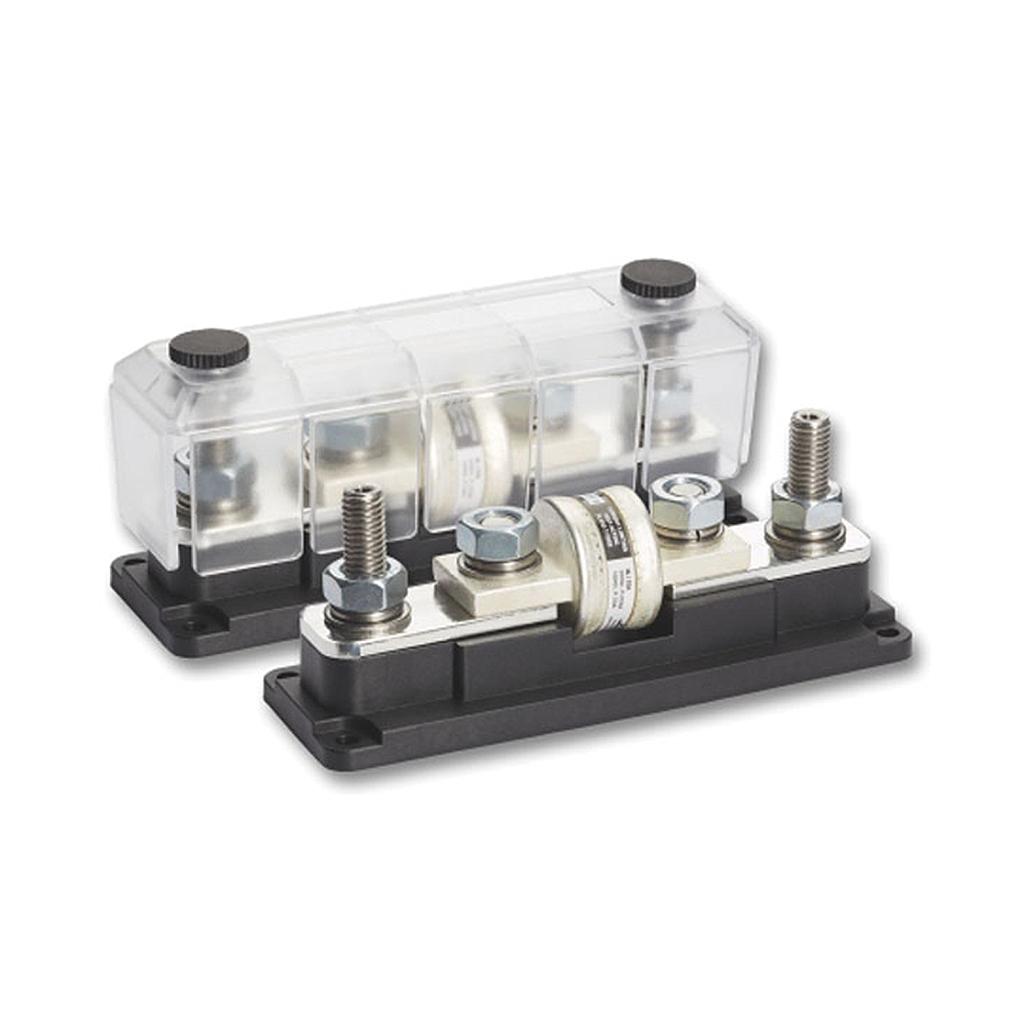

Enerdrive Class-T Fuse Holder 50V/225A-400A
Class-T fuse holder for 225A-400A fuses, M10 studs, 50V
Enerdrive Class-T Fuse Holder 50V/225A-400A
Fuse holder features
- Holds Class-T fuses from 225A to 400A
- M10 connection studs, rated to 50V DC
- Tin-plated high purity copper busses for low resistance and less heat

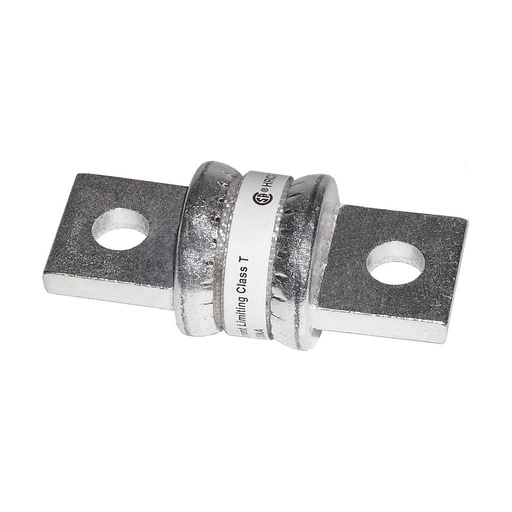

- Takes Littelfuse JLLN, Bussmann/Edison JJN and TJN, and Mersen A3T fuses
DC Modular features
- Stainless steel studs, nuts and washers for corrosion resistance
- Fibre-reinforced base: handles high temperatures, chemicals and vibration
- Clear polycarbonate cover with break-out side skirts for cable entry from any direction
- Mirrored terminal design lets you fit two cable lugs per stud
- Fits the DC Modular grid (1 x 3) and links to busbars and other holders with link plates
Where to use it
Class-T fuses have a very high interrupt rating, so this holder is the right choice to protect the main battery cable on lithium banks and large inverters, where a short circuit can deliver thousands of amps. Use it on 12, 24 or 48V systems in caravans, motorhomes, boats and off-grid battery rooms.
Mount it as close to the battery positive as you can and size the fuse to the cable and inverter. As part of the DC Modular range it lines up with Enerdrive busbars and the ePRO Plus Modular battery monitor and links to them with link plates, so you can build a neat main distribution point.
Warranty
- 5-year Enerdrive warranty
- Access to Springers Solar's warranty support team
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
