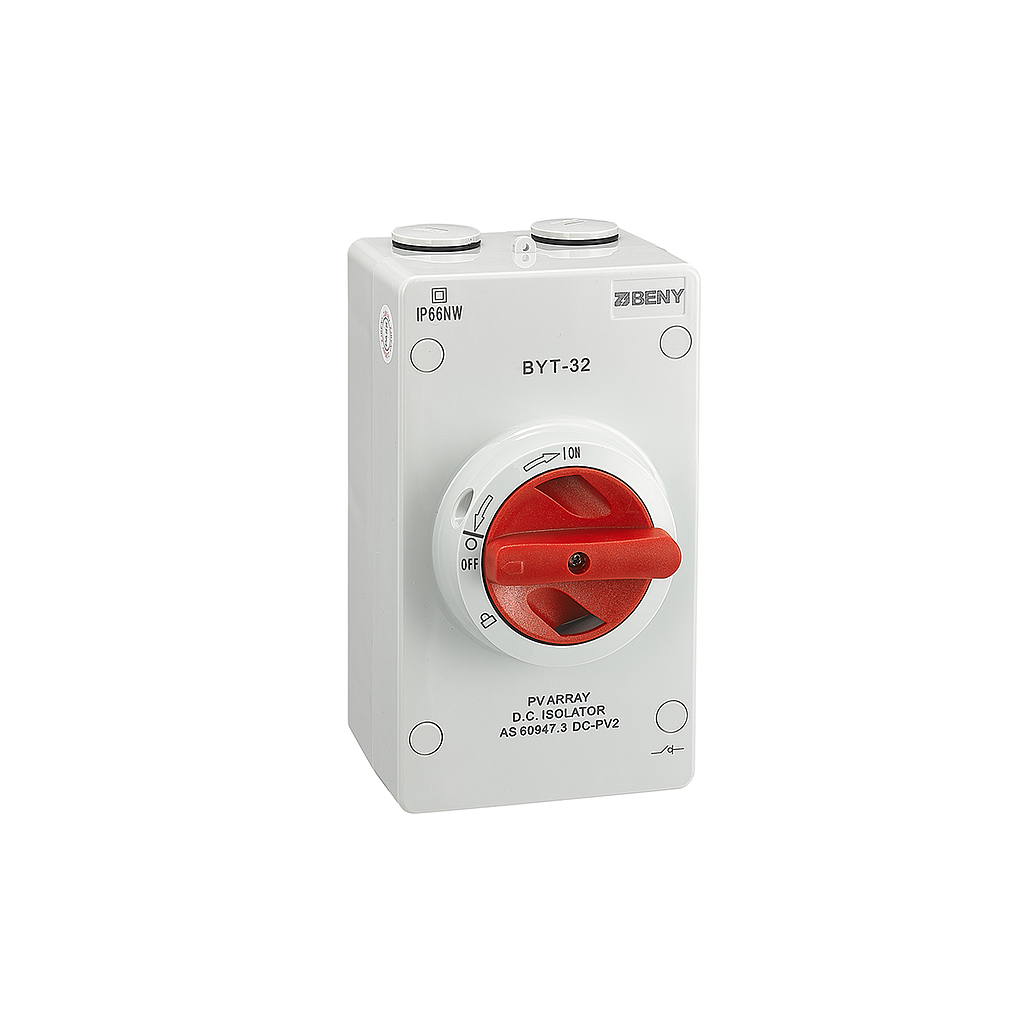

Beny 4 Pole DC isolator:
DC isolating switches must now have a valid certificate of conformity confirming the product complies with AS 60947.3:2018 in Australia. The brand and all relevant models must be registered to the responsible supplier in the EESS national database and be marked with the regulatory compliance mark (RCM). BYT-32 is the first DC isolator compliant with the newest AS 60947.3:2018 DC-PV2 standard. Now ZJBENY is the most widely used and popular brand in Australian solar PV installations and worldwide.
IP66 1200V 32A true DC isolator switch BYT-32, shall be installed between the solar arrays and solar inverter. For isolation of the PV array during system installation or any maintenance. The switch must be rated for system voltage (1.15 x string open circuit voltage Voc) and current (1.25 x string short circuit current Isc).
BYT Series DC Isolator Switch in plastic enclosure is applied 1~20KW Residential or Commercial Photovoltaic system, placed between photovoltage modules and inverters. Arcing time less than 3ms, that keep solar system more safe. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage up to 1200V DC It holds a safe lead among similar products.
Features:
- IP66 at vertical and horizontal installation
- The first DC isolator to AS 60947.3:2018 DC-PV2
- UV resistant and flame retardant technology
- Breathing valve on each isolator
- With anti-counterfeit label for original ZJBENY
- 2 Pole, 4 Poles Available(Single | Double String)
- DC-PV2 / DC-21B: 32A up to 1200VDC
*Isolator bracket sold separately
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about ZJ Beny:
BENY New Energy, founded in 2011, is a global leader in manufacturing protective components for the renewable energy industry. With a wealth of experience and expertise in the field, the company provides value at every level of the solar supply chain, catering to homeowners, businesses, electricity producers, and renewable energy investors worldwide.
In addition to its protective components business, BENY is also a leading provider of EV chargers and microinverters. Leveraging its 30-year track record of power electronics technology, the company is well-positioned to design and manage durable and reliable charging products. BENY's integrated charging solution features high protection capability, premium efficiency, and many other user-friendly innovative technologies.
