Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC + Alvolta 220W Portable Solar Kit

https://www.springers.com.au/web/image/product.template/18134/image_1920?unique=f604af6

$ 12,596.85 - Inc GST 12596.85 in stock AUD $ 11,997.00

$ 11,997.00

Not Available For Sale

Features:
• 3000W/100A Inverter Charger Unit
• 12V 300Ah Slimline Lithium Battery
• 220W Ultra Slim Portable Solarcase

    This combination does not exist.

    Rating :
    Online Only
    Contact Us
    ENERDRIVE
    K-V3T01-02-ALV-220SP
    KITS & BUNDLES , Enerdrive Bundles , Alvolta Bundles

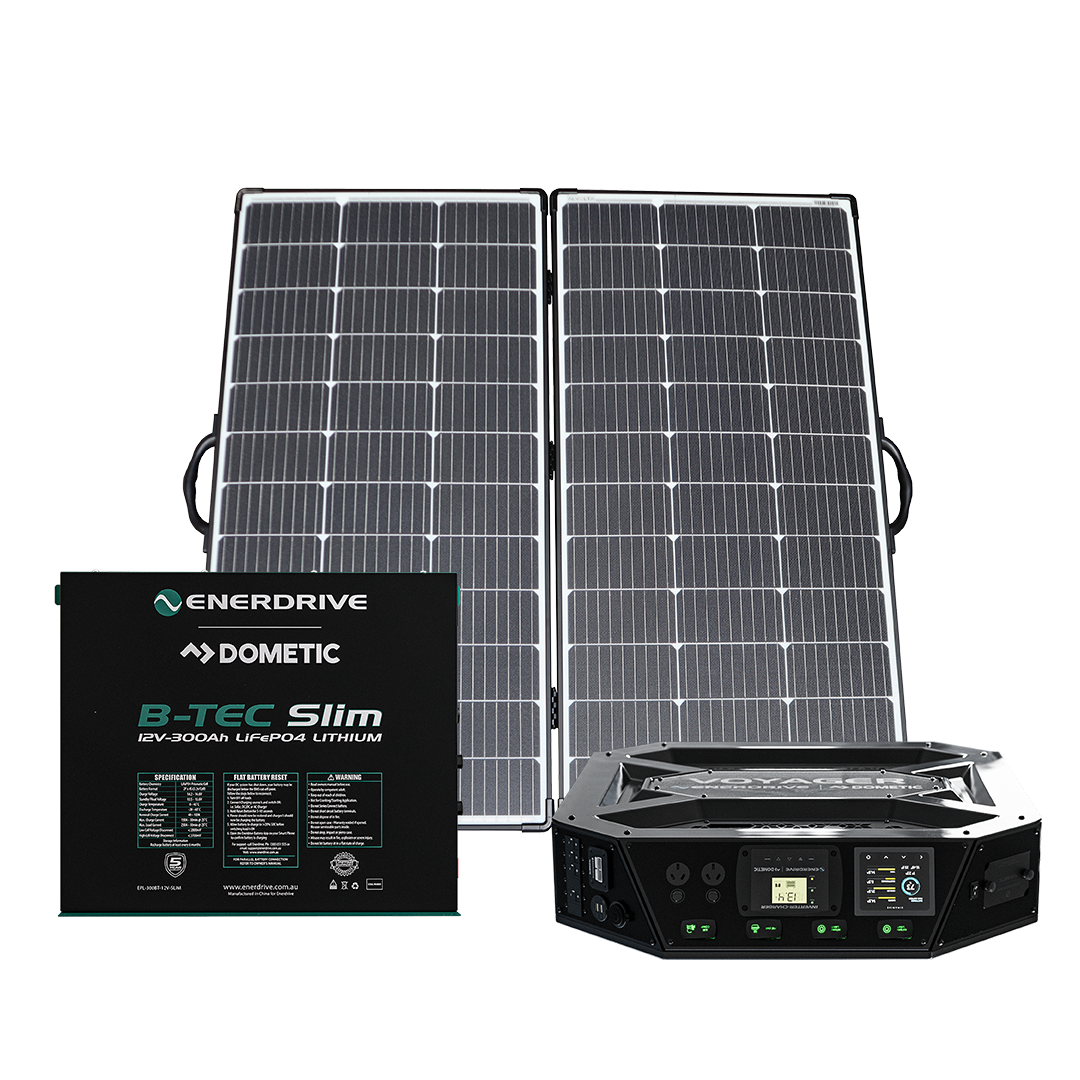

    Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC + Alvolta 220W Portable Solar Kit

    Components:


    Featuring the Enerdrive Voyager Power System, Enerdrive 300Ah B-TEC Slim Lithium Battery and Alvolta 220W Ultra Portable Solarcase, this kit is the ultimate off-grid portable power solution. Designed by industry-leading manufacturers and cultivated by our team of experts, this portable off-grid power kit offers a complete solution for any camper, caravan or 4WD application.

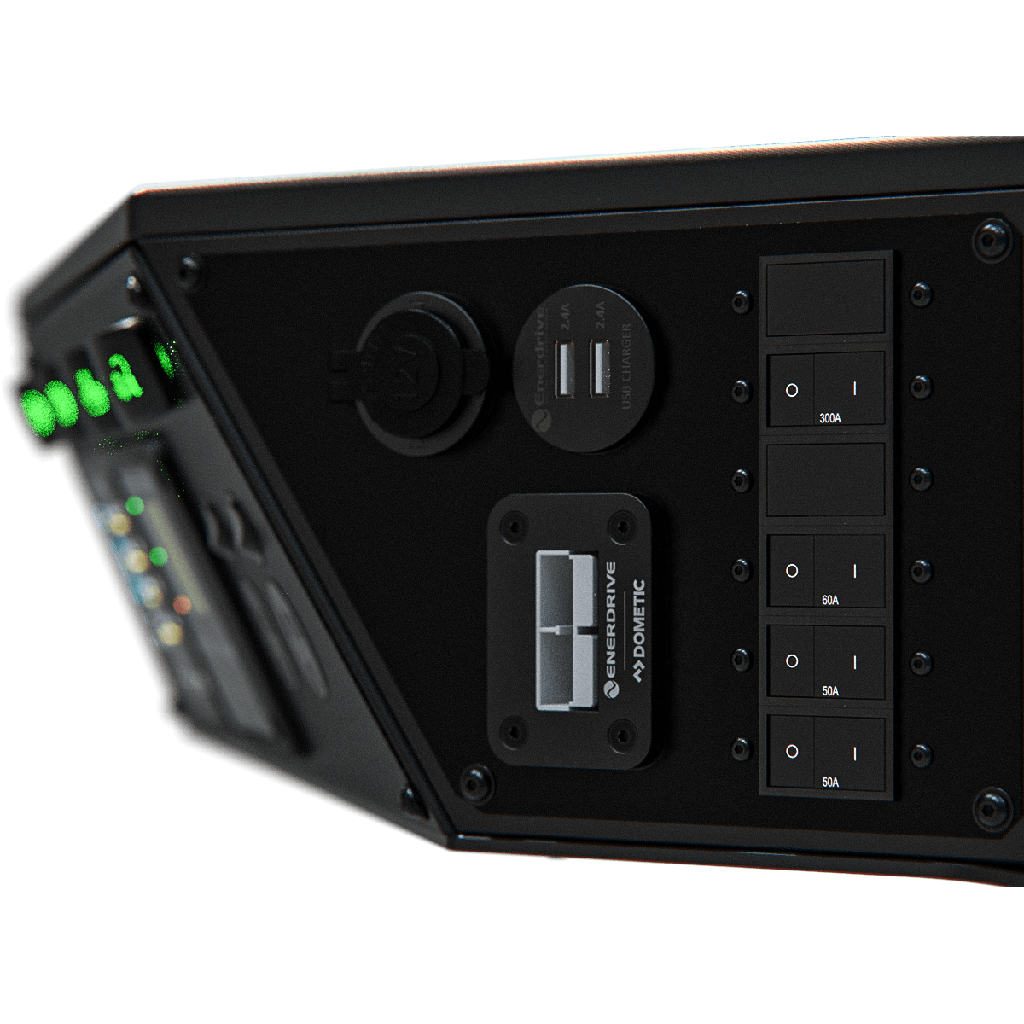

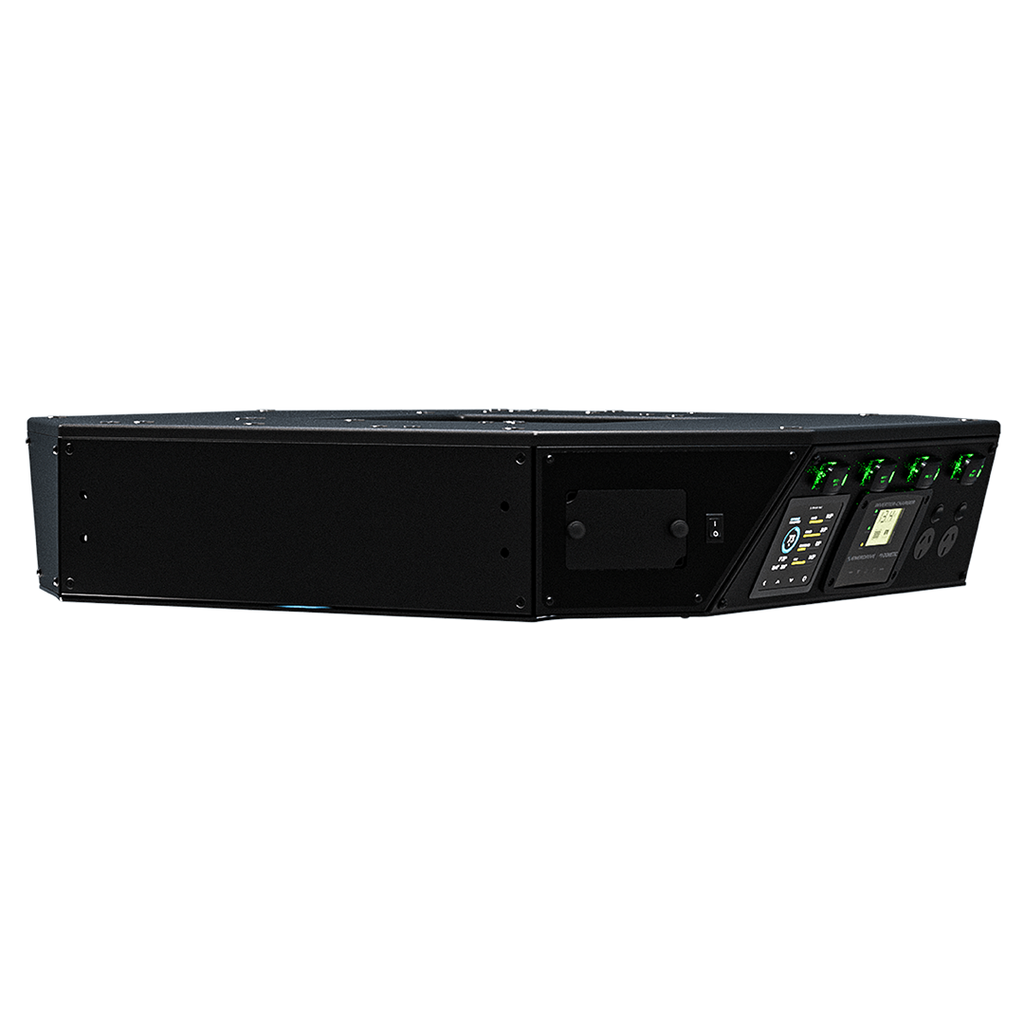

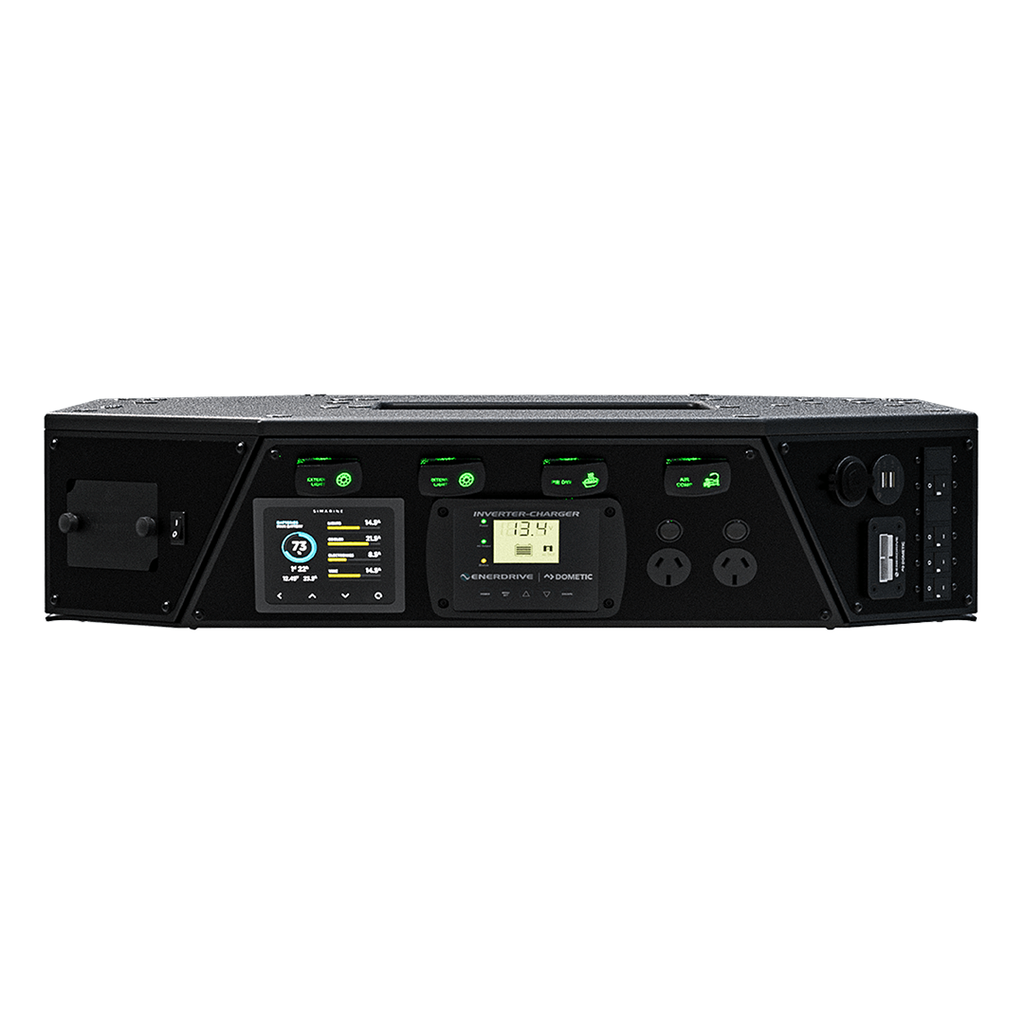

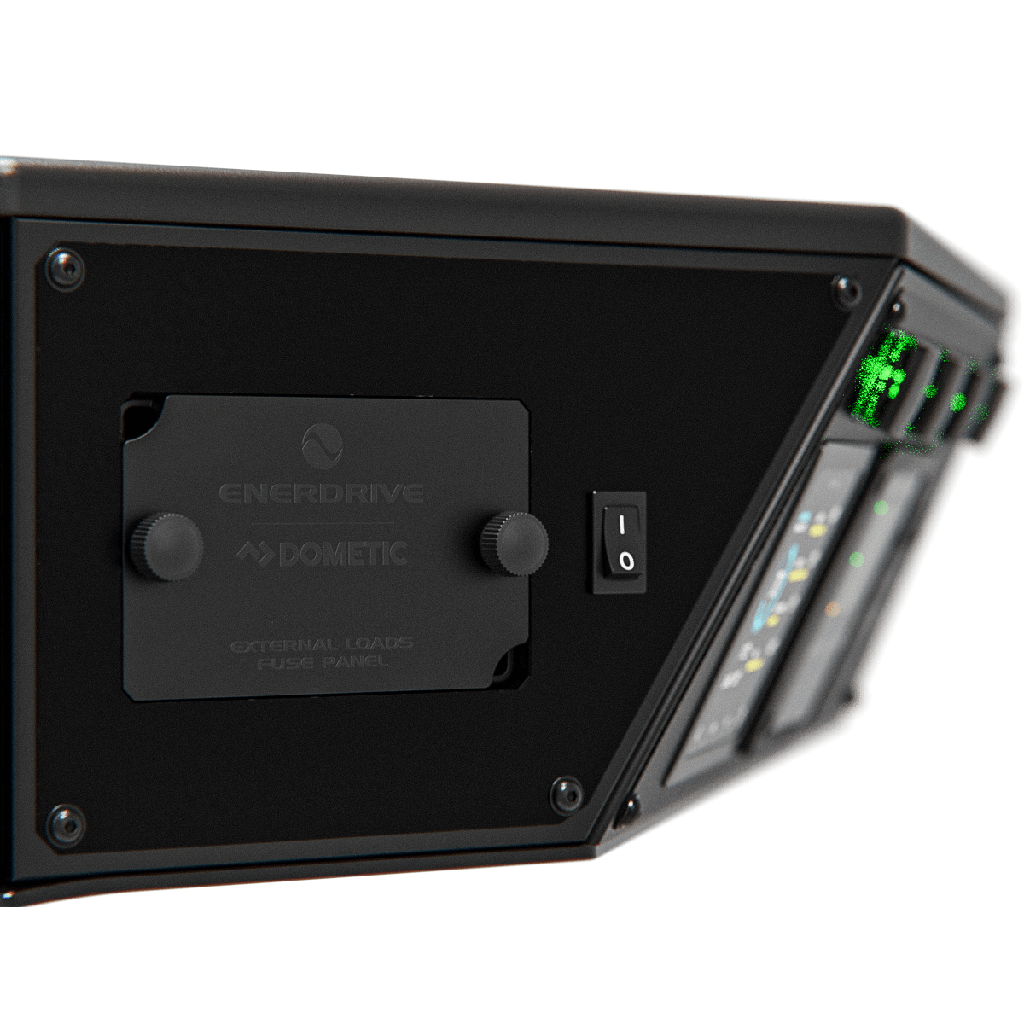

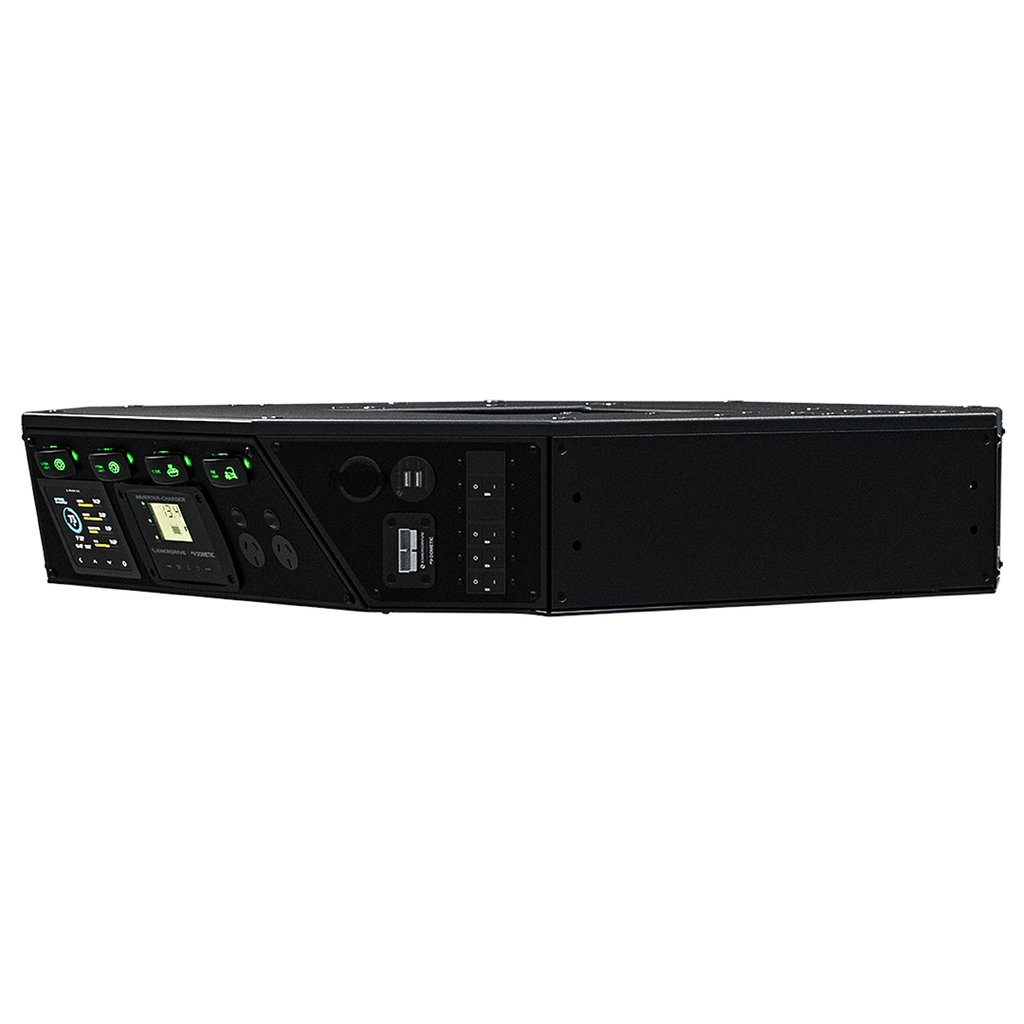

    Enerdrive’s Voyager Power System is the foundation for this kit, offering an all-encompassing power solution. Designed to effortlessly fit into your setup, the Voyager features a sleek, octagonal design with access to all the important components in the front-facing panel, allowing you more space within your setup. The Voyager system offers multiple outputs, allowing the system to charge appliances that use up to 3000W of power.

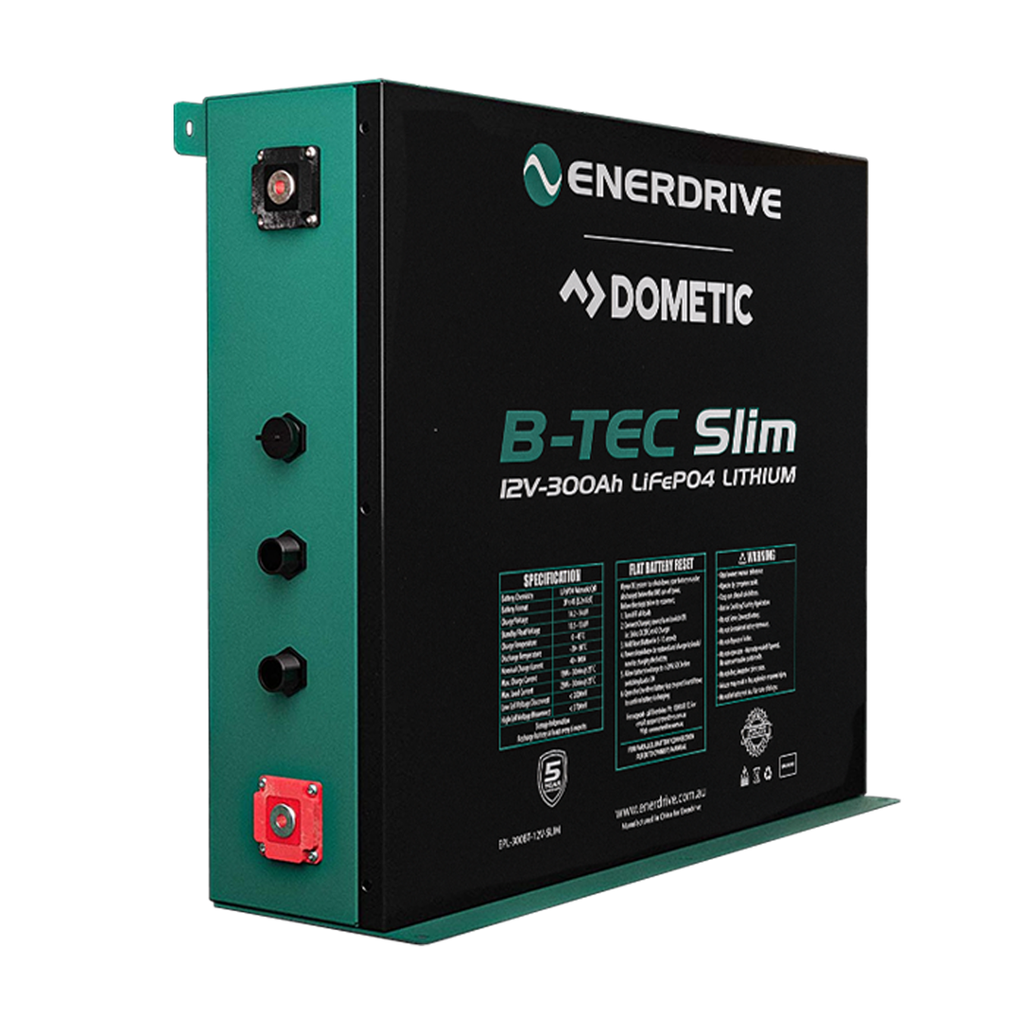

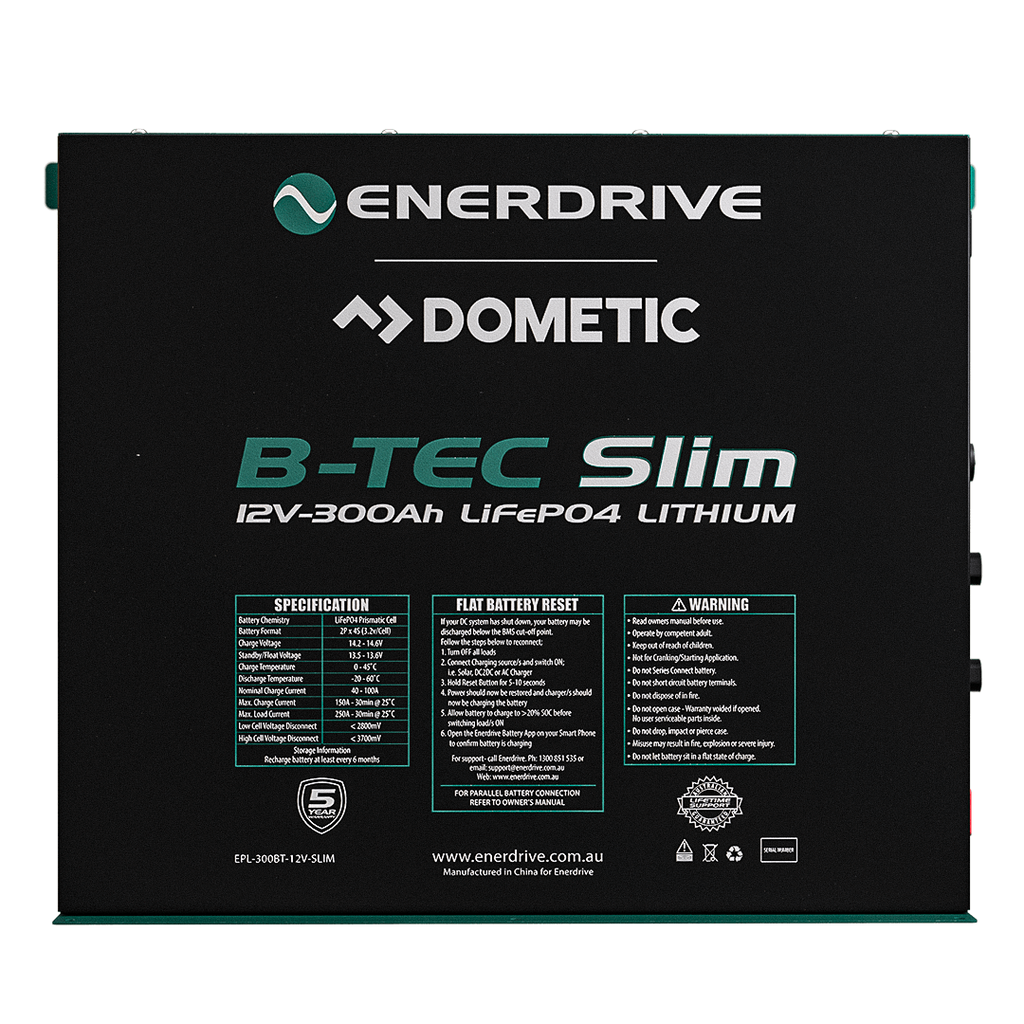

    This power system seamlessly pairs with Enerdrive’s 300Ah B-TEC Slim Lithium Battery. Designed for use in deep cycle applications, this battery is perfect for camper trailers, 4WDs (AUX battery) and caravans. Similarly to the Voyager system, this battery features a slim design, minimising the space it takes up in your setup. Additionally, the 300Ah B-TEC Slim Lithium Battery offers built-in Bluetooth capability and features an Internal Battery Management System (BMS) for easy monitoring.

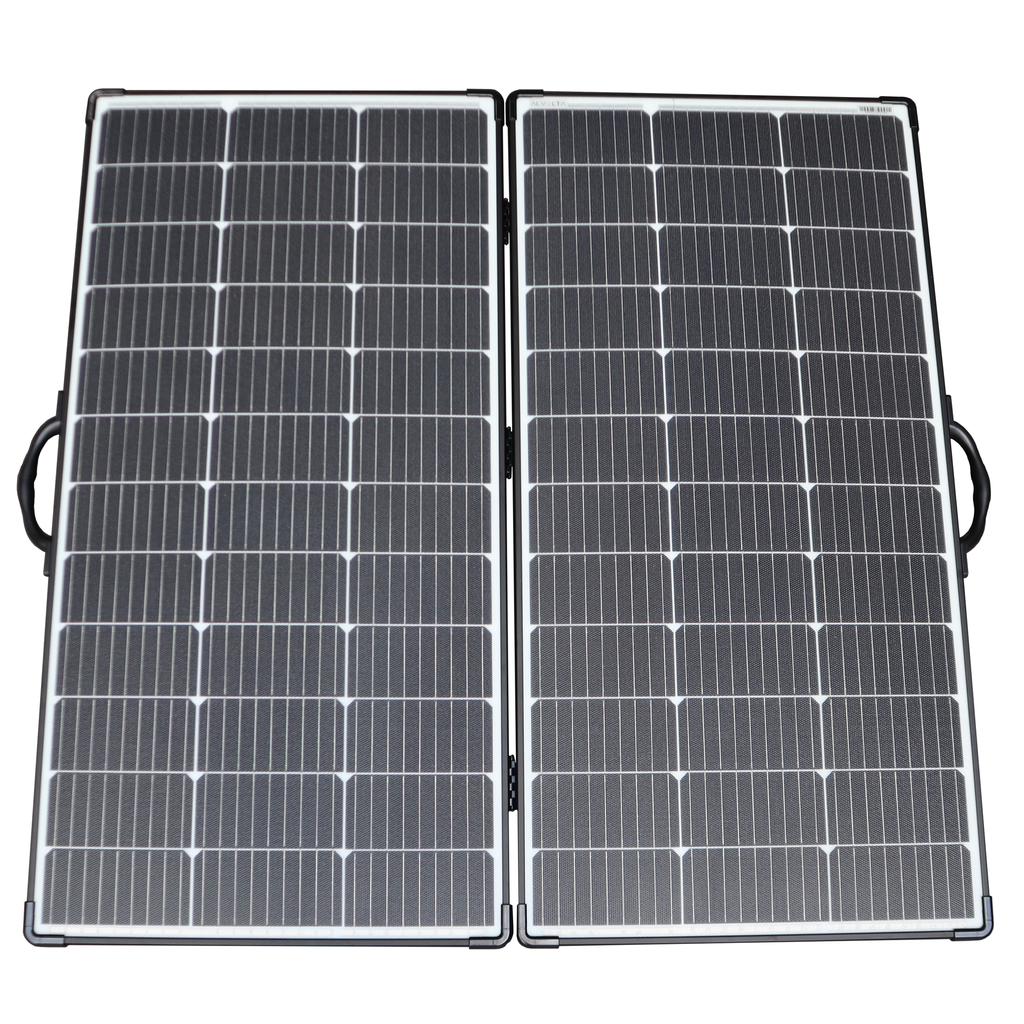

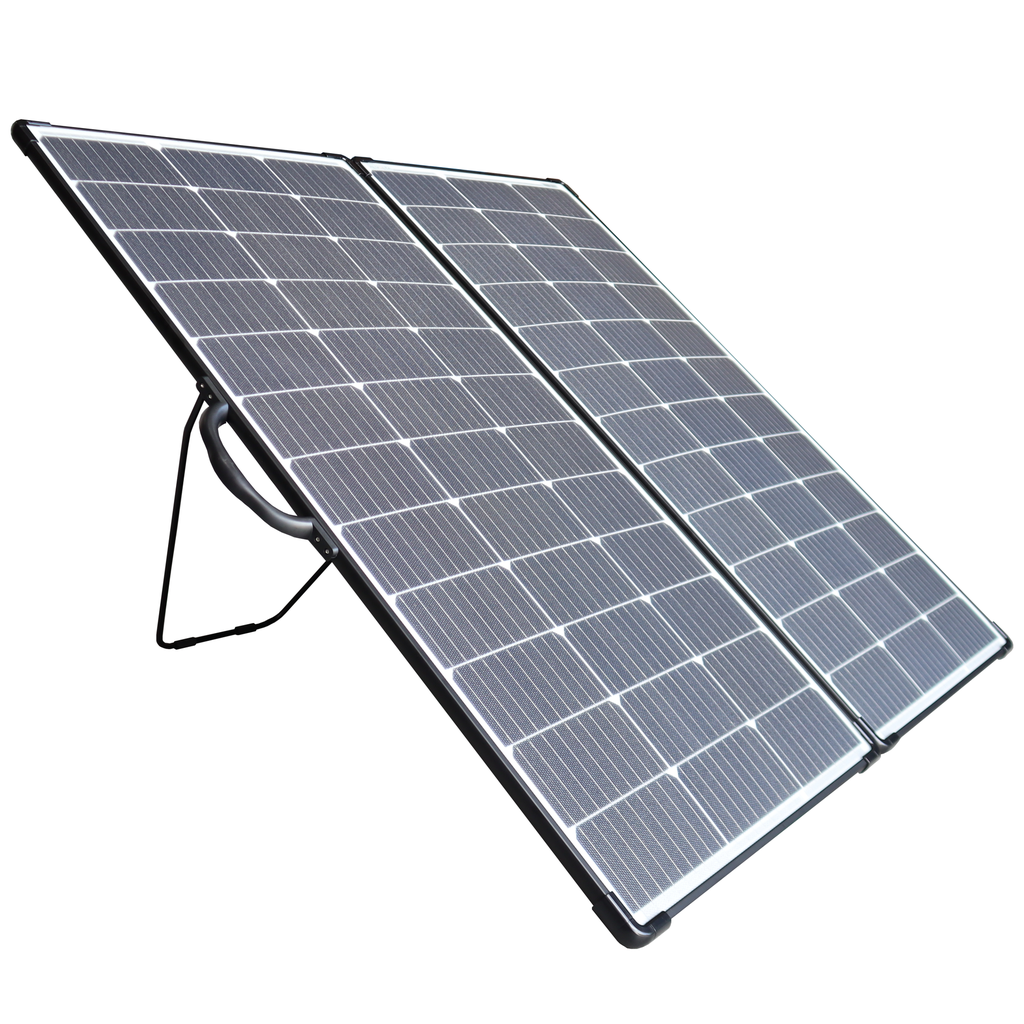

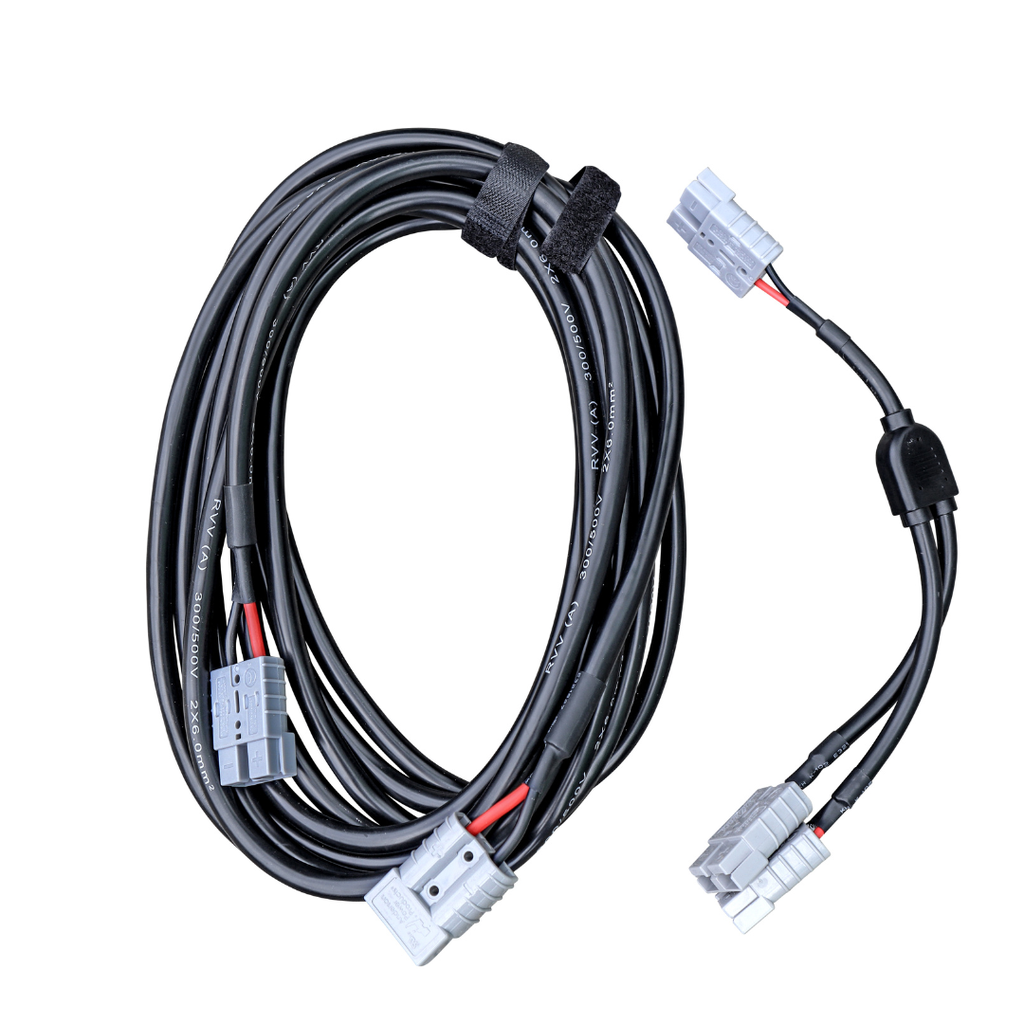

    The kit is rounded out with the 220W Portable Solarcase from Alvolta. Featuring top-tier monocrystalline solar cells in a lightweight, compact and sleek frame, this ultra high-powered solarcase is a must-have for off-grid power. Additionally, the solarcase and included cabling accessories each come in a protective carry case, making it easy, safe and convenient to travel with.

    Our ultimate off-grid portable power kit offers you a complete power station, allowing you to confidently travel off-grid for longer.


    Applications

    Marine
    RV's
    Caravans
    Off-Grid Systems
    Tiny Houses
    Cabins
    Datasheet_ALV-220SPC.pdf
    Download
    Datasheet_B-TEC 12V 300Ah Slimline Lithium Battery.pdf
    Download
    Brochure_The Voyager Power System.pdf
    Download

    Product Specifications

    Voya​ger (Top)
    DC Battery Charger12V 40A+ DC2DC Battery Charger (Vehicle/Solar)
    AC Battery Charger12V 100A AC Battery Charger
    Solar Charge InputIncluded
    Lithium Battery ReadyIncluded
    Inverter3000W/100A Inverter-Charger
    Battery MonitorSimarine LCD Touch Screen WiFi Battery Monitoring System
    Pre-Wired Circuit Breakers for Main Power EquipmentIncluded
    Switches4 x Contura Water Resistant Rocker Switches (Customisable)
    USB Output SocketsTwin USB-A 2.4A Hi Amp Sockets
    Cigarette Socket Output1
    Anderson Plug Socket Output1
    RCD Protected Power Point2
    Individual Load/Charge ModuleIncluded for Simarine SI-SCQ50
    Water/Fuel Tank Monitoring2x Resistance Inputs Included for Simarine SI-SCQ50
    Load Output 50A Circuit BreakerIncluded
    Ignition Input for Smart Alternator Equipped VehiclesIncluded. Requires Connection
    3000W Inverter 300A Input Circuit BreakerIncluded
    Dimensions830W x 700H x 155D mm
    Weight28.5kg
    OrientationLeft
    Warranty5-Years

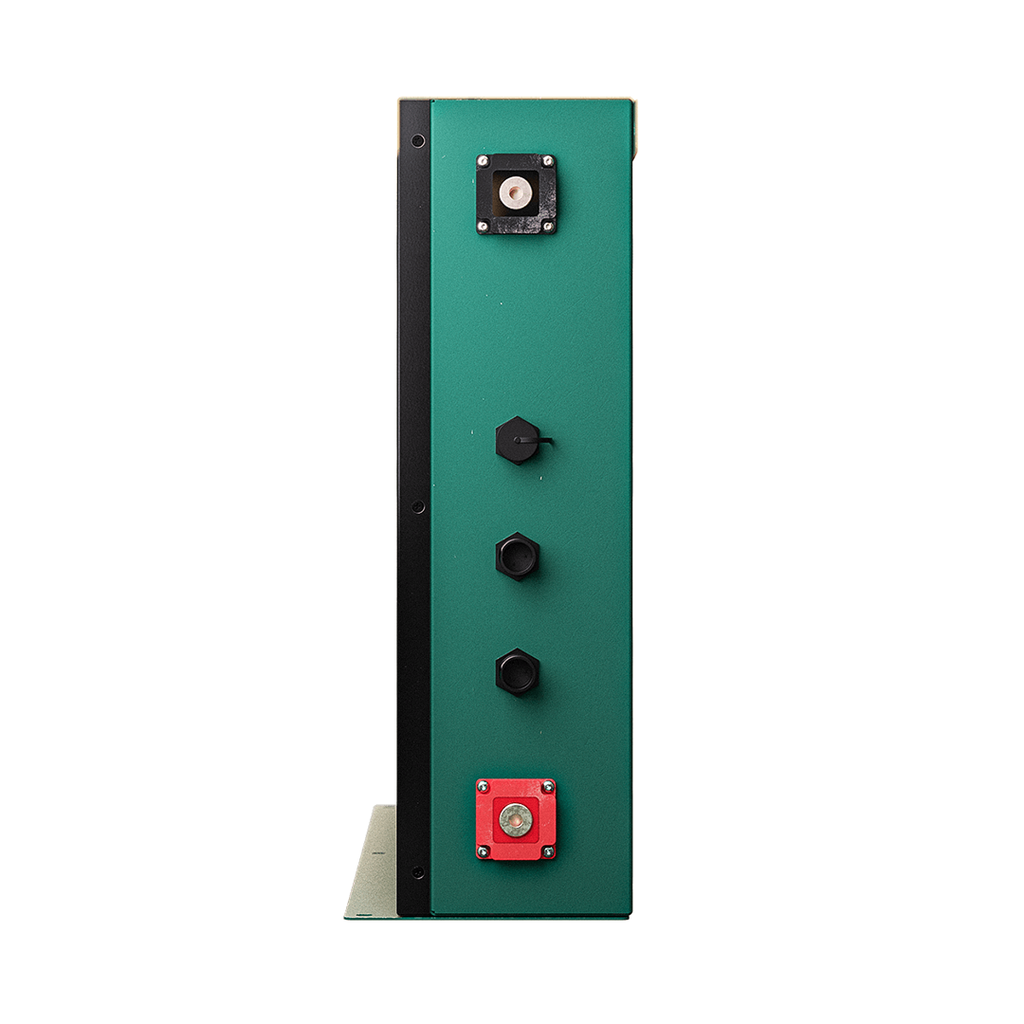

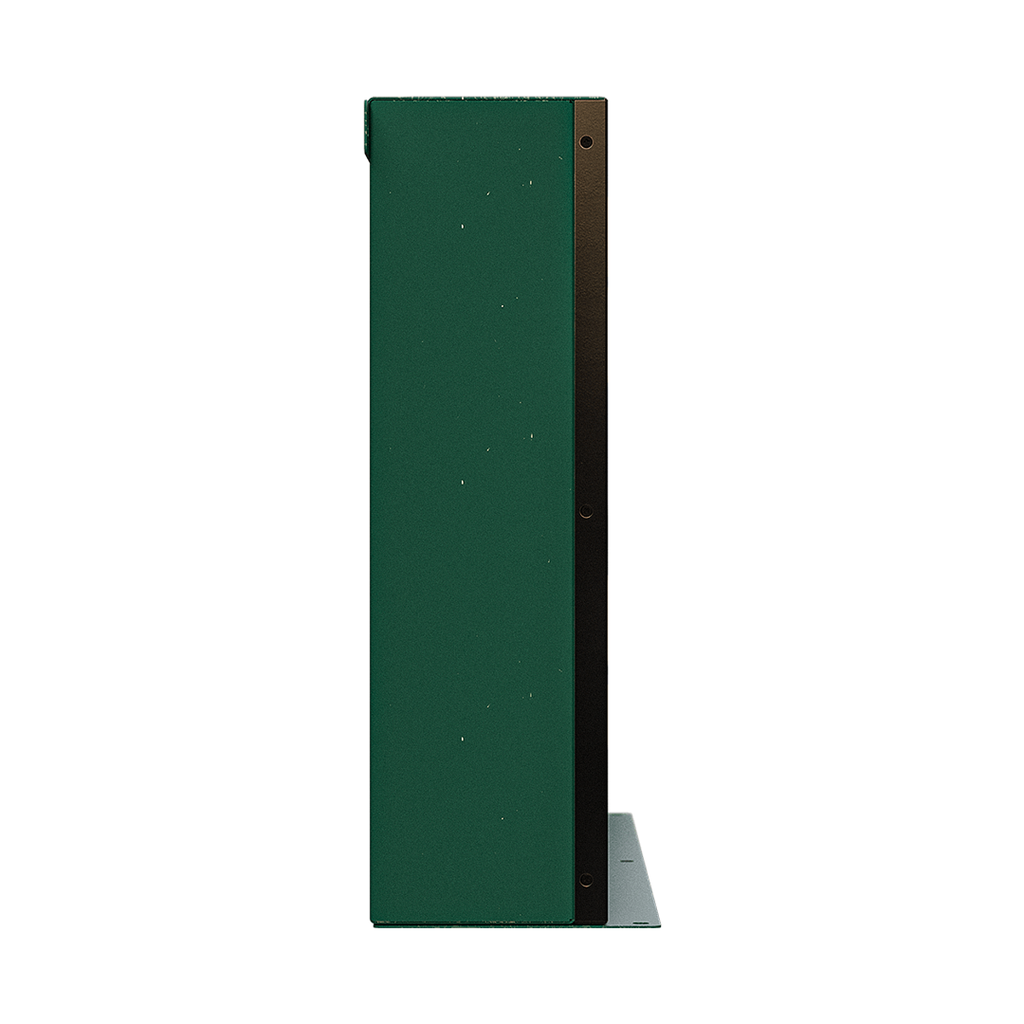

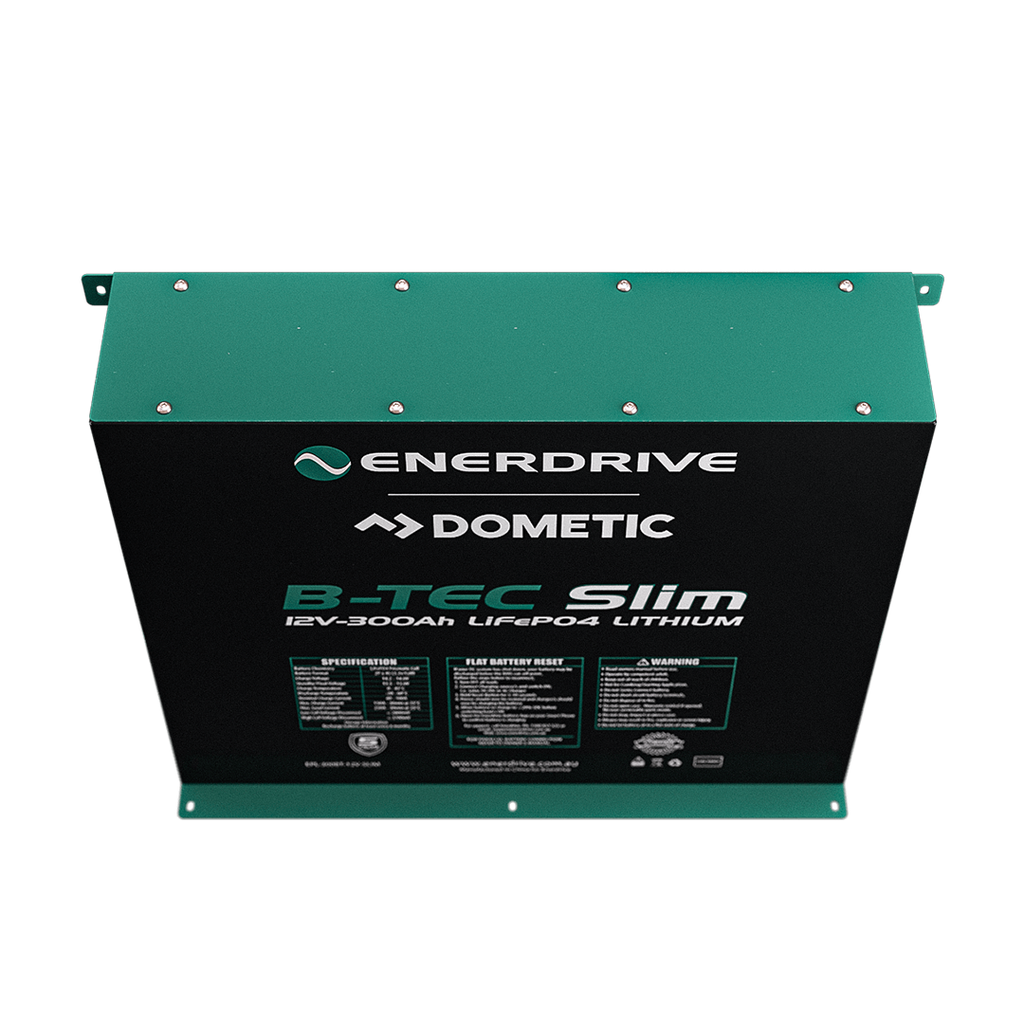

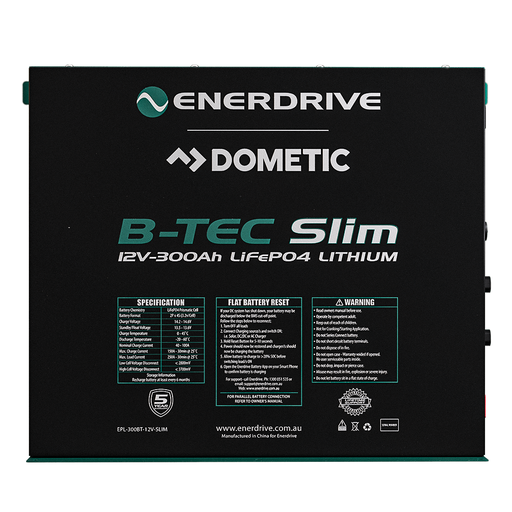

    300Ah B-TEC Slimline Lithium Battery​
    Nominal Voltage12.8V
    Nominal Capacity300Ah
    Charge Cycles (DOD - 80%)>2500 Cycles
    Charge Specifications
    Battery Charge Temperature0 - 45°C
    Nominal Charge Voltage14.2 - 14.6V
    Standby Voltage (Float)13.5 - 13.8V
    Maximum Charge Current150A at 25°C for 30mins
    Recommended Charge Current for Maximum Life60 - 120A
    Discharge Specifications​
    Battery Discharge Temperature-20 - +60°C
    Battery Output Voltage Range11.0 - 14.6V
    Maximum Discharge Current250A at 25°C ± 5°C for 30mins
    Pulse Discharge Current450A for 1sec
    Discharge Cut-off Voltage<11.2V
    Circuit ProtectionThe battery is supplied with a LiFePO4 Battery Management

    System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

    Over-Charge Protection
    Over-Charge Protection per Cell3.75V ± 0.03V
    Over-Charge Release per Cell3.60V ± 0.05V
    Over-Charge Release MethodDischarge Below Release Voltage
    Over-Discharge Protection​
    Over-Discharge Protection per Cell2.80V ± 0.05V
    Over-Discharge Release per Cell3.20V ± 0.05V
    Over-Discharge Release MethodApply Charge/Voltage >12.8V
    Over Current Protection​
    Discharge Over Current280A for 25sec - 400A for 3.5sec
    Protection Reset Time5sec Auto Release
    Over Current Release MethodDisconnect Load
    Over Temperature Protection​
    Battery Discharge Over Temperature ProtectionTo 65°C ± 5°C
    Battery Discharge Over Temperature ReleaseAt 50°C ± 5°C
    Battery Charge Over Temperature ProtectionTo 55°C ± 5°C
    Battery Charge Over Temperature ReleaseAt 45°C ± 5°C
    Short Circuit ProtectionAuto Release After 5sec
    Mechanical Specifications​
    Dimensions630L x 498H x 176.5D mm
    Weight48kg
    Case ConstructionPowder-Coated Zinc Plate
    Storage Information​
    Temperature Range<30 days: -20°C - +60°C
    >30 days: -10°C - +45°C
    Humidity Range5 - 75% Relative Humidity
    Warranty5-Years
    220W Solarcase
    Electrical Data
    Maximum Power220W
    Optimum Operating Voltage
    		20.9V
    Optimum Operating Current
    		10.53A
    Open Circuit Voltage
    		24.5V
    Short Circuit Current
    		11.05A
    Module Efficiency22.8%
    Maximum System Voltage200V DC
    Power Tolerance
    		±3%
    Thermal Data

    Operating Temperature Range
    		-20°C to +70°C
    Temperature Coefficient (Pmax)-0.38%/°C
    Temperature Coefficient (Voc)-0.36%/°C
    Temperature Coefficient (Isc)-0.05%/°C
    Mechanical Data
    Solar CellsMonocrystalline 166mm Cells
    No. of Cells72 (3 x 12 x 2)
    Dimensions1095 x 1072 x 25mm
    Weight6.33kg
    FrameAnodized Aluminium
    Junction BoxIP68 Rated
    ConnectorsMC4 Style
    Output Cables4mm², 900mm
