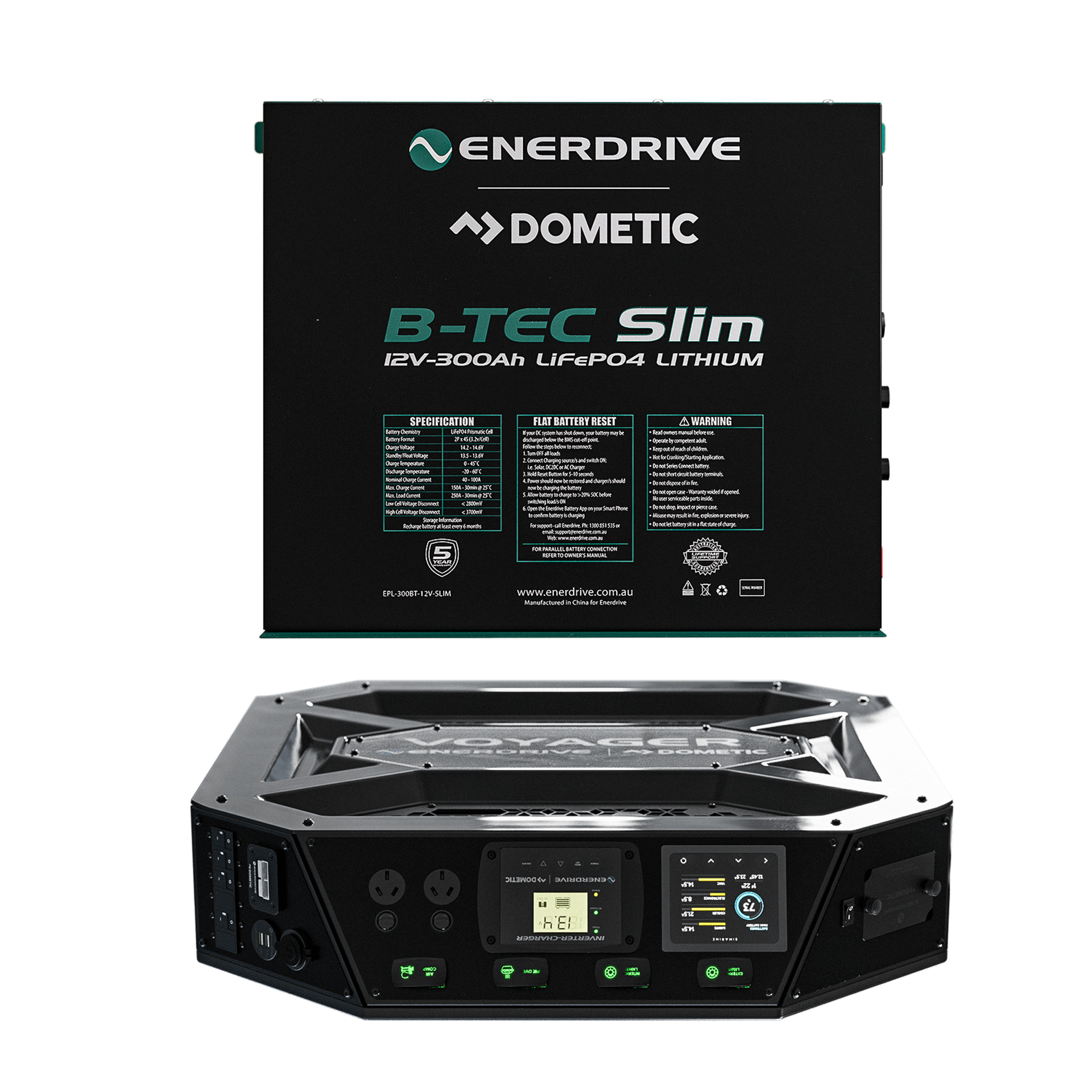

Enerdrive Voyager System (Top) 3000W Inc. 300Ah Slim B-TEC
Voyager System Features:
- 3000W/100A Inverter Charger Unit
- Charge via a vehicle input, solar, or mains power:
- Suitable for appliances that use up to 3000W of power
- Easily monitor the system with the in-built Simarine Battery Monitor
- Intelligent face panel design
- 830 x 700 x 155mm
300Ah B-TEC Slim Battery Features:
- 12V 300Ah Slimline Lithium Battery
- >2500 Charge Cycles @ 80% DOD
- Bluetooth Monitoring via Phone App
- Built-in Reset Button making re-starting a flat battery a breeze
- 680 x 498 x 176.5mm
Voyager Power System – the most powerful canopy system Enerdrive have ever built.
Through extensive research on new manufacturing methods and hundreds of hours of physical prototype testing, Enerdrive has developed an all new canopy system. Featuring their new 3000W/100A Inverter-Charger unit, paired with their B-TEC range of batteries, the Voyager leads the charge in delivering truly next-generation off-grid power capabilities.
Complete Accessibility
The Voyager has been designed and built to give you access to every part of the build you may need without the hassle of finding tools to remove bulky covers or shifting everything within the canopy to access the side of your system.
All of your loads connect via the custom flush mounted 1 in, 12 out fuse panel at the top of the system, main system breakers are located at the bottom of the system and a subtle finger hole in the bottom grill gives you access to the Combi’s RCD reset switch.
Designed to Maximise Your Space
The Voyager has been designed to make use of all available space in your canopy build. The octagonal shape allows you to push the Voyager closer to the door return on your canopy while still allowing access to the fuse panel when needed. The most prominent design feature of Voyager is the angled display panel. This panel allows you to read and access your instruments with greater ease no matter the orientation or mounting location.
Hand Built Locally by the Experts in Mobile Power Solutions
The Voyager is completely built and wired in-house at Enerdrive’s Brisbane facility using only the best components to guarantee that every system meets our incredibly high standards. ENERDRIVE | DOMETIC Accessories Range components provide the ultimate in accessibility, with every system coming as standard with its own ‘1 in/12 out’ fuse block, an individually monitored Anderson Plug outlet and 2 x 12V socket outlets.
More Voyager Features:
- Charge via a vehicle input, Solar or Mains Power:
- Vehicle: 12 or 24v 40A+ Output
- Solar (DC2DC): up to 45V/800W
- Mains 240V: 100A Charging
- Inverter suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more
- Monitor battery, loads, charge input, and water/fuel tanks via the Simarine battery monitor or your mobile devices
- Custom rocker switches available
- Intelligent face panel design gives you access to:
- 4 x Customisable laser-etched rocker switches
- 1 x 12v DC Cig Socket
- 1 x Dual USB-A + USB-C (Max. Output Power 100W) sockets come standard.
- 1 x Anderson plug socket
- 1 x Twin RCD-protected Power Point
- 1 x (Optional) Inclinometer
- 8 x ATO (Blade fuses) for easy sizing of your circuit protection
Enerdrive | Dometic B-TEC LiFeP04 12v 300Ah Slimline Lithium Battery
The new 300Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low-power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
The B-TEC Slimline battery is able to be paralleled to a second B-TEC 12V 300Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.
The 300Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery. The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
More B-TEC Slim Features:
- Extremely compact size W 630 x H 498 x D 176.5 mm.
- All connection points for the battery are at one end including all Comms Ports and Reset Port.
- Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
- Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
- Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.
Smart Phone Monitoring System
The Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
- Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from overcharge, over discharge, over-temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.
Please note that B-TEC batteries must not be installed:
- In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
- In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
- Inside compartments dedicated to carrying gas.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use only.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More About Enerdrive
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
