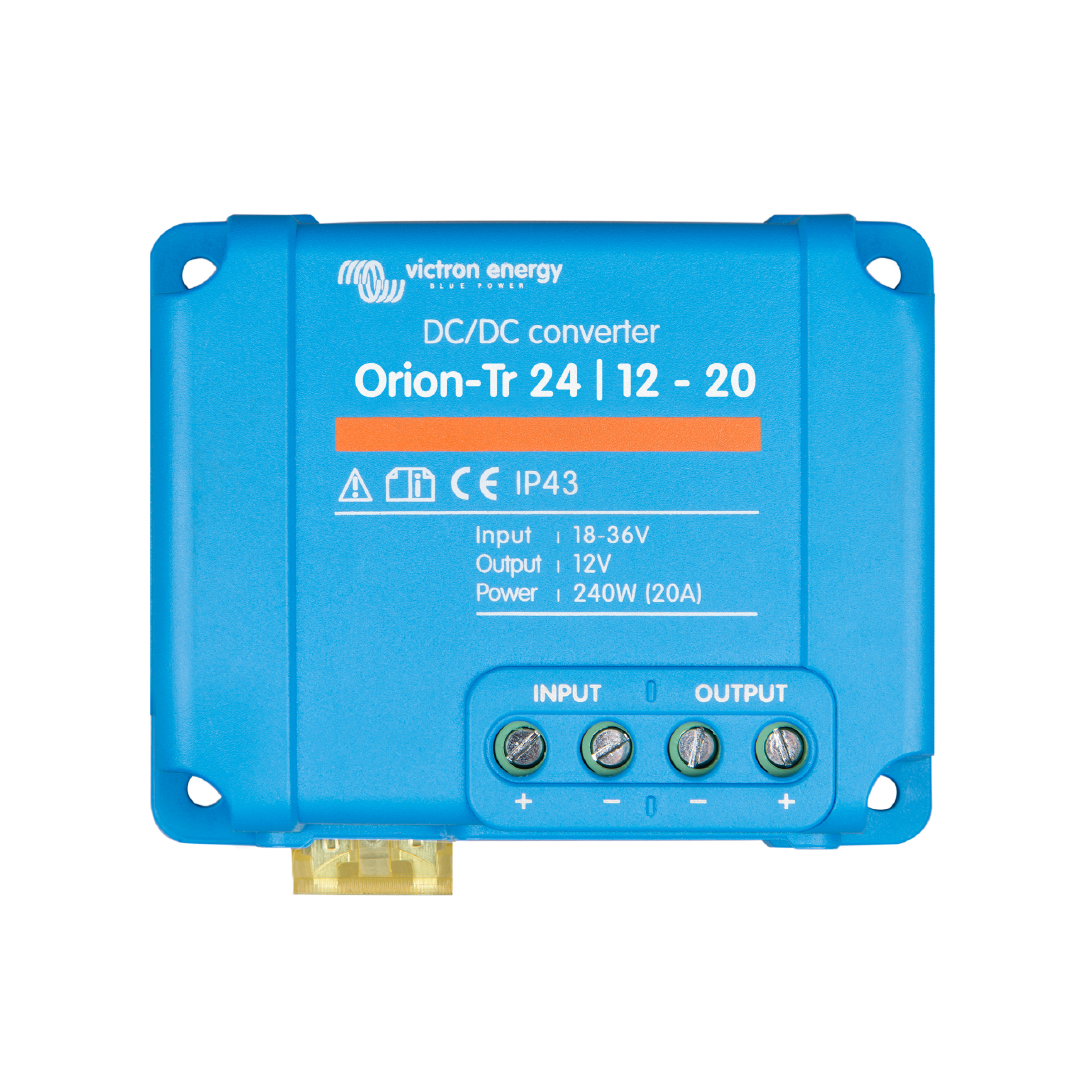

Orion-Tr 24/12-20A DC-DC Converter
Features:
- 24V - 12V / 20Amps
- Smart DC-DC Charger
- Built-in Bluetooth
- IP43 Protection
- Easy Installation
High Efficiency:
Using synchronous rectification, full load efficiency exceeds 95%.
Remote On/Off:
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short-circuit proof and can be paralleled to increase the output current. An unlimited number of units can be connected in parallel.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Applications:
Marine
RV's
Motor Homes
4WD
Motor Vehicles
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
