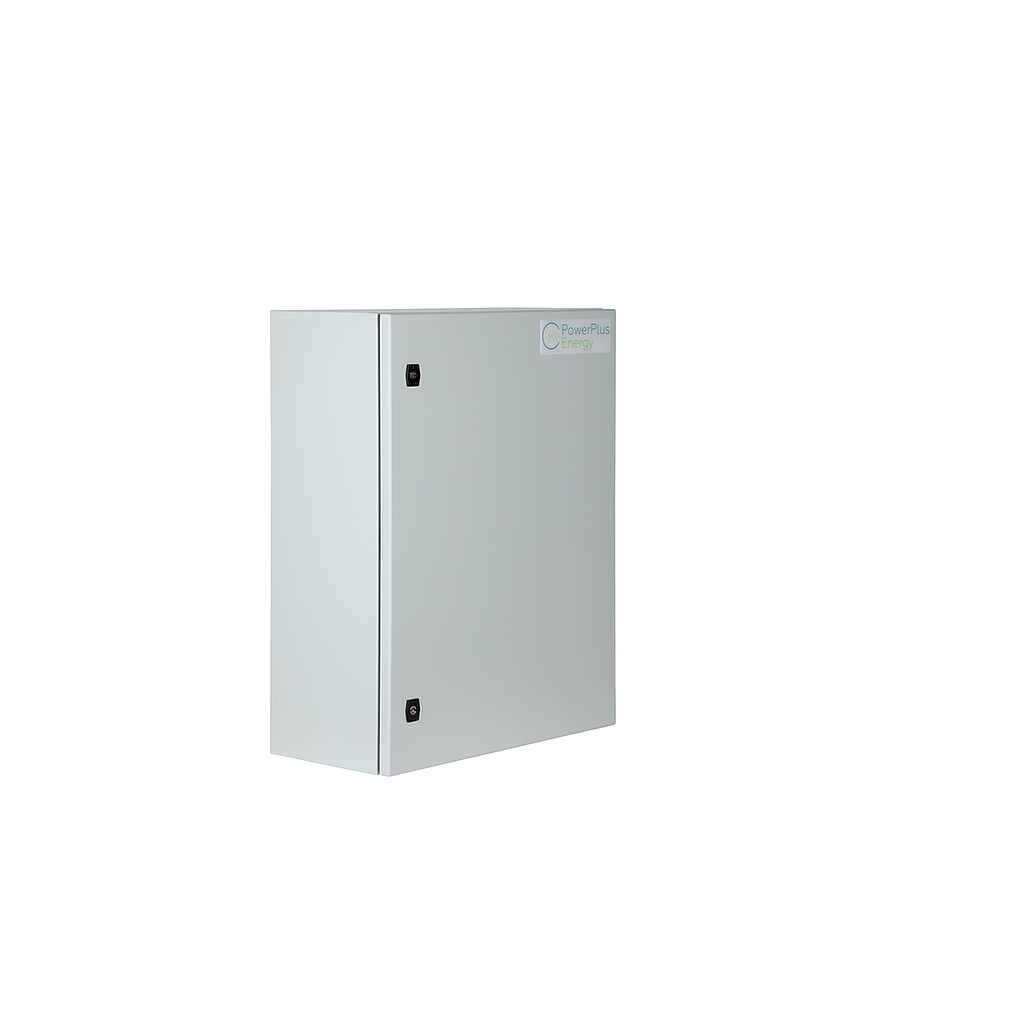

PowerPlus IP66 Wall Mount Battery Cabinet - Suits 3 x LiFe or Eco Batteries
Cabinet features

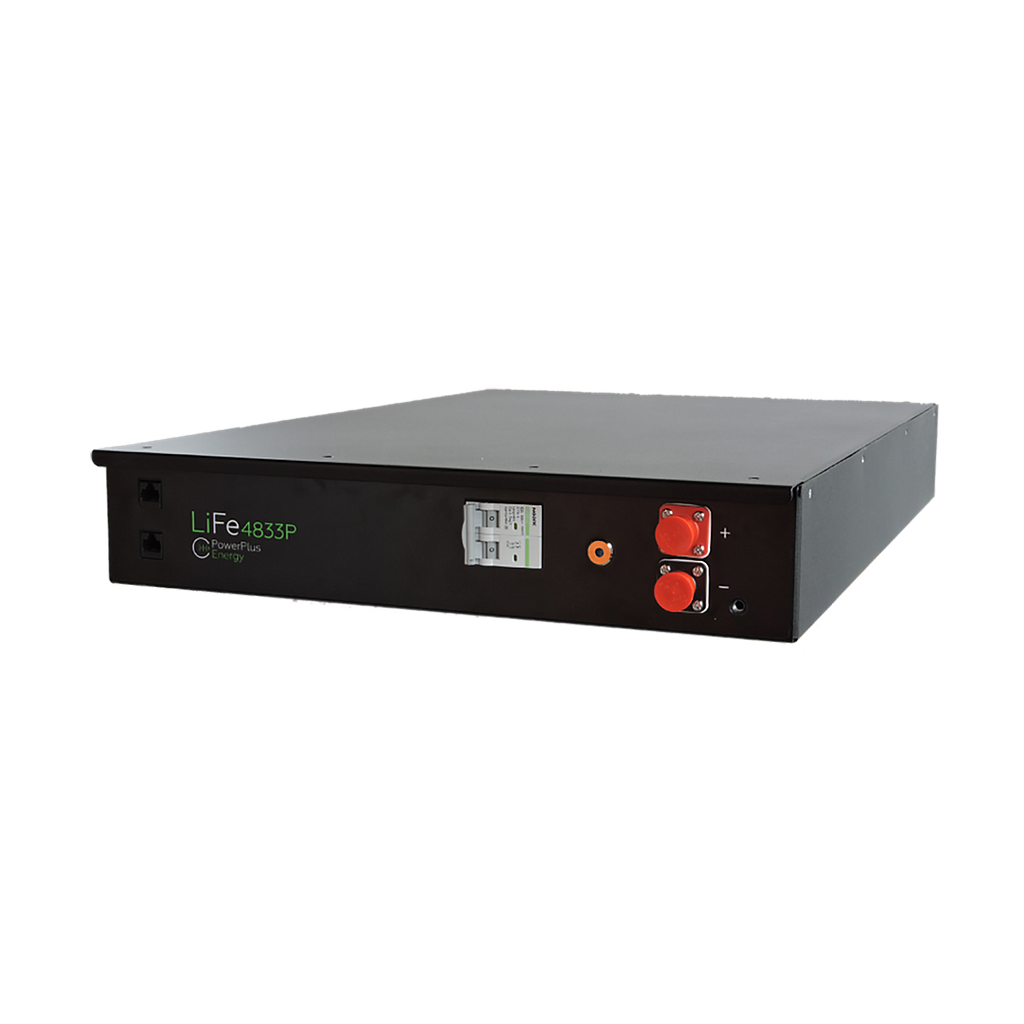

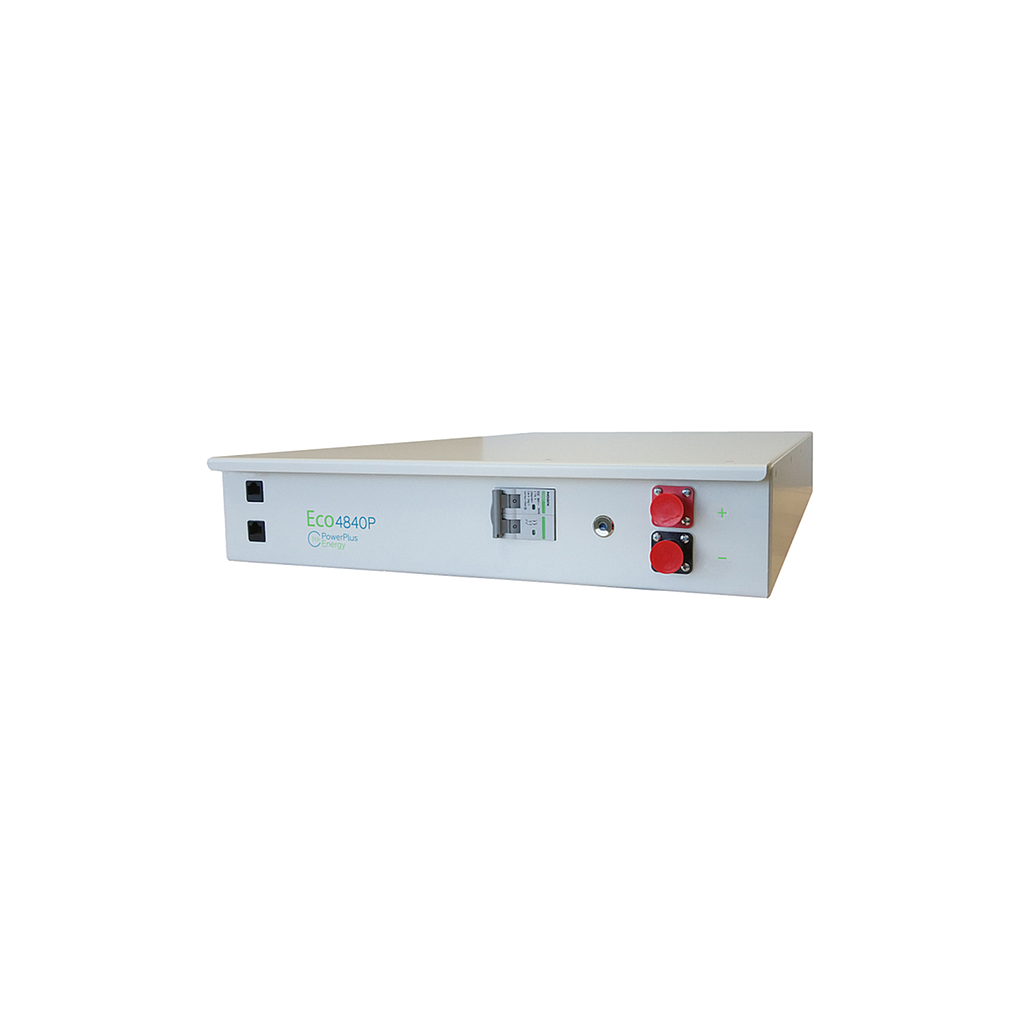

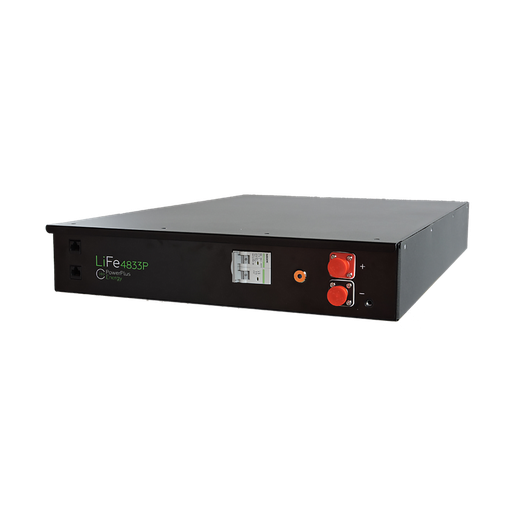

Wall mount cabinet for 3 PowerPlus LiFe or Eco rack batteries
IP66 rated for indoor or outdoor installation
Pre-wired Amphenol Surlok battery cables and DC busbar (M8) for plug and play assembly
Batteries held upright by a clamp bar; natural convection cooling
Build
White powder coated steel
33kg empty, 800 x 600 x 300mm
Cable entry drilled on site to suit; use glands rated IP66 or higher (not supplied)
Where to use it
The PowerPlus IP66 Wall Mount Battery Cabinet - Suits 3 x LiFe or Eco Batteries mounts a PowerPlus battery bank on a wall, including outdoor locations, for homes, sheds and off-grid systems.
No DC circuit breaker is fitted; provide battery protection to the inverter as per the PowerPlus installation manual. The wall must carry the cabinet and batteries, and batteries are loaded from the back of the cabinet forward.
Dimensions
Height
800 mm
Width
600 mm
Depth
300 mm
Warranty
Manufacturer's warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About PowerPlus Energy
PowerPlus Energy designs and manufactures LFP (lithium ferro phosphate) battery storage in Bayswater, Victoria. Its self-managed, rack-mount LiFe and Eco batteries are built for harsh Australian conditions and scale from small off-grid systems to large commercial installations.
Product Specifications
Model
PEW3
Colour
White, powder coated steel
Mounting
Wall
Installation
Indoor or outdoor
Battery Slots
3
Battery Interconnection
Amphenol Surlok cables, pre-wired (plug and play)
Main Connection
DC busbar with M8 bolt, nut and washer
DC Circuit Breaker
None
Battery Retention
Clamp bar and nuts (supplied)
Cooling
Natural convection
Cable Entry
Position to suit the installation; glands not supplied
