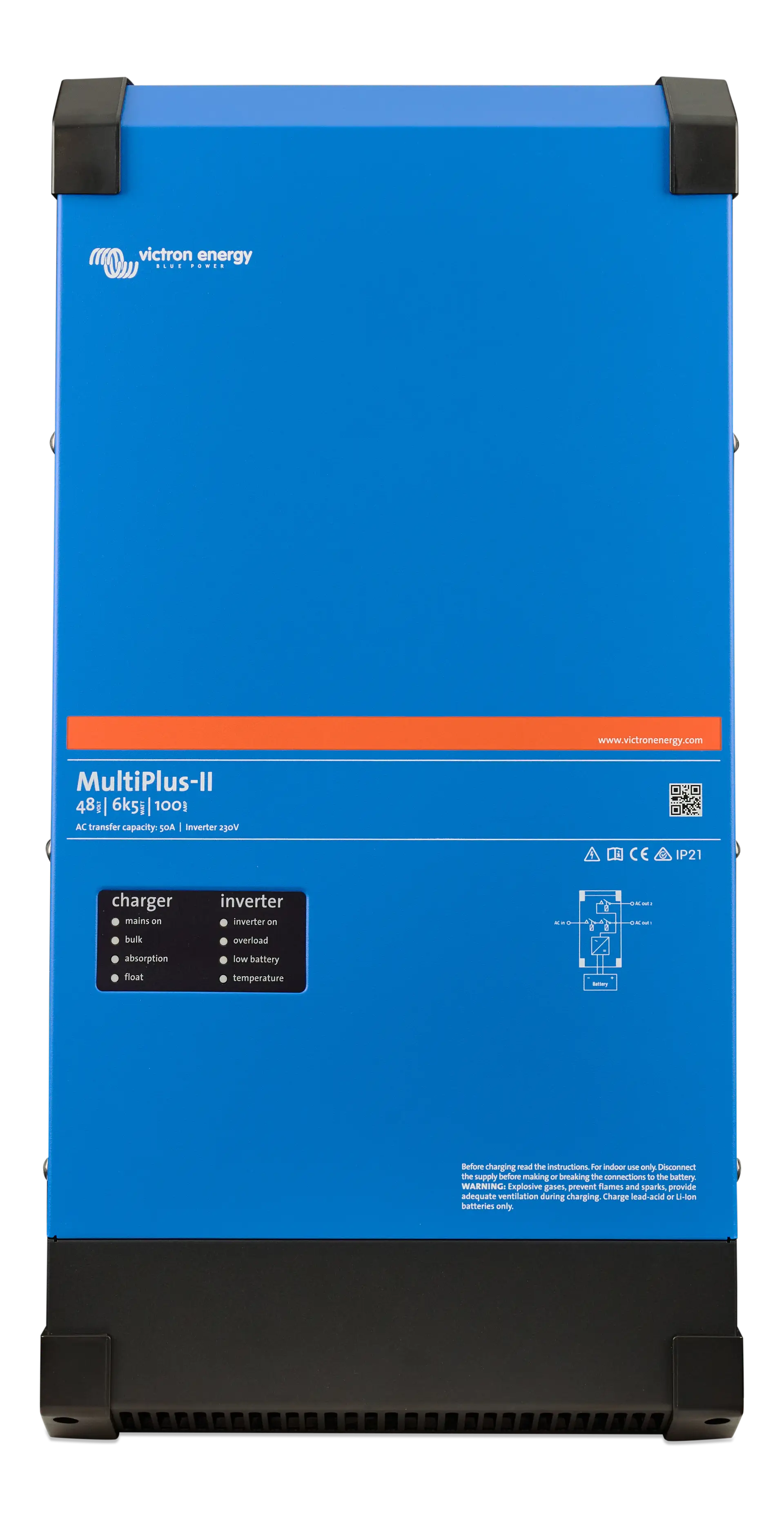

Victron MultiPlus-II 48/6k5/100-50 230V
48V 6.5 kVA inverter/charger with 100A charger and 50A transfer switch
Victron MultiPlus-II 48/6k5/100-50 230V
Inverter features
- 48V 6.5 kVA pure sine wave inverter: 6 kW continuous at 25°C, 5.7 kW at 40°C
- Peak power 11 kW for 1 minute; 6.5 kW for 4 hours from a cold start
- Main AC output is uninterruptible: switches to battery in under 20 ms
- Second AC output that is live only when grid or generator power is present
- Up to 96% efficient
Charger features
- 100A adaptive battery charger (95A at 40°C)
- Lithium, lead-acid and other chemistries; battery temperature sensor included
- Charge voltages 57.6V absorption, 55.2V float, 52.8V storage (adjustable)
System features
- 50A transfer switch and maximum AC input current
- PowerControl and PowerAssist: limits grid or generator draw and adds battery power for peaks
- ESS (Energy Storage System) and anti-islanding for grid-connected systems
- Up to 6 units in parallel, or three units for three-phase supply
- Programmable relay, remote on/off and VE.Bus communication
Where to use it
The MultiPlus-II 48/6k5/100-50 is a 48V inverter/charger for off-grid homes, sheds and cabins, grid-connected battery (ESS) systems, and large boats and vehicles. It runs 230V appliances from the battery bank, charges the batteries from the grid or a generator at up to 100A, and takes over the main output in under 20 milliseconds if the grid fails, so computers and other electronics keep running.
With PowerControl and PowerAssist it can make a small generator or limited supply go further: you set a maximum input current and the MultiPlus-II tops up peaks from the battery. It works with MPPT solar charge controllers and grid-tie inverters, and several units can run in parallel or three-phase for larger systems. Add a Cerbo GX for remote monitoring on VRM, or a VE.Bus Smart Dongle to check it from your phone over Bluetooth.
Dimensions
| Height | 644 mm |
| Width | 320 mm |
| Depth | 150 mm |
| Weight | 29 kg |
Safety features
- Output short circuit and overload protection
- Battery voltage too high or too low protection
- Over temperature protection
- Protection against 230V on the inverter output and excessive input voltage ripple
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
