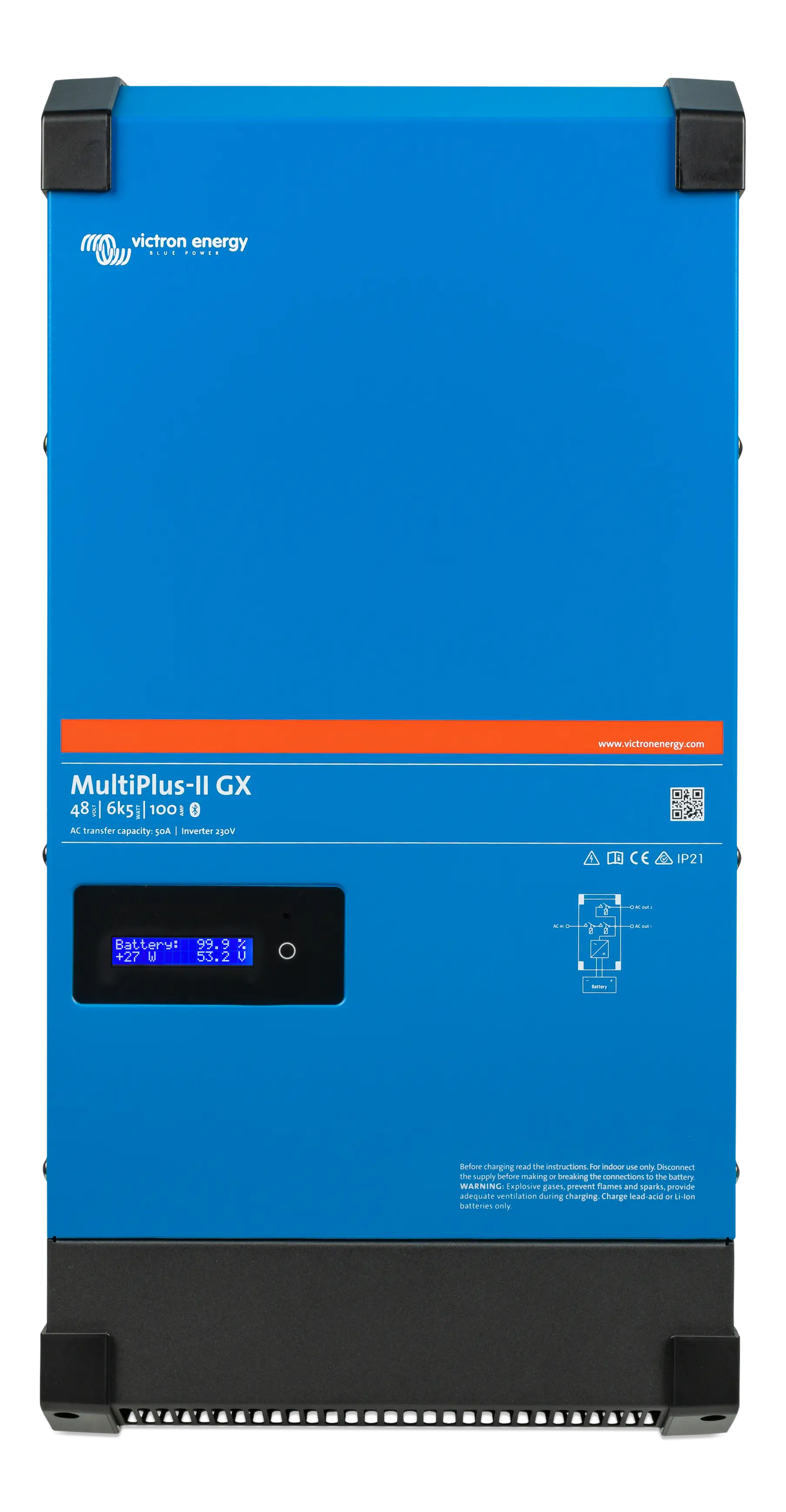

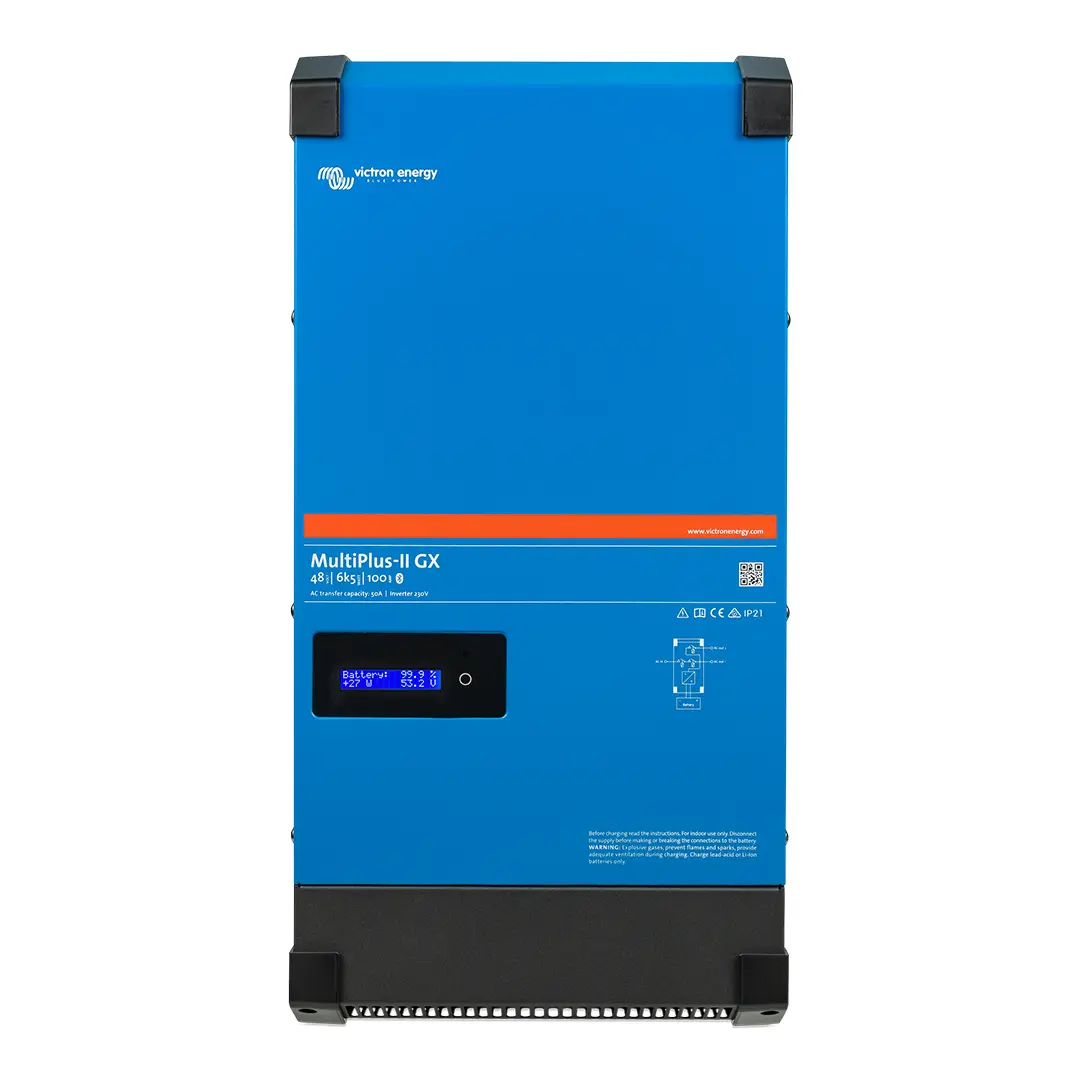

Victron MultiPlus-II 48/6k5/100-50 230V GX
Victron MultiPlus-II 48/6k5/100-50 230V GX
Features
- Integrates a powerful 6kW pure sine wave inverter and a 100A battery charger into a single compact unit for 48V systems
- Built-in GX device provides integrated monitoring and control via Wi-Fi or Ethernet without the need for additional hardware
- Features PowerControl and PowerAssist technology to prevent overloading a limited AC source by supplementing with battery power
- Equipped with a high-speed 50A automatic transfer switch to ensure an uninterrupted power supply during grid or generator failure
- Includes a variety of communication interfaces such as BMS-Can, VE.Direct, and USB for seamless integration with lithium batteries
- Housed in a durable steel enclosure with an IP21 rating designed to perform in temperatures ranging from -40°C to +65°C
- Supports advanced automation through a programmable relay and allows for remote firmware updates via the VRM portal
| Feature | MultiPlus-II (Standard) | MultiPlus-II GX |
| Integrated Display | No | Yes (2 x 16 LCD) |
| Built-in Wi-Fi/Ethernet | No | Yes |
| Direct BMS-Can Port | No | Yes |
| Remote Monitoring | Requires external GX | Built-in |
| Best For | Parallel/Multi-unit builds | Clean, single-unit installs |
Where to use it
The Victron MultiPlus-II 48/5000/70-50 GX is the ultimate all-in-one powerhouse for 48V energy systems, combining a 6kW pure sine wave inverter, a high-capacity 100A battery charger, and an integrated GX device for professional-grade system management. This sophisticated unit is designed to be the heart of any high-end off-grid home, large RV, or marine power system, offering seamless PowerControl and PowerAssist technology to prevent source overloading while providing an uninterruptible power supply. With built-in Wi-Fi, Ethernet, and various communication ports, it allows for instant remote monitoring and control via the Victron Remote Management (VRM) portal without the need for additional hardware, making it a streamlined and reliable choice for modern energy storage and backup applications.
Dimensions
| Width | 320mm |
| Height | 644 mm |
| Depth | 150 mm |
| Weight | 29 kg |
Safety features
- Galvanic isolation between battery and AC circuits prevents dangerous ground loops and enhances system safety
- Comprehensive electronic protection against output short circuits and power overloads to prevent hardware damage
- Integrated thermal sensors protect the unit from overheating with fan-assisted cooling for high-load reliability
- Advanced battery monitoring prevents damage by shutting down the system during low or high voltage events
- Internal protection against 230V AC back-feeding on the inverter output ensures safe electrical operation
- Certified to international safety standards including EN-IEC 60335 and EN-IEC 62109 for reliable residential and industrial use
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
