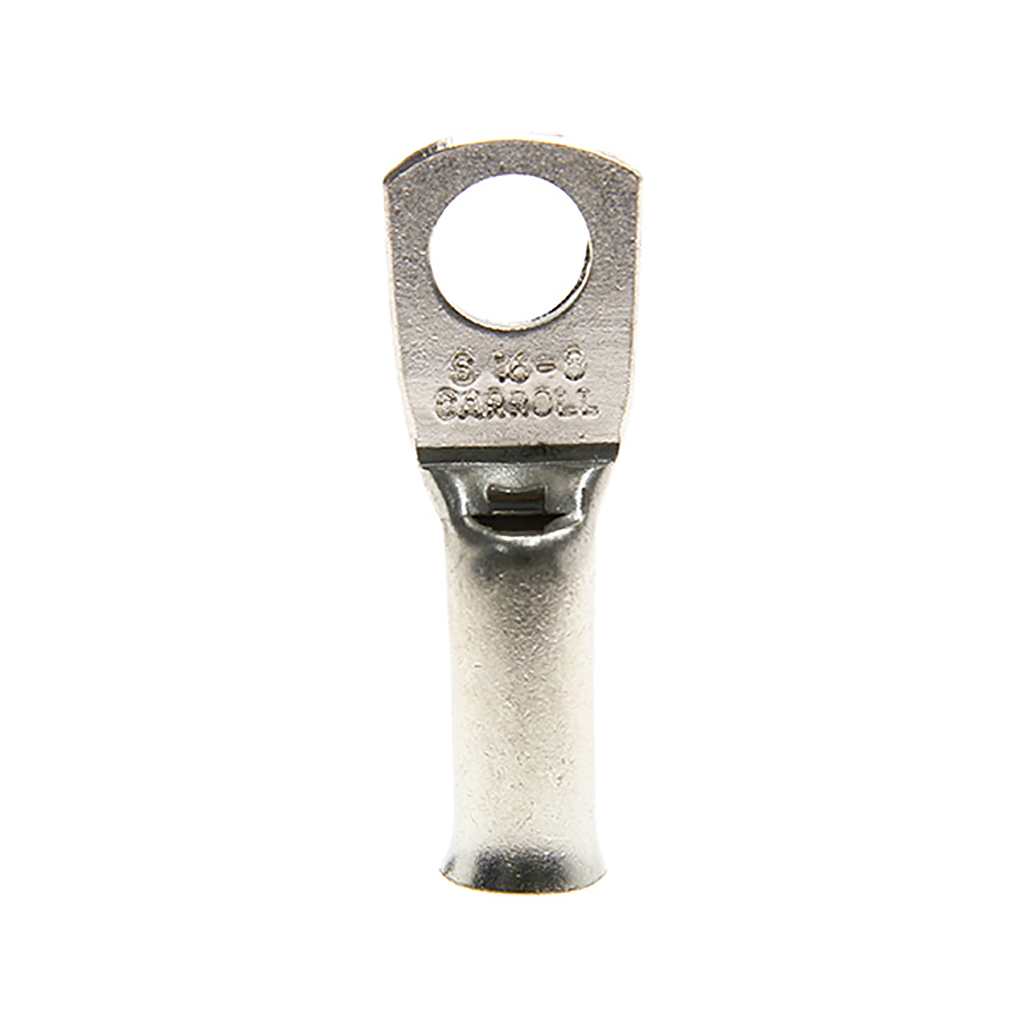

Bellmouth Cable Lug 16mm² X 10mm Stud (10)
Tinned copper bellmouth cable lugs for 16 mm² cable on an M10 stud. Pack of 10.
Bellmouth Cable Lug 16mm² X 10mm Stud (10)

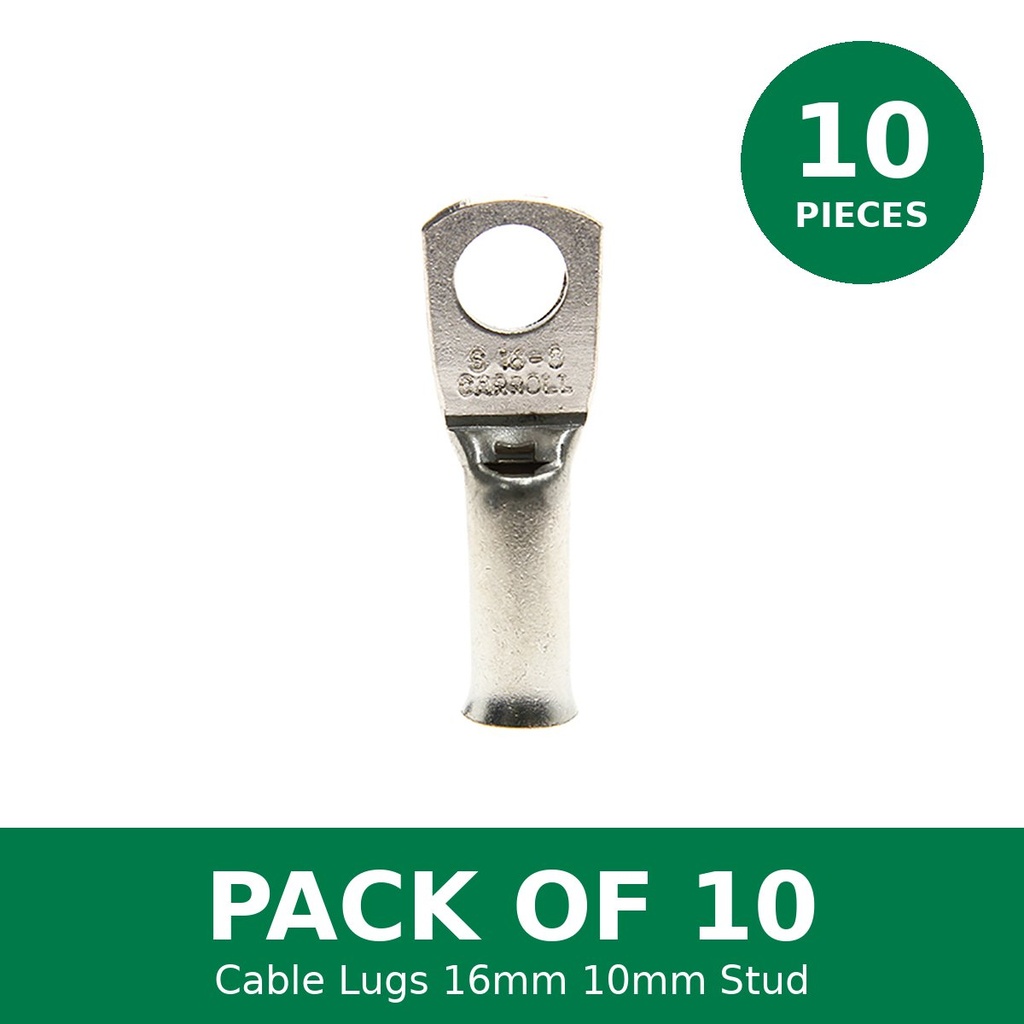

Pack Contents
- 10 x bellmouth copper cable lugs, 16 mm², M10 stud
- Price is per pack of 10
Features
- Supplied in a convenient pack of 10
- Bellmouth barrel entry makes fine-stranded flexible cable easy to insert without splayed strands
- Made from 99.9% pure, fully annealed copper so it crimps without cracking
- Electro-tin plated for corrosion resistance
- Inspection hole to confirm the cable is fully inserted
- Complies with AS/NZS 4325 Part 1
Where to use it
Tinned copper cable lugs terminate 16 mm² copper cable onto an M10 stud or bolt, such as battery terminals, busbars, isolators, fuse holders, inverters and chargers. Crimped correctly they give a low-resistance, high-current connection that stays tight under vibration. Ideal for 12V, 24V and 48V DC systems in 4WDs, caravans, boats and off-grid solar and battery installs. The pack of 10 is ideal for larger jobs or keeping spares on hand.
Product Dimensions
- Pack Quantity: 10 pieces (dimensions below are per lug)
- Cable Size: 16 mm²
- Stud Size: M10 (hole 10.2 mm)
- Total Length (L): 41 mm
- Barrel Length (L2): 19 mm
- Palm Width (W): 16 mm
- Palm Thickness (T): 1.5 mm
- Barrel Outer Diameter: 7.9 mm
- Barrel Inner Diameter: 5.5 mm
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
