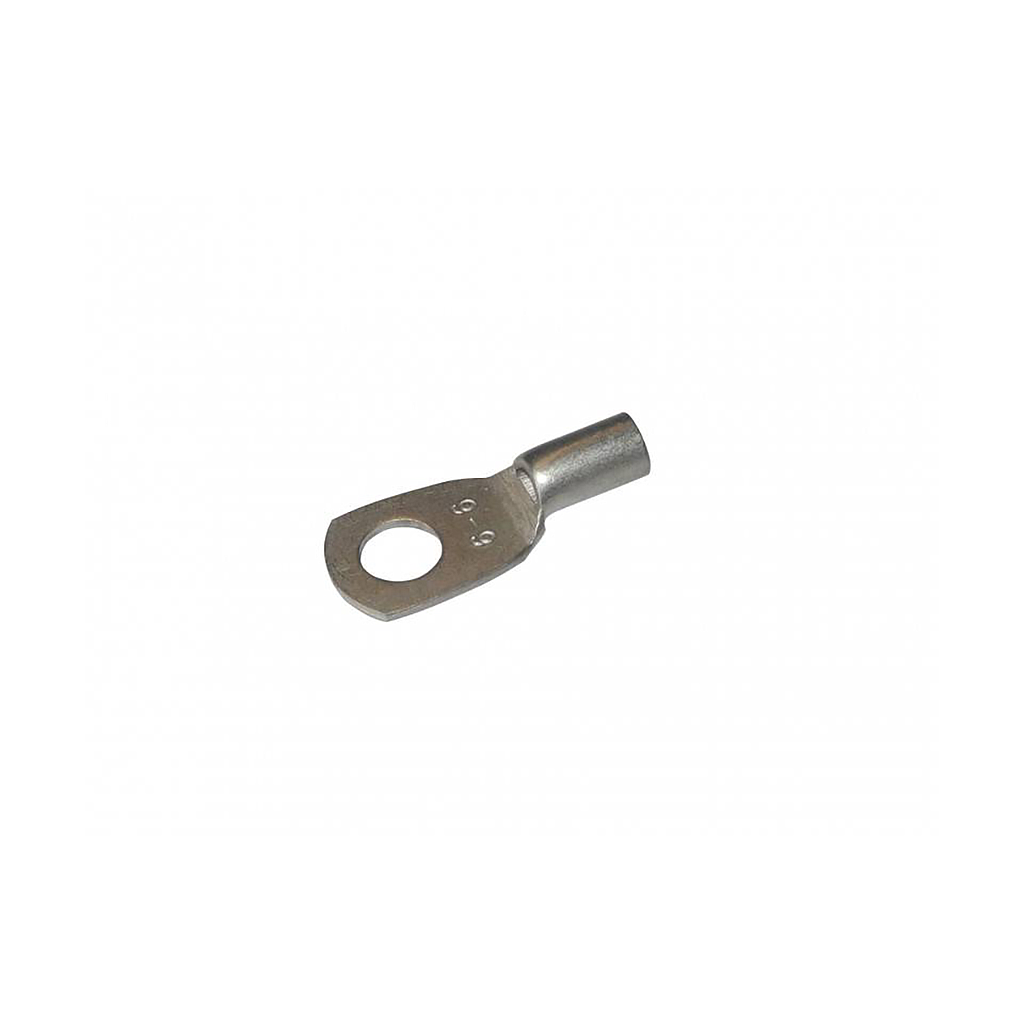

Cable Lug 6mm² X 6mm Stud (10)

This combination does not exist.

$ 5.85 - Inc GST 5.85 in stock AUD $ 5.85

Straight barrel tinned copper cable lug, 6mm², M6 stud, pack of 10

Rating :

(0.0)

ADD TO CART Buy now

BrisbaneIn stock

SKU: S66_10

Category: Cable & Accessories , Cable & Accessories , Cables & Accessories , Cables & Accessories , Lugs & Connectors

Cable Lug 6mm² X 6mm Stud (10)

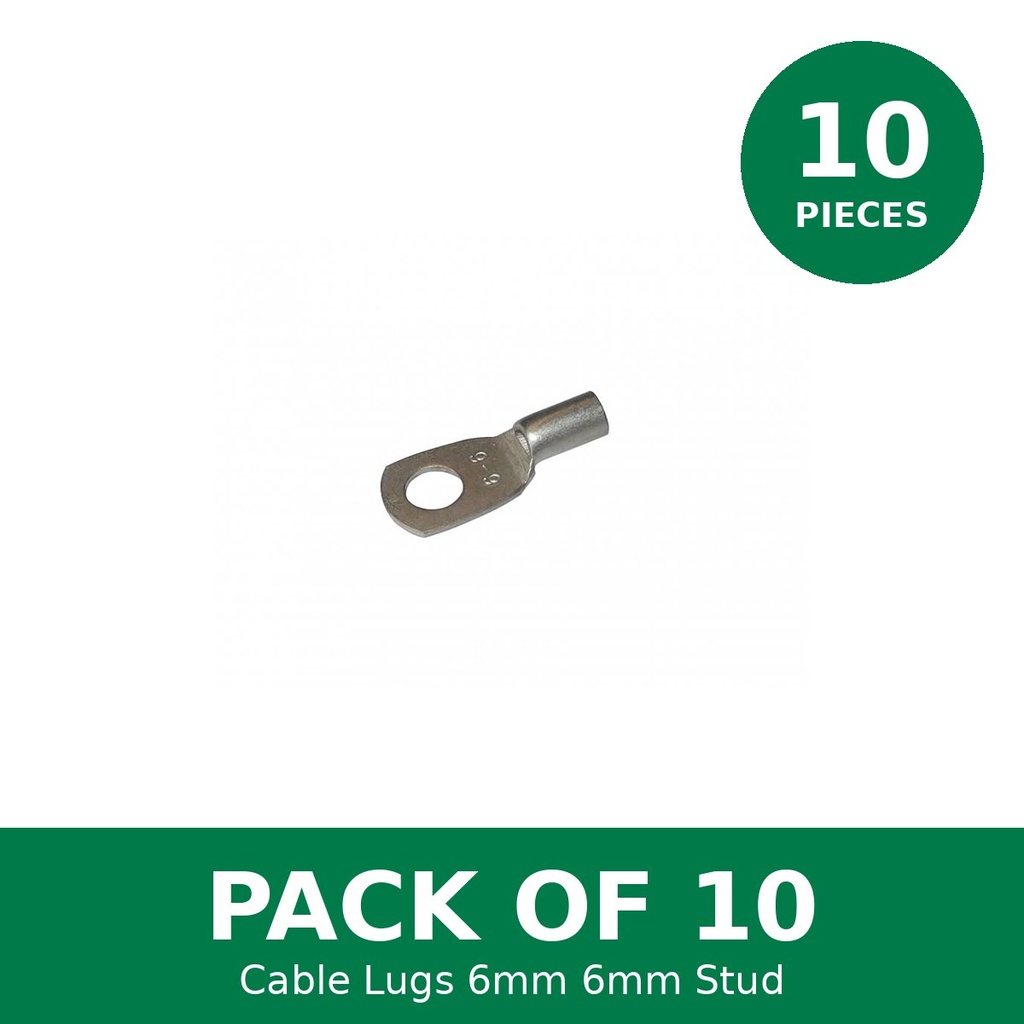

Pack Contents

10 x straight barrel copper cable lugs, 6 mm², M6 stud
Price is per pack of 10

Features

Supplied in a convenient pack of 10
Straight barrel for standard stranded copper cable
Made from 99.9% pure, fully annealed copper so it crimps without cracking
Electro-tin plated for corrosion resistance
Inspection hole to confirm the cable is fully inserted
Complies with AS/NZS 4325 Part 1

Where to use it

Tinned copper cable lugs terminate 6 mm² copper cable onto an M6 stud or bolt, such as battery terminals, busbars, isolators, fuse holders, inverters and chargers. Crimped correctly they give a low-resistance, high-current connection that stays tight under vibration. Ideal for 12V, 24V and 48V DC systems in 4WDs, caravans, boats and off-grid solar and battery installs. The pack of 10 is ideal for larger jobs or keeping spares on hand.

Product Dimensions

Pack Quantity: 10 pieces (dimensions below are per lug)
Cable Size: 6 mm²
Stud Size: M6
Total Length (L): 27 mm
Barrel Inner Diameter: 3.8 mm

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

Match two things: the cable size in mm² (for example 16mm² or 50mm²) and the stud or bolt size it fits over (for example M8). The cable size must match the lug barrel exactly so the crimp grips every strand, and the stud size should match your terminal so the lug sits flat and tight.

A bellmouth lug has a flared, funnel-shaped barrel entry. It makes it easy to insert fine-stranded flexible cable, which tends to splay after stripping, without strands catching outside the barrel. A standard (straight barrel) lug has a plain entry and suits regular stranded cable.

Use a lug crimper sized for the cable, such as a hexagonal or indent crimping tool. Hex crimpers give an even, all-round compression that suits tinned copper lugs. Hammer crimpers and pliers give inconsistent crimps that can heat up under high current.

Tin plating protects the copper from oxidation and corrosion, keeping a low-resistance connection over time. It is especially useful in damp, salty or high-humidity environments such as caravans, boats and outdoor battery boxes.

Product Specifications

Brand	HellermannTyton
HT Part No.	CL6-6 (Art. 924-00575)
Pack Size	10 pieces
Type	Straight barrel copper cable lug
Cable Size	6 mm²
Stud Size	M6
Total Length (L)	27 mm
Barrel Inner Diameter (ID)	3.8 mm
Material	Annealed copper, 99.9% pure (C11000)
Plating	Electro-tin, 5-10 microns
Conductivity	99.7% IACS
Operating Temperature	-55°C to 155°C
Standard	AS/NZS 4325 Part 1
Barcode	768127466757
