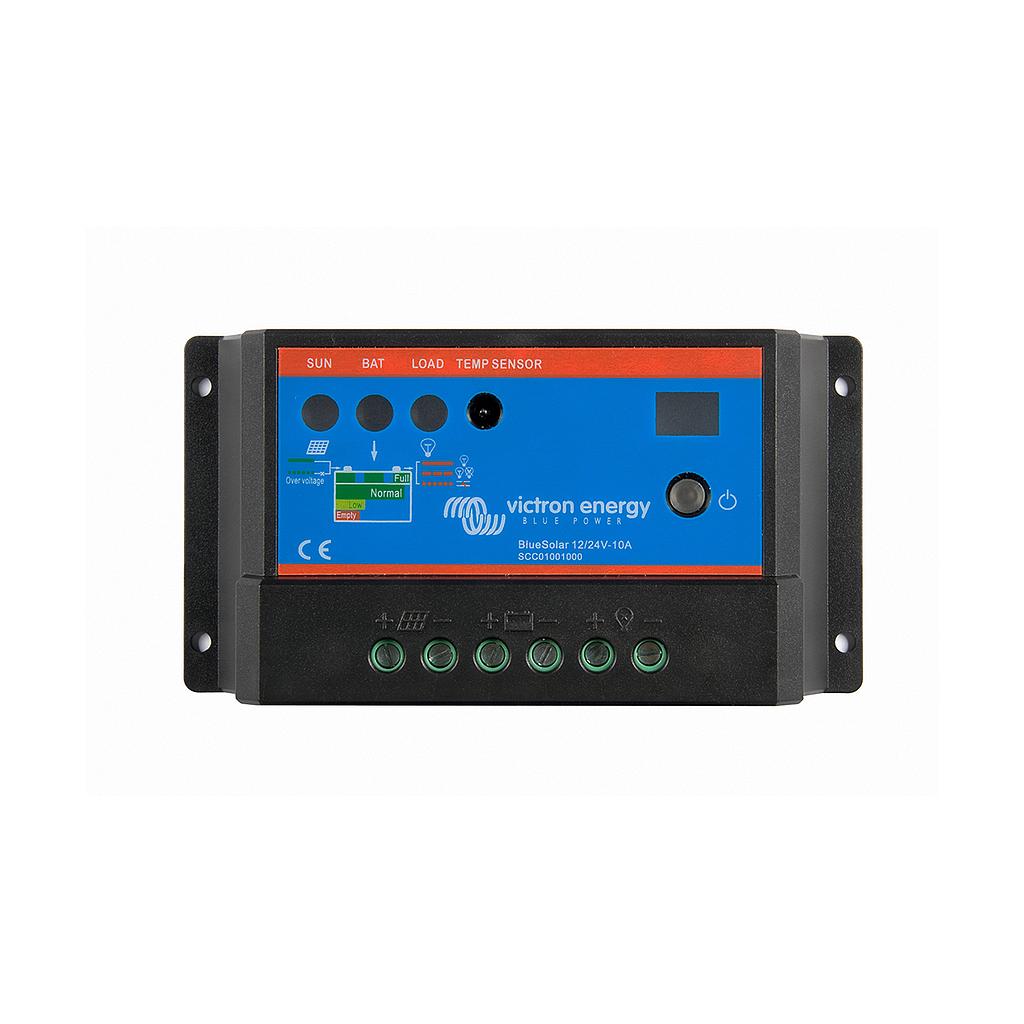

Victron BlueSolar PWM-Light 12/24V-10A
Victron BlueSolar Light PWM Solar Controller
Features
- Suitable for 12V & 24V Battery Banks
- Pulse Width Modulation Technology
- Real-Time System Status
- Load Output for Battery Protection
- Flexible Day/Night Timing
- USB Charging on the Go
- 10Amps
Victron's range of PWM and MPPT charge controllers are both widely used to charge batteries with solar power.
The PWM controller is in essence a switch that connects a solar array to the battery. The result is that the voltage of the array will be pulled down to near that of the battery.
A PWM controller is not a DC-DC transformer. The PWM controller is a switch which connects the solar panel to the battery. When the switch is closed, the panel and the battery will be at nearly the same voltage. Assuming a discharged battery the initial charge voltage will be around 13V, and assuming a voltage loss of 0.5 V over the cabling plus controller, the panel will be at V PWM = 13.5V.
The voltage will slowly increase with increasing state of charge of the battery. When the absorption voltage is reached the PWM controller will start to disconnect and reconnect the panel to prevent overcharge (hence the name: Pulse Width Modulated Controller).
More Product Features:
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two-digit seven-segment display for quick and easy setting of the load output functionality, including timer setting.
- Three-stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against overload and short circuits.
- Protected against reverse polarity connection of the solar array and/or battery.
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
