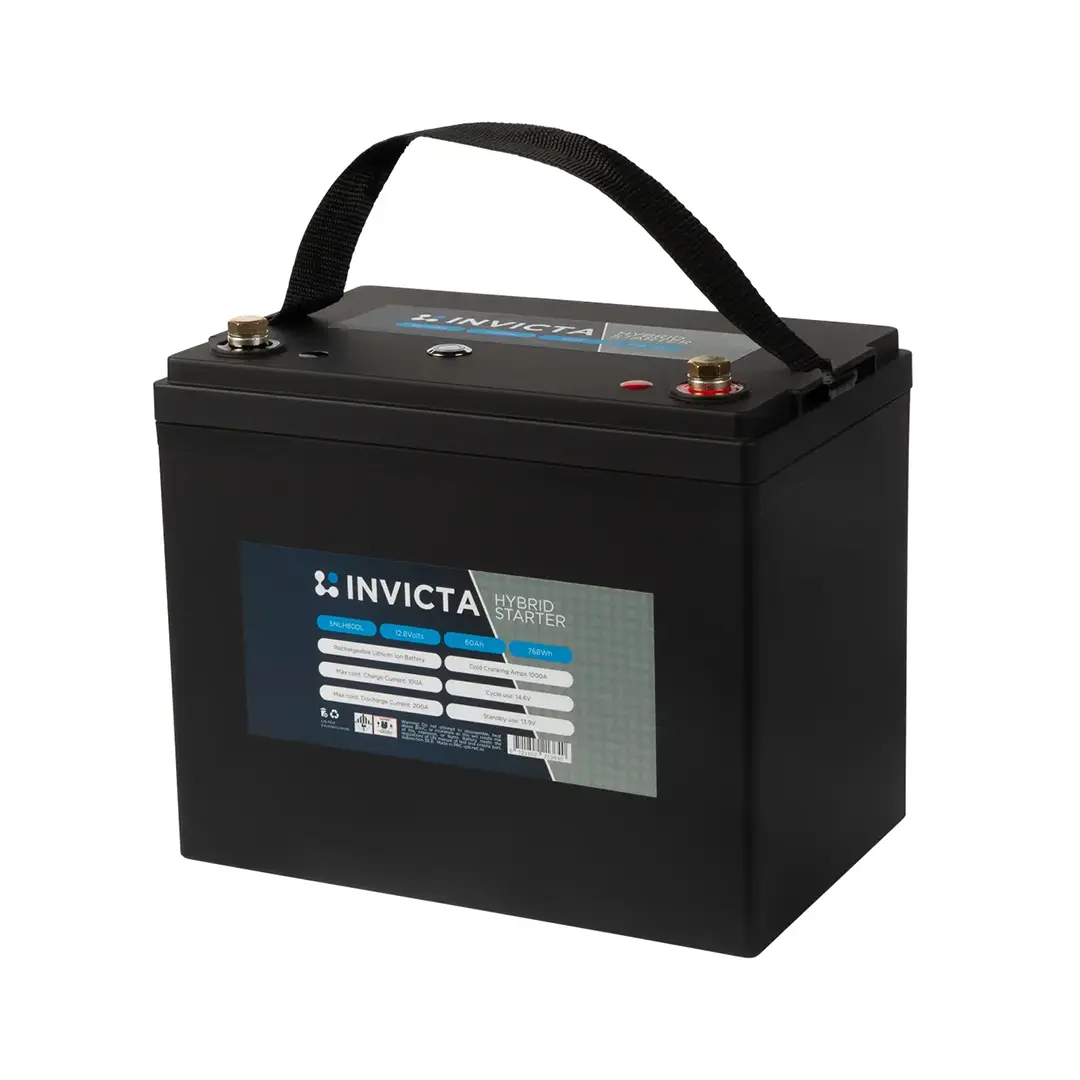

The Invicta Hybrid Starter 80DL lithium battery is purpose-built for under-bonnet installation in 4x4 vehicles, commercial utility fleets, caravans, and recreational watercraft. It represents the ultimate dual-purpose drop-in solution where heavy cold cranking power (1000 CCA) is required simultaneously alongside deep-cycle capacity to run 12V accessories like portable travel fridges, lighting arrays, and minor accessories from a space-constrained engine bay profile.
Features & Benefits
| Width | 172 mm |
| Height | 220 mm |
| Depth (Length) | 260 mm |
| Weight | 7.9 kg |
Applications
More about Invicta:
Invicta is a quality lithium battery brand operated by Sealed Performance Batteries (SPB), a company with over 25 years in the energy storage industry with a highly technical team specialising in energy storage and power distribution. It was born out of a desire to provide the Australian market with a high-quality Lithium Iron Phosphate (LiFePO4) battery that could easily replace standard SLA sizes and be relied upon by its users today, tomorrow and for many years to come.
This would require components that would meet only the highest standards and rely on SPB’s understanding and experience of the energy storage industry. In particular, the knowledge of Ryan Hammond, SPB’s Technical Director, a qualified engineer with over 18 years of specialised experience in electrical engineering and power distribution. This has resulted in a lithium battery that has thoroughly examined every detail and is proven to deliver a solution of paramount quality and safety. Whether outback, offshore or in need of reliable energy in commercial and industrial applications, our customers know that Invicta will be there for years to come.
Product Specifications
| Nominal Voltage | 12.8v |
| Nominal Capacity (250C, 0.33C) | 60Ah |
| Terminal | M8 |
| Length (mm) | 260 ± 2mm |
| Width (mm) | 172 ± 2mm |
| Height (mm) | 210/220 ± 2mm |
| Weight | 7.9kg |
| Max Charge Voltage | 14.6 ± 0.1V |
| Charge Cut-Off Voltage | 15.6 ± 0.1V |
| Discharge Cut-Off Voltage | 8V |
| Max. Discharge Current | 200A |
| Max. Pulse Discharge Current (3 Sec) | 1000A |
| Cold Cranking Amps | 1000A |
| Max. Charge Current | 100A |
| Recommended Charge Current | < 20A |
| Cycle Life (100% DoD) | > 2000 |
| Operating Temp - Charge | -20 - 450C |
| Operating Temp - Charge | -20 - 600C |
| BMS Temp High Disconnect | 800C |
| Max. Parallel Configuration | 6P |
| Jump Start Feature | Yes |
| IP Rating | 56 |
| Certifications | IEC62133, UN38.3 |
