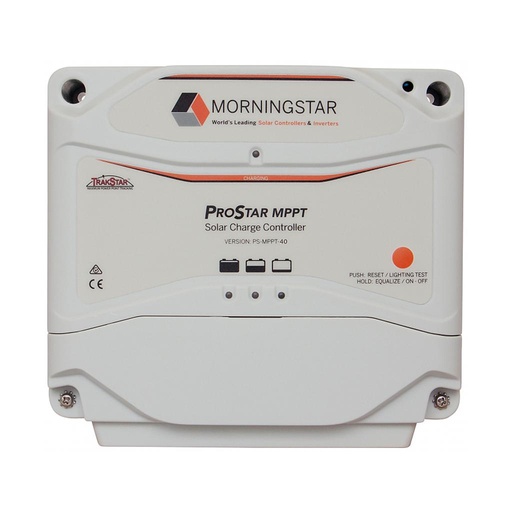

Morningstar ProStar MPPT 12/24V 40Amp with Meter
Morningstar ProStar MPPT:
The prostar is a mid-range MPPT solar charge controller with TrakStar Technology™ that provides maximum power point tracking (MPPT) battery charging for off-grid photovoltaic (PV) systems up to 1100 watts. Available with and without advanced built-in meter. This device is ideal for industrial and residential applications.This controller allows multiple modules in series for 12V and 24V battery systems. Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.
A Wire Box accessory to reduce hazards associated with exposed wires and connections can be purchased separately.
Features:
High Reliability –conformally coated circuit board and corrosion resistant terminals.
Maximizes Energy Harvest –using TrakStar MPPT Technology to determine and adjust to the true maximum power point as solar insolation changes throughout the day.
High Efficiency – at low, medium, and high power levels.
Data Logging –up to 256 days of detailed power and load data.
Low Noise Design – meets US Federal Communications Commission Class B specifications.
Automatic PV Based Lighting Control –field adjustable, multi-event load control enables powerful options for PV lighting systems.
MODBUS Communications –Solar Industry Standard MODBUS communications protocol allows for easy programming, control, remote data access and charge synchronization.
High Strength –polycarbonate case and extruded aluminum heatsink.
Self Diagnostics –continuous monitoring and reporting of any errors through its status LED’s, optional display or communication port.

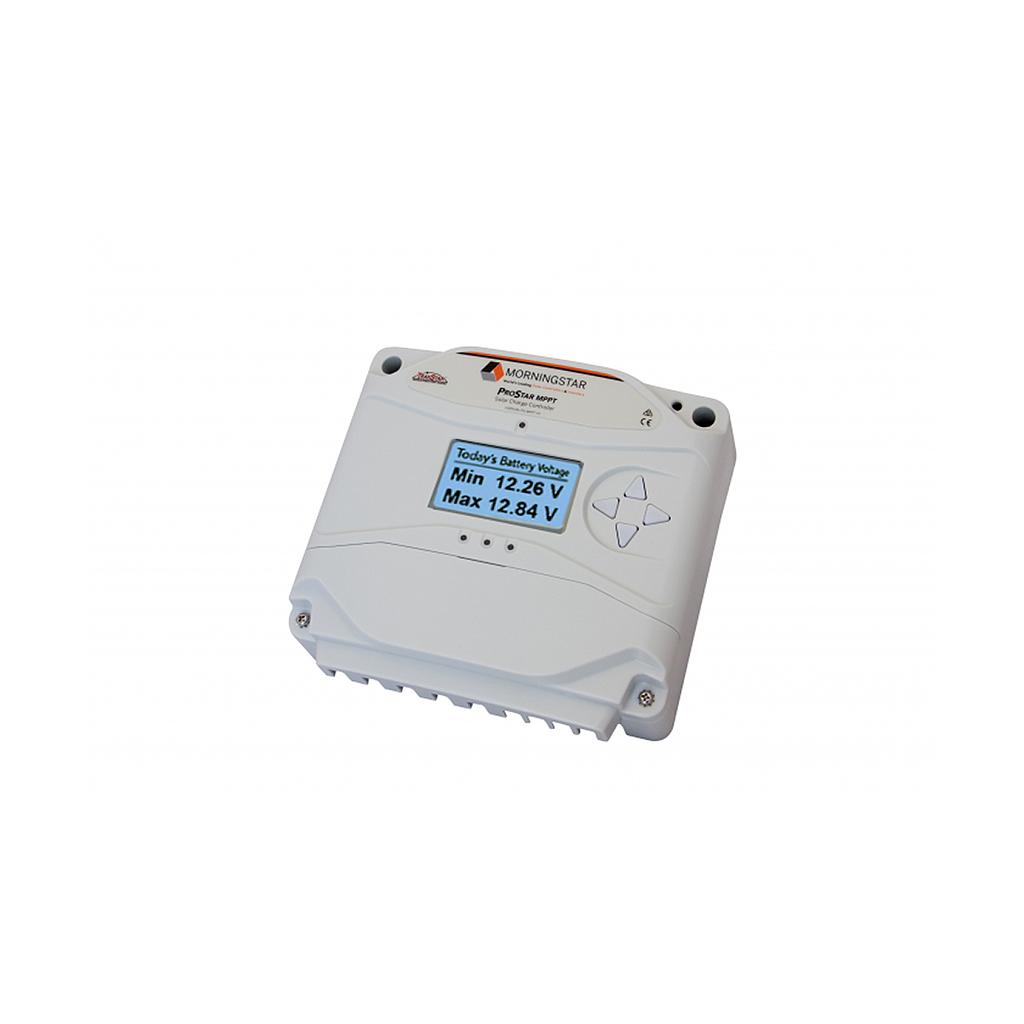

Meter –allows adjustments to charging, lighting, and load control settings without a computer
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Morningstar:
With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”
