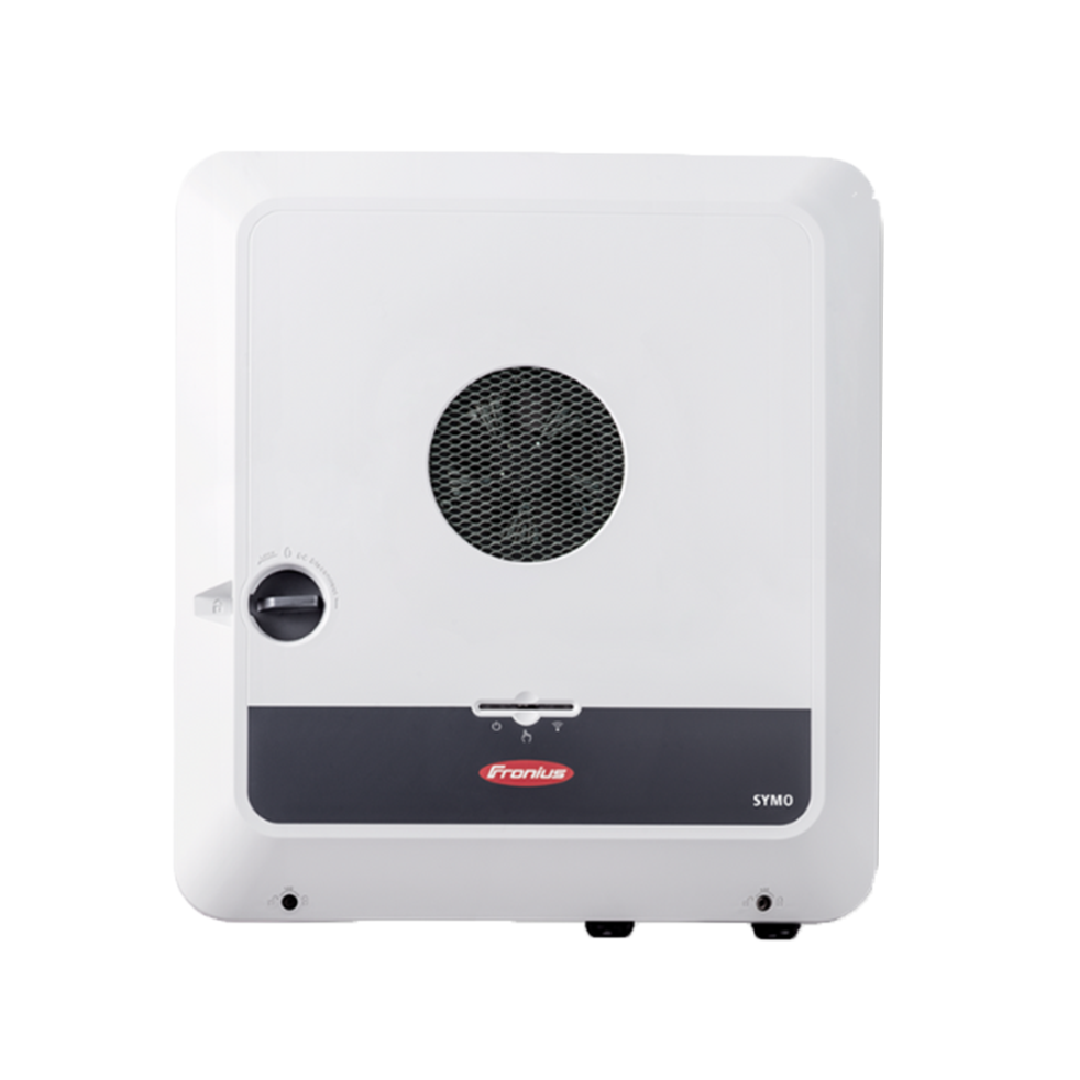

Fronius Symo GEN24+ 10kW Solar Inverter

Fronius Symo GEN24 Plus 10kW Solar Inverter

Features:

• Dual-MPPT Three-Phase Hybrid Inverter
• Battery-Ready with Backup Function
• 10-year Parts & Labour Warranty
• IP66 Rated with WiFi Connection

• Intelligent Energy Management
• Active Cooling Technology for a Longer Service Life
• Flexible and Fast Installation
• Compatible with Third-Party Components

Ready for the private energy revolution: with the Fronius GEN24 inverter as the core of a private PV system, households can produce their own energy flexibly, sustainably and cost-effectively. The Fronius GEN24 Plus is the all-in-one solution for solar energy supply. Whether it is used in photovoltaic, a storage system, backup power, heating or e-mobility, the Fronius GEN24 Plus offers a unique range of solutions and is therefore playing a pioneering role in the home energy revolution.

The Fronius Symo GEN24 Plus, with power categories of between 3 and 10 kW, is the ideal inverter for private households. With many features as standard, the single-phase device covers all customer requirements.

The GEN24 Plus leaves nothing to be desired with numerous features such as energy management functions, WLAN connection as standard, Ethernet connectivity and easy integration of third-party components. Thanks in particular to the PV Point – an integrated socket supplied with electricity when backup power is needed – and the Full Backup* feature in the event of power outages, it ensures the highest degree of power supply reliability.

Boasting a light and compact design, an active cooling concept, and quick and easy installation and commissioning the GEN24 offers an ideal residential inverter solution. The service concept, whereby individual parts can be replaced, also guarantees easy repair and therefore contributes to its sustainability credentials.

GEN24 Plus brings us another step closer to our vision of 24 hours of sun:

• Extension of the inverter's service life thanks to active cooling
• Comprehensive functions and open interfaces replace the need for additional equipment
• > 90% recycled aluminium is used in the aluminium heat-sink

The Fronius Primo GEN24 Plus, with power categories of between 3 and 6 kW, is the ideal hybrid inverter for private households. With many features as standard, the single-phase device covers all customer requirements.

More Product Features:

Integrated Data Communication:

Fronius are the first inverter manufacturer to offer a data communication package with fully integrated data logging, WLAN, Ethernet, energy management, web server and a range of interfaces. The inverter is connected to the internet by network cable or WLAN - without additional cabling - and grants you the perfect overview of how the PV system is operating. Connection to third-party components is provided by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). The open interfaces can also be operated in parallel to the Fronius Solar.web.

Dynamic Peak Manager:

The Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts its behaviour when searching for the optimal operating point. Its special feature is that the Dynamic Peak Manager automatically checks the entire characteristic curve on a regular basis and finds the global Maximum Power Point (GMPP), even in partial shade.

Multi-flow Technology:

Using Multi-Flow Technology, different DC and AC energy flows are possible in parallel. On the one hand, this allows energy from the modules and from the battery to be made available for domestic use at the same time. However, it is also possible for the energy from the modules to be simultaneously fed into the battery and the in-house network. Furthermore, not only can the battery be charged from the DC side, but also from the AC side (for example from existing PV systems or other energy sources, such as a wind turbine). This means the inverter is also suitable for AC-coupled retrofitting. The inverter manages these energy flows in such a way that the highest possible degree of self-sufficiency is achieved.

Superflex Design:

The Fronius SuperFlex Design is an ingenious combination of technical performance attributes that make designing your PV system not only extremely simple but also incredibly flexible. The key performance factors of the SuperFlex Design are two MPP trackers, together with a high system voltage and wide DC input voltage range. Every DC input, and therefore every MPP tracker, is able to accommodate the entire nominal output of the inverter. Regardless of whether the inverter has to cope with different roof orientations, shading of one or two strings, or the use of residual modules: a Fronius inverter featuring integrated SuperFlex Design will satisfy every conceivable operational PV system planning scenario using just a single inverter model.

Full Backup:

With the full backup option, the entire household, i.e. 1 phase as well as 3-phase devices, can be supplied with electricity in the event of a grid outage.

Active Cooling:

Active cooling technology relies on one or more fans, which not only avoid hot spots but also regulate the air circulation inside the inverter, thus keeping the temperature of the power electronics low. This has a positive effect on the service life of the devices, optimises yields and reduces costs. At Fronius, active cooling is supplied as standard in all devices.

More about Fronius:

Fronius is an Austrian company specialising in welding technology, photovoltaics, and battery charging technology. Together with their partners, customers and more than 7,000 employees, Fronius works on inspired solutions, for a better today and a sustainable tomorrow. Whether it's efficient solar power, smart ways to charge batteries or the perfect welding seam, their products last for generations. Fronius inverters, welding systems and battery charging systems are in demand worldwide, which is why they are now represented in more than 60 countries on five continents. This enables them to provide optimum support and service to customers around the globe.
