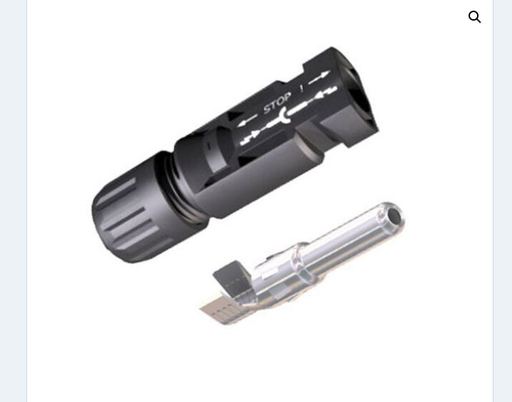

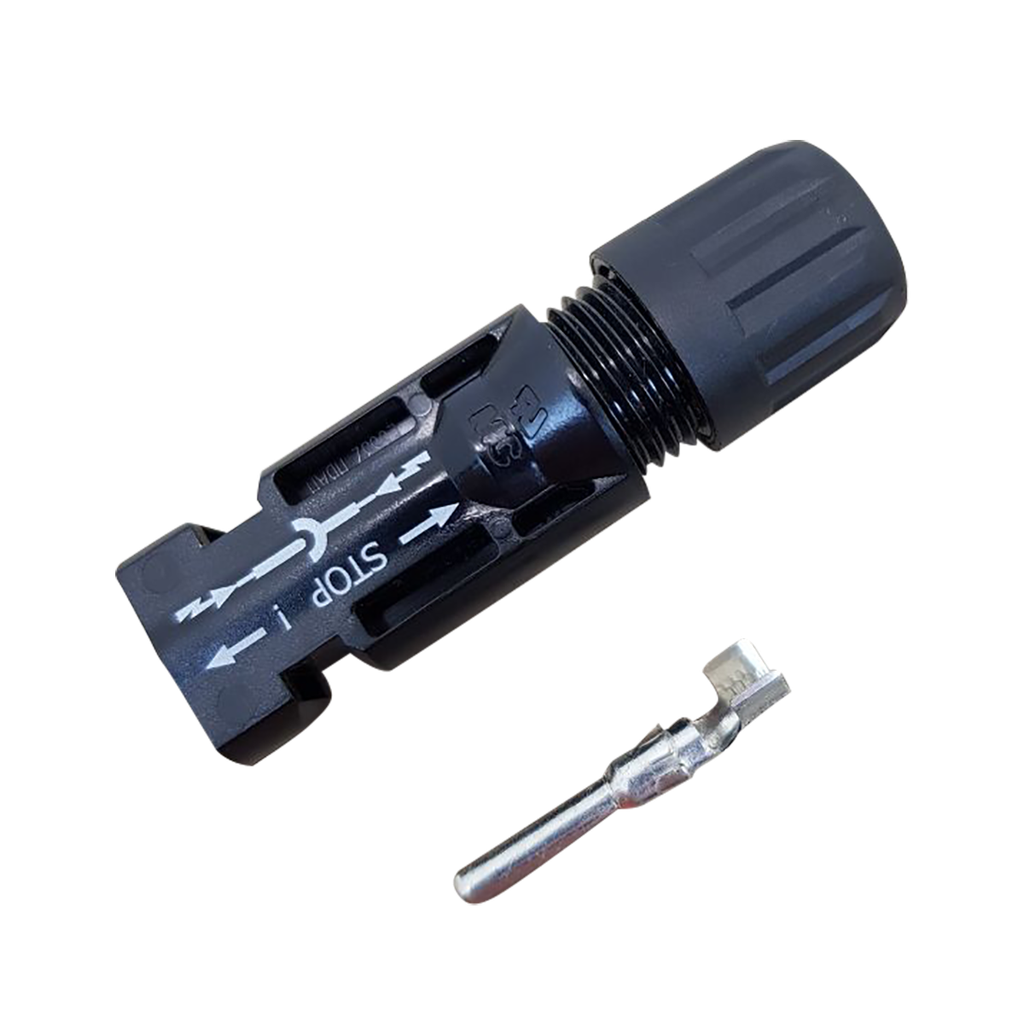

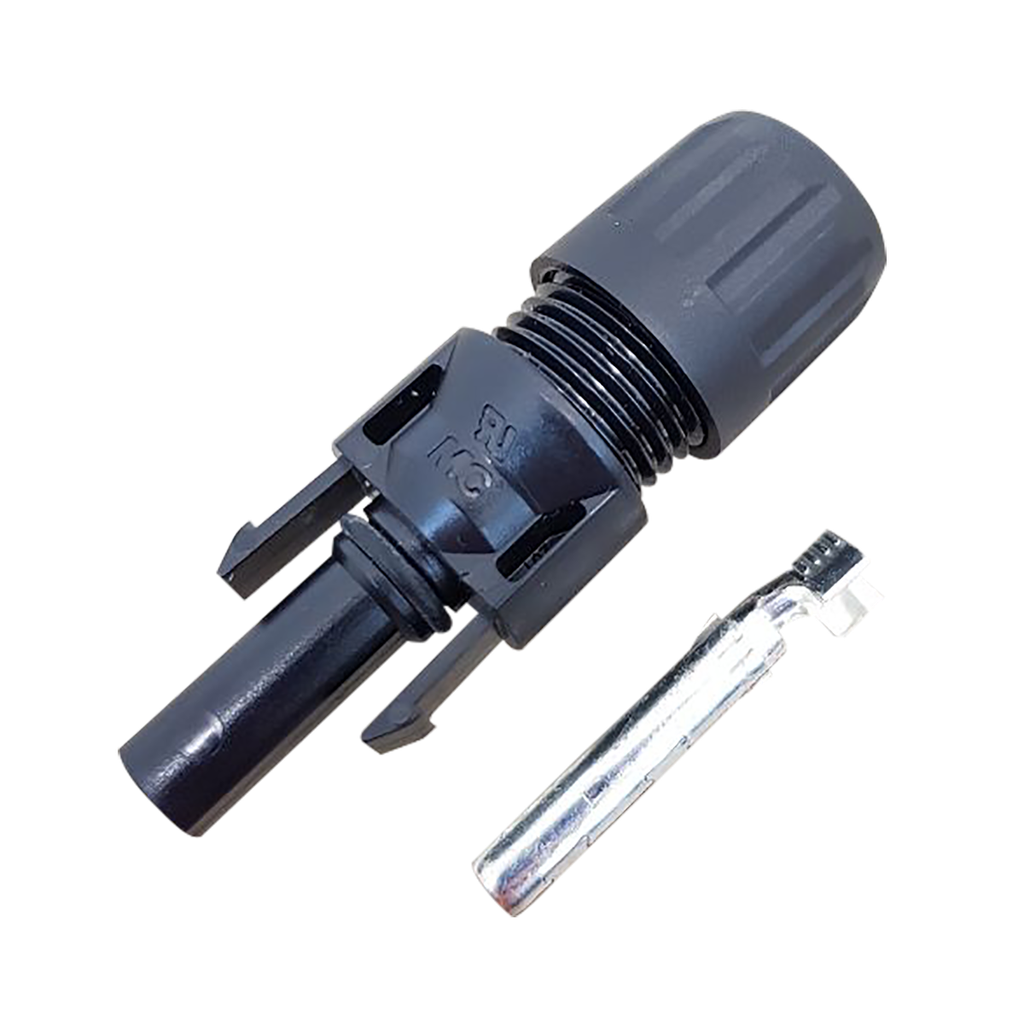

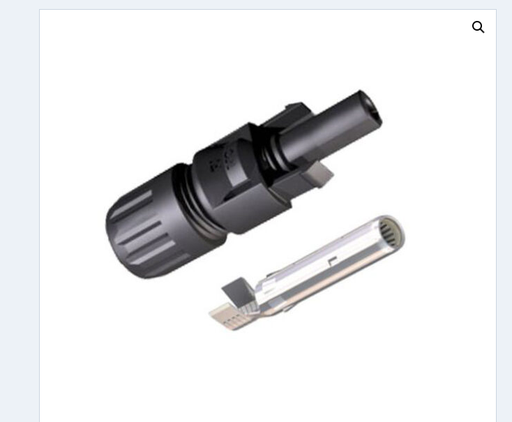

Genuine Stäubli MC4 male and female connectors fitted
MC4 rated 1000V DC (IEC), 30A on 4mm² cable
IP67 when mated
Use
Extends panel cables to the controller or inverter
Cut in half to make a positive and a negative lead of 0.5m each
Where to use it

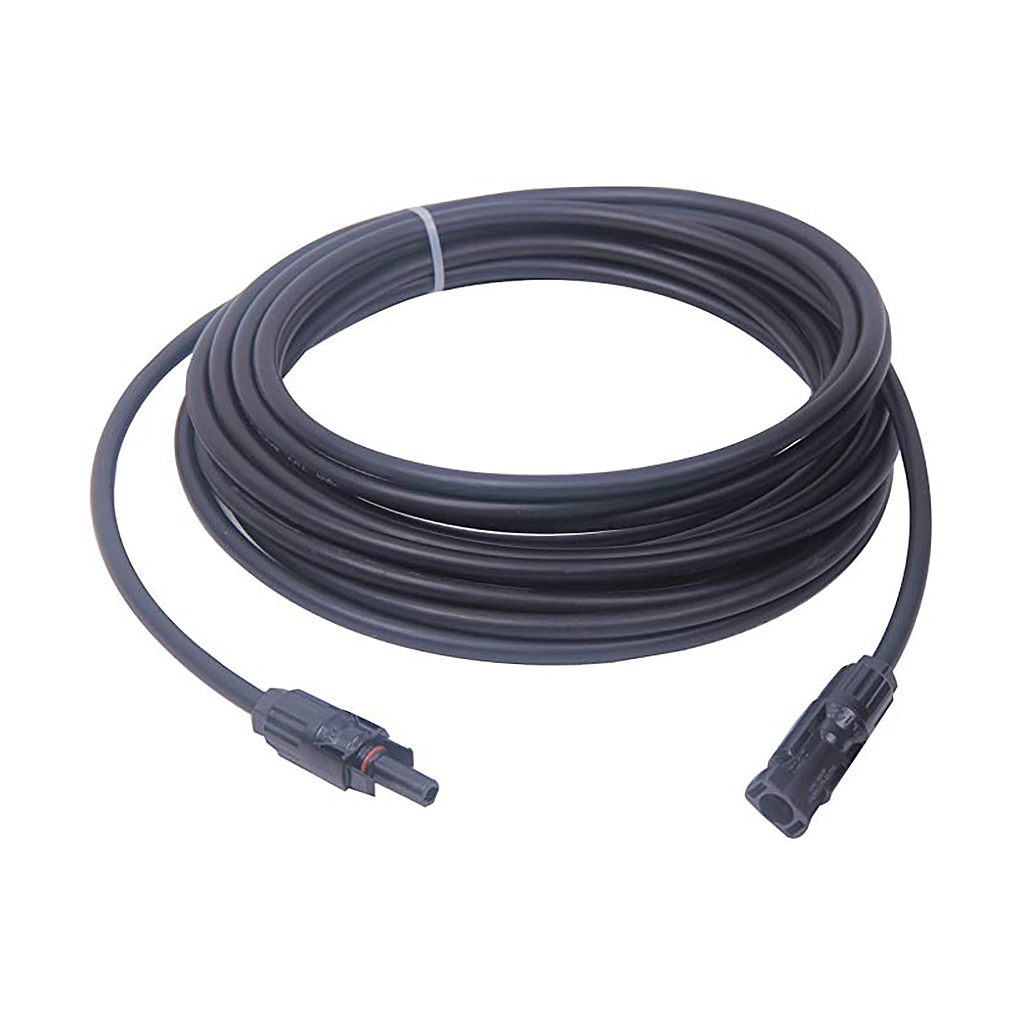

The Staubli Genuine 1m MC4 Extension Lead extends solar panel cables to the charge controller or inverter in grid and off-grid systems, caravans and portable panel setups.
Keep runs short or use thicker cable for low-voltage, high-current systems to limit voltage drop.
Dimensions
Length
1 m
Warranty
Manufacturer's warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Staubli
Stäubli Electrical Connectors (formerly Multi-Contact) invented the MC4 connector, the most widely used connector in solar PV. Genuine Stäubli MC4 connectors use the company's MULTILAM contact technology for low, stable contact resistance over the life of the system, and are certified to IEC and UL standards.
