H1Z2Z2-K solar PV cable compliant to EN 50618 and IEC 62930
Rated voltage 1500V DC / 1000V AC
57A maximum current per conductor at 30°C
1 x 4mm² single core cable
Sold per metre in one continuous length
Construction
Class 5 fine-stranded tinned copper conductors (56/0.285mm)
Cross-linked XLPO insulation (0.7mm) and XLPO sheath (0.8mm)
Black XLPO insulation and sheath
Halogen free and low smoke
Where to use it

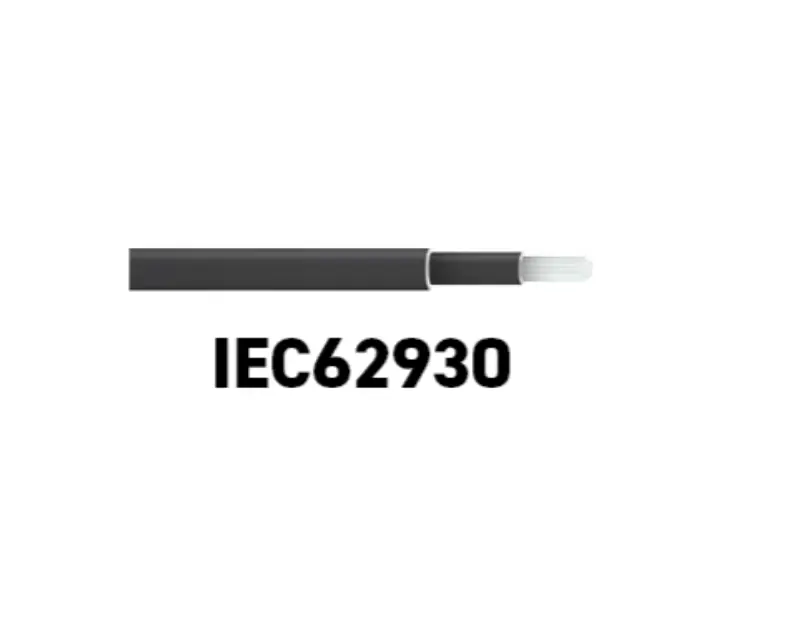

The Alvolta Solar Cable 4mm² Single IEC62930 is a single core PV cable for making up individual positive and negative runs, series links between panels and custom MC4 leads. Rated to 1500V DC and 57A at 30°C, it suits caravan, RV, 4WD and marine solar setups as well as off-grid and residential solar arrays.
Fine Class 5 tinned copper conductors keep it flexible for tight routing and crimp cleanly into MC4 connectors. Cross-linked XLPO insulation and sheath handle -40°C to +90°C ambient (120°C maximum conductor temperature), are rated AD7 and IPX7 for water resistance, and are halogen free and low smoke. Cut to length and supplied in one continuous run (allow 1-5mm for manual measuring), it's backed by a 1-year warranty.
Dimensions
Diameter
5.5mm
Length
Sold per metre
Safety features
Double insulated (XLPO insulation and sheath)
Halogen free, low smoke
Flame tested to EN 60332-1-2
AD7 & IPX7 water resistance
Warranty
1-year warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Single core cable (C4SR) carries one conductor, so you run separate positive and negative lengths - handy for series links between panels and making up MC4 leads. Twin cable (C4SOL, C6SOL, C10SOL) runs positive and negative together in one figure-8 cable, with a red-striped core for polarity, giving a neater, faster run from the panels to the controller or isolator.
Choose a size that handles your array current and keeps voltage drop low over the cable run. Maximum current per conductor at 30°C is 57A for 4mm², 72A for 6mm² and 98A for 10mm². For longer runs, step up a size to reduce voltage drop. Ratings must be derated for the installation method and ambient temperature - if you are unsure, message our team with your panel specs and run length.
Yes. The cable is rated to 1500V DC, so it is suitable for low voltage 12V, 24V and 48V solar setups as well as higher voltage residential and off-grid arrays. Size it for the current and run length rather than the voltage.
Yes. It is a double-insulated H1Z2Z2-K cable with cross-linked XLPO insulation and sheath, rated -40°C to +90°C ambient and AD7 & IPX7 for water resistance. Use conduit where the cable needs mechanical protection, in line with the wiring rules.
Alvolta Solar Cable is sold per metre and supplied in one continuous length. For example, ordering 5 x 1 metre gets you a single 5 metre length. Please allow 1-5mm for manual measuring.
