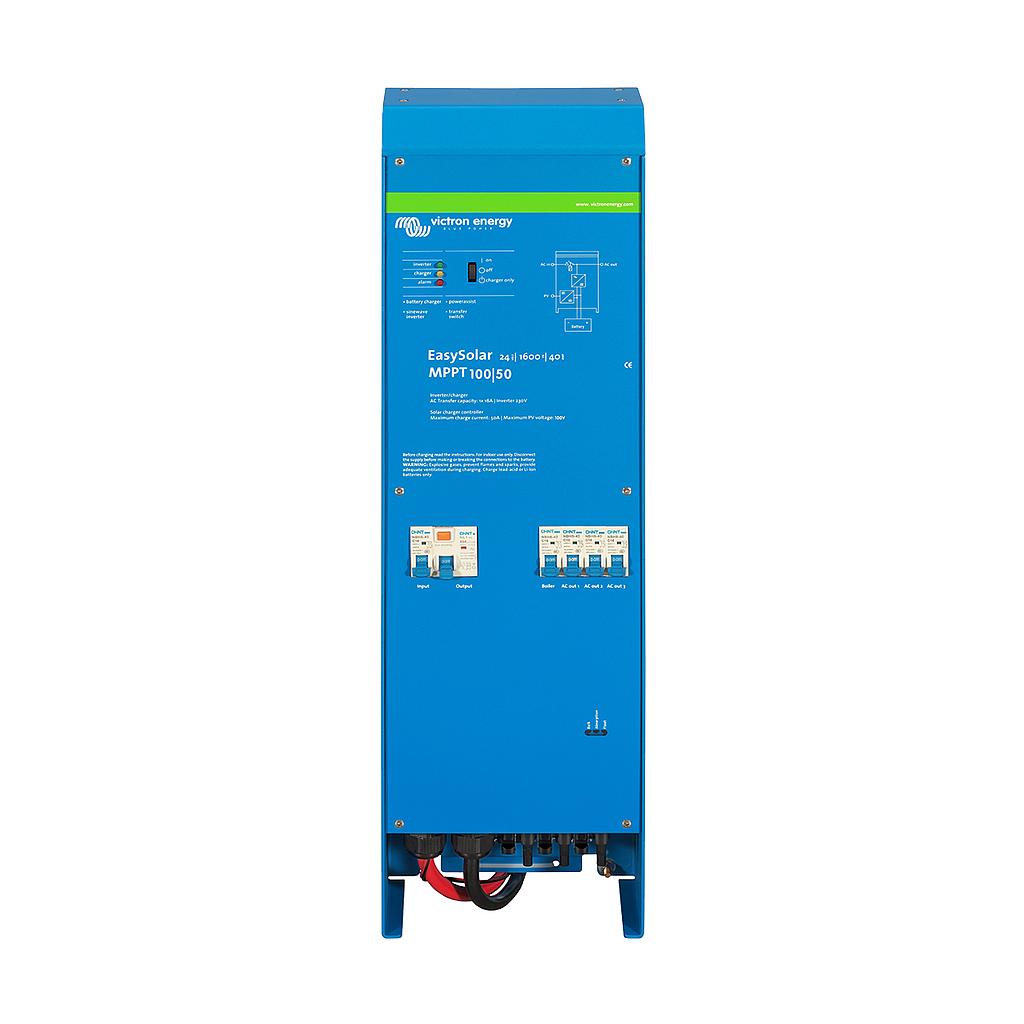

Victron EasySolar 12/1600/70-16 MPPT 100/50
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.

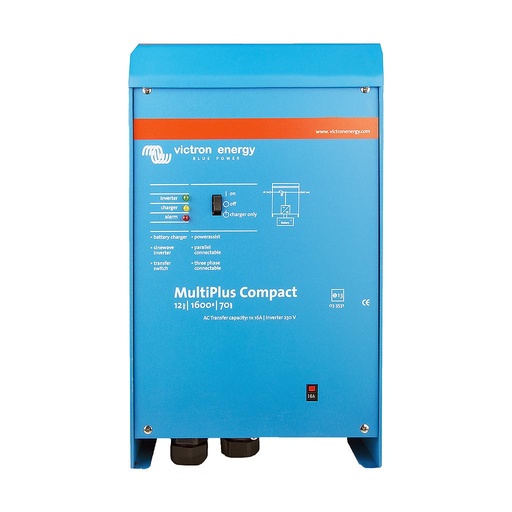

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications. Please see http://www.victronenergy.nl/support-and-downloads/software/
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
| Brand | Victron |
Inverter/Charger | |
Transfer switch | 16A |
Inverter | |
Input voltage range | 9.5 - 17V |
‘Heavy Duty’ output AC 0 | 16A |
Output AC 1, 2, 3 | Output Voltage: 230 VAC ± 2%, Frequency: 50Hz ± 0.1% |
Cont. output power at 25°C | 1600 VA / 1300 W |
Cont. output power at 40°C | 1200 W |
Peak power | 3000 W |
Maximum efficiency | 92% |
Zero load power | 8 W |
Zero load power in search mode | 2 W |
Charger | |
AC input | Input voltage range: 187 - 265 VAC, Input frequency: 45 - 65Hz, Power factor: 1 |
Charge voltage 'absorption' | 14.4 V |
Charge voltage 'float' | 13.8 V |
Storage mode | 13.2 V |
Charge current house Battery | 70 A |
Charge current starter battery | 4 (A) |
Battery temperature sensor | Yes |
Programmable relay | Yes |
Protection | a - g |
Solar Charge Controller | |
Model | MPPT 100/50 |
Maximum output current | 50 A |
Maximum PV power | 700 W |
Maximum PV open circuit voltage | 100 V |
Maximum efficiency | 98% |
Self-consumption | 10 mA |
Charge voltage 'absorption', default setting | 14.4 V |
Charge voltage 'float', default setting | 13.8 V |
Charge algorithm | Multi-stage adaptive |
Temperature compensation | -16 mV/°C |
Protection | a - g |
Common Characteristics | |
Operating temperature range | -20 to +50°C (fan-assisted cooling) |
Humidity (non-condensing) | Max 95% |
Enclosure | |
Material & colour | Aluminium, Blue RAL 5012 |
Protection category | IP21 |
Battery connection | Battery Cables of 1.5 m |
PV connection | Three Sets of MC4 (PV-ST01) PV Connectors |
230 V AC-connection | G-ST18i connector |
Weight | 15 kg |
Dimensions | 745 x 214 x 110 mm |
Standards | |
Safety | EN 60335-1, EN 60335-2-29, EN 62109 |
Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 |
Automotive directive | 2004/104/EC |
