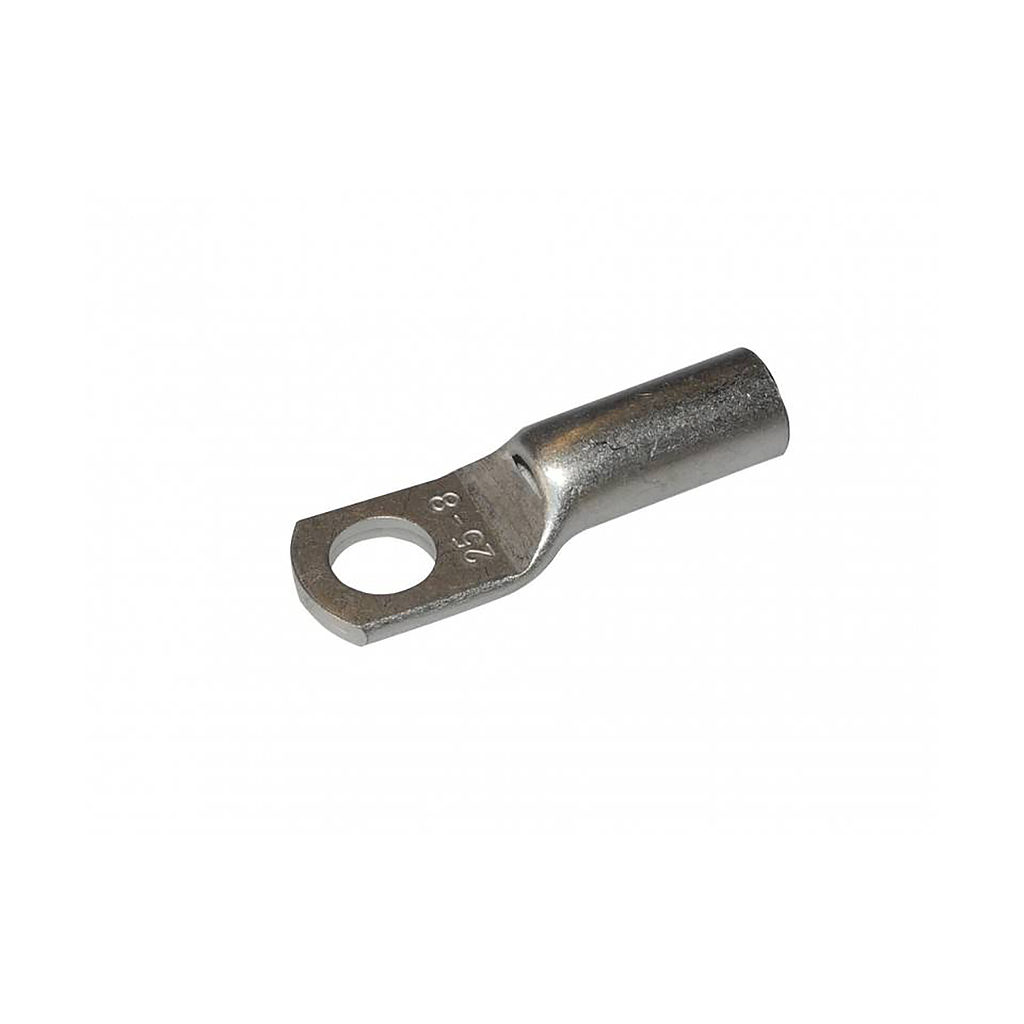

Bellmouth Cable Lug 25mm² X 10mm Stud (5)
Tinned copper bellmouth cable lugs for 25 mm² cable on an M10 stud. Pack of 5.
Bellmouth Cable Lug 25mm² X 10mm Stud (5)

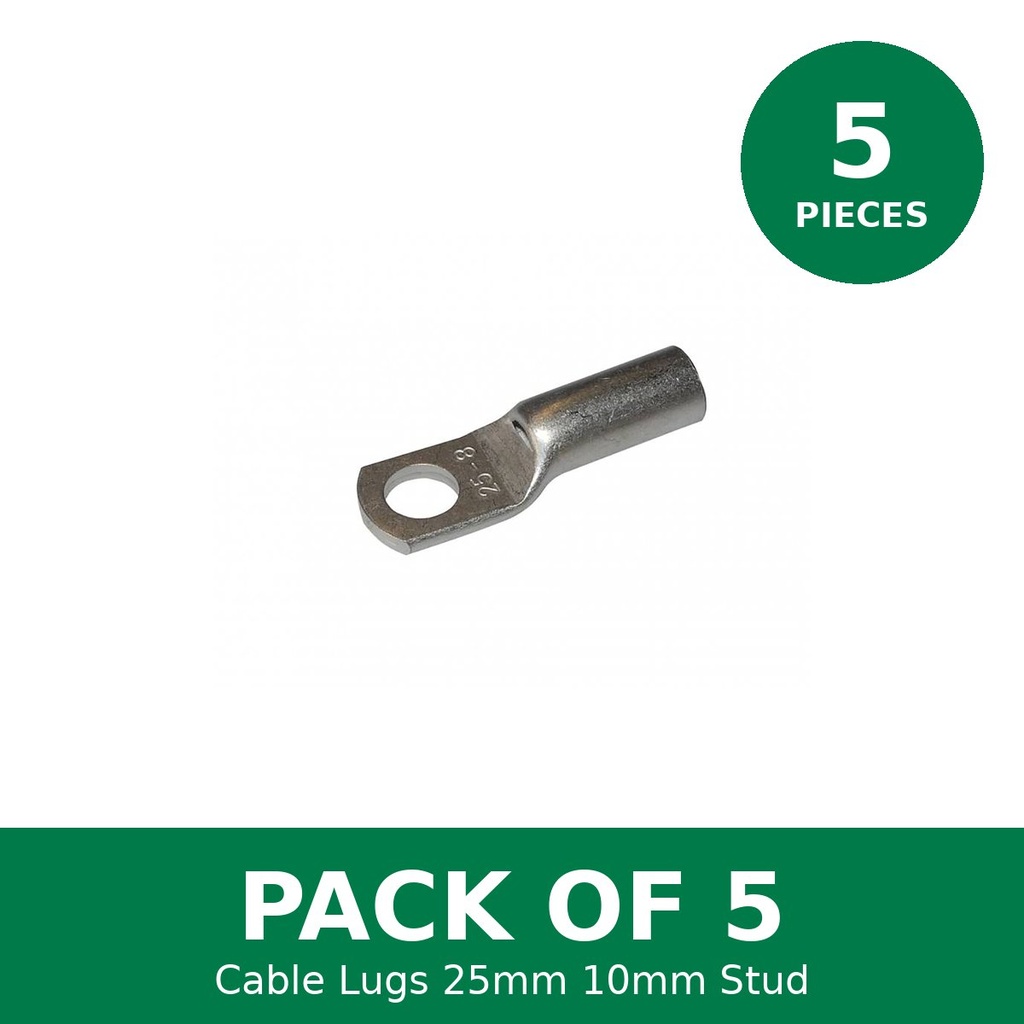

Pack Contents
- 5 x bellmouth copper cable lugs, 25 mm², M10 stud
- Price is per pack of 5
Features
- Supplied in a convenient pack of 5
- Bellmouth barrel entry makes fine-stranded flexible cable easy to insert without splayed strands
- Made from 99.9% pure, fully annealed copper so it crimps without cracking
- Electro-tin plated for corrosion resistance
- Inspection hole to confirm the cable is fully inserted
- Complies with AS/NZS 4325 Part 1
Where to use it
Tinned copper cable lugs terminate 25 mm² copper cable onto an M10 stud or bolt, such as battery terminals, busbars, isolators, fuse holders, inverters and chargers. Crimped correctly they give a low-resistance, high-current connection that stays tight under vibration. Ideal for 12V, 24V and 48V DC systems in 4WDs, caravans, boats and off-grid solar and battery installs. The pack of 5 is ideal for larger jobs or keeping spares on hand.
Product Dimensions
- Pack Quantity: 5 pieces (dimensions below are per lug)
- Cable Size: 25 mm²
- Stud Size: M10
- Total Length (L): 44 mm
- Palm Width (W): 16 mm
- Barrel Inner Diameter: 7.1 mm
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
