Bellmouth Cable Lug 70mm² X 8mm Stud (5)

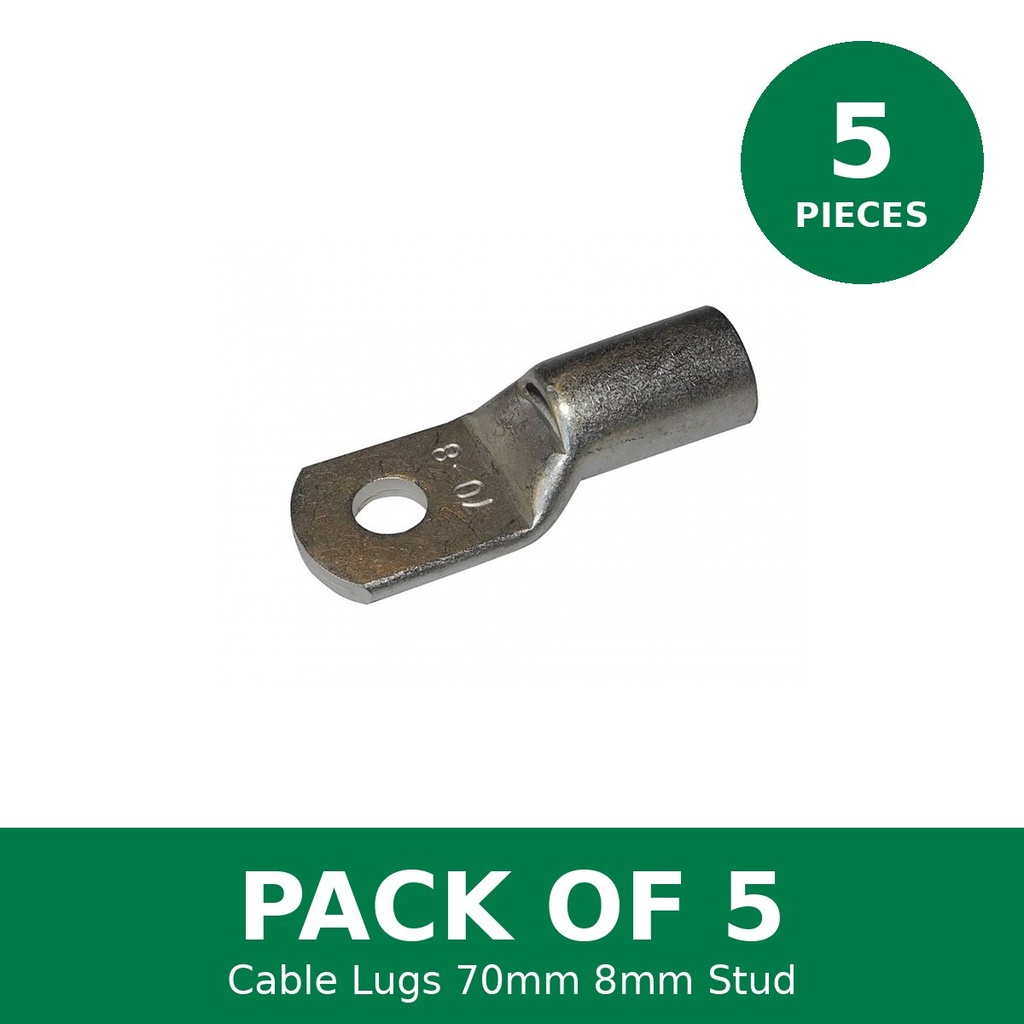

Pack of 5
Alvolta Logo
Bellmouth Cable Lug 70mm² X 8mm Stud (5)
Pack of 5
Alvolta Logo

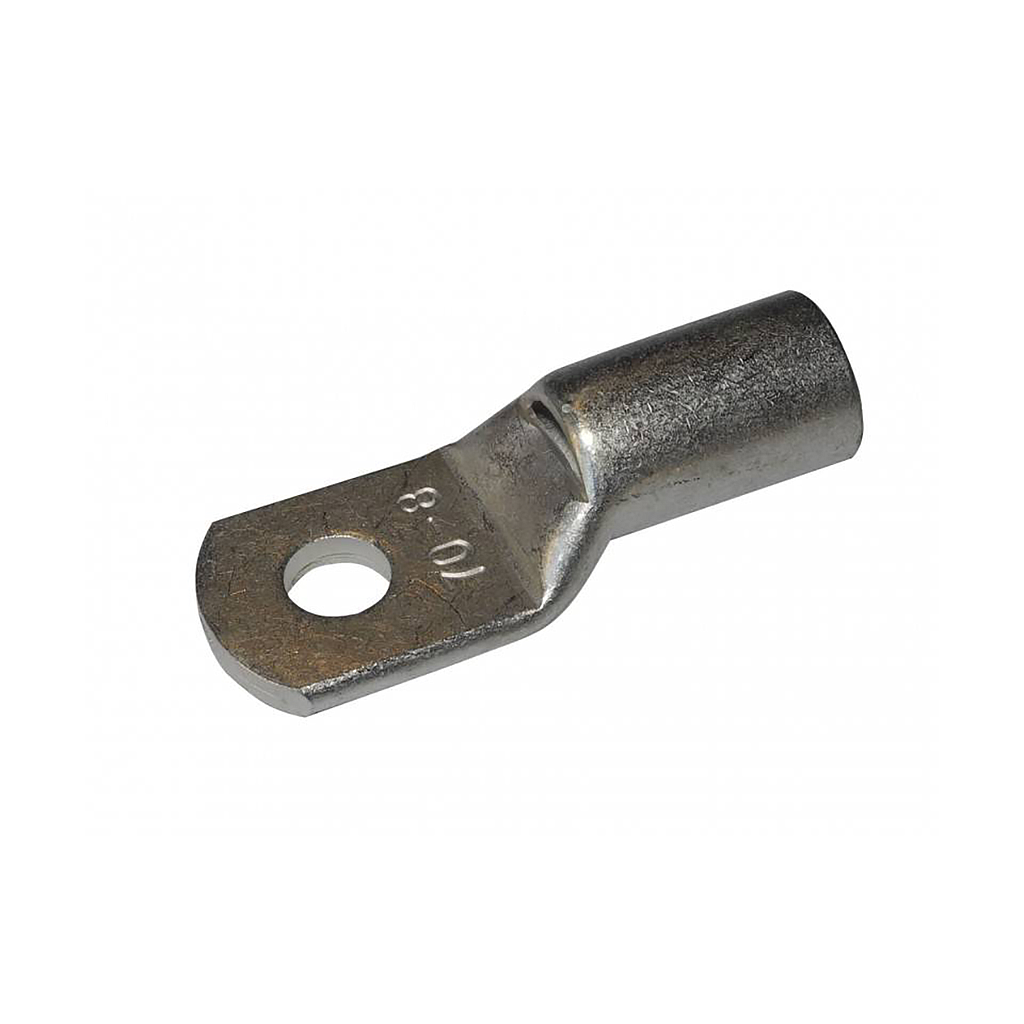

Bellmouth Cable Lug 70mm² X 8mm Stud (5)

https://www.powerproductsdirect.com.au/web/image/product.template/10548/image_1920?unique=ae89997
Tinned copper bellmouth cable lugs for 70 mm² cable on an M8 stud. Pack of 5.

This combination does not exist.

$ 21.90 - Inc GST 21.9 in stock AUD $ 21.90

Not Available For Sale

($ 21.90 / Unit)

Bellmouth tinned copper cable lug, 70mm², M8 stud, pack of 5

Rating :
(0.0)
In stock
Contact Us
HellermannTyton
S708_5
Cable & Accessories , Cable & Accessories , Cables & Accessories , Cables & Accessories , Lugs & Connectors

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Match two things: the cable size in mm² (for example 16mm² or 50mm²) and the stud or bolt size it fits over (for example M8). The cable size must match the lug barrel exactly so the crimp grips every strand, and the stud size should match your terminal so the lug sits flat and tight.

A bellmouth lug has a flared, funnel-shaped barrel entry. It makes it easy to insert fine-stranded flexible cable, which tends to splay after stripping, without strands catching outside the barrel. A standard (straight barrel) lug has a plain entry and suits regular stranded cable.

Use a lug crimper sized for the cable, such as a hexagonal or indent crimping tool. Hex crimpers give an even, all-round compression that suits tinned copper lugs. Hammer crimpers and pliers give inconsistent crimps that can heat up under high current.

Tin plating protects the copper from oxidation and corrosion, keeping a low-resistance connection over time. It is especially useful in damp, salty or high-humidity environments such as caravans, boats and outdoor battery boxes.

Product Specifications


Brand
HellermannTyton
HT Part No.
CL70-8BM (Art. 924-00653)
Pack Size
5 pieces
Type
Bellmouth copper cable lug
Cable Size
70 mm²
Stud Size
M8
Barrel Inner Diameter (ID)
11.3 mm
Material
Annealed copper, 99.9% pure (C11000)
Plating
Electro-tin, 5-10 microns
Conductivity
99.7% IACS
Operating Temperature
-55°C to 155°C
Standard
AS/NZS 4325 Part 1
Barcode
768127466801
