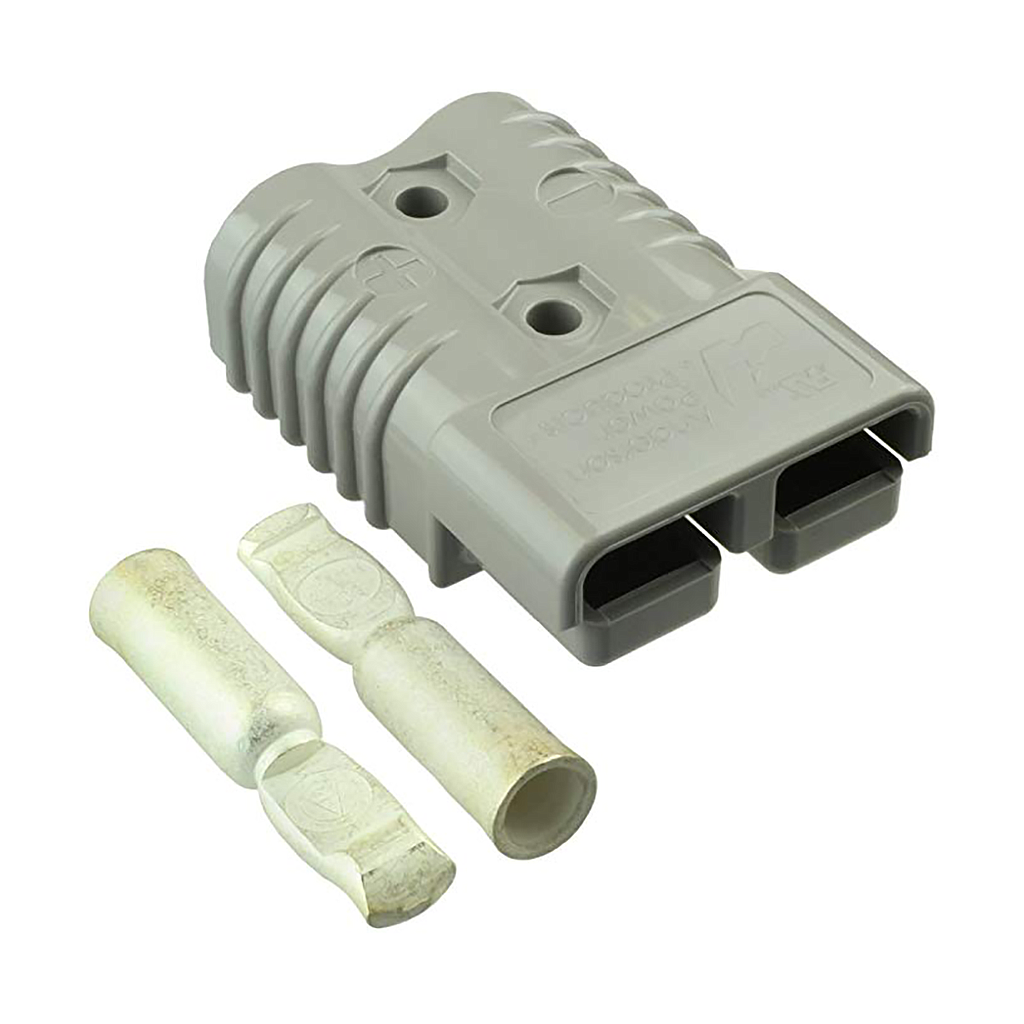

SB350 Anderson plug:
Anderson Plugs / Socket are the preferred heavy duty connection for all DC power distribution and battery connections. The gender less design allows you to quickly create custom, highly efficient connections for any DC and solar setup.
The one piece fully insulated plastic housing is rated at a huge 350amps. Designed to accept cable up to 00B&S or 67.4mm2, they are perfect for all your solar and charging needs. These trailer plugs also feature low resistance silver plated contacts capable of handling high currents with minimal loss.
The SB®350 is the largest connector in the series with power capabilities up to 450 amps with 4/0 wire. Wires ranging from #1/0 (50 mm²) to 300 mcm (152 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend. Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
The genderless design simply means each unit is a plug/socket - 2 units are required for a complete connection. There is a range of colours available to enable you to create easily discernible circuits. Each colour has a unique key, which can not be mis-connected. ie colours will only mate with themselves, red to red or blue to blue.
Each kit includes one housing and 2 contacts. You simply crimp your wire into the contact which is then inserted into the appropriate side ( - / +) of the housing. You now have a high quality, easy access, quick release connection point.
There is a complete range of Anderson accessories available including weatherproof covers and mounting bracket providing a practical solution for every situation. For common setups there is a variety of pre-made high current adapter leads such as alligator clamps, solar panel pv plug leads, battery terminal eyelets and even piggyback / double adapter leads.
Features:
- Great for battery or other applications where the ability to interrupt circuits is required
- Incendiary strong construction
- Low resistance silver plated contacts
- Gender less design allows multiple connections
- Impossible to connect reserve polarity
- Multiple colour / keyed options
- Accepts heavy duty cable (00B&S)
- Low Resistance Silver or Tin Plated Copper Contacts
*Please note we do not sell the contacts separately for the SB350. Images for display purposes only.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
