Alvolta AMI/Midi 60A Fuse Kit
https://www.powerproductsdirect.com.au/shop/60afusekit-alvolta-ami-midi-60a-fuse-kit-11073 https://www.powerproductsdirect.com.au/web/image/product.template/11073/image_1920?unique=867fb1aAMI/Midi kit with 2x modular midi fuse holders, 4x 60 A AMI fuses and 4x 16-6 copper lugs
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Alvolta AMI/Midi 60A Fuse Kit
Kit features
- Protects two separate circuits up to 60A
- 2x ALV-FHM Modular AMI/Midi Fuse Holders
- 4x AMI60 60A AMI/Midi fuses (two fitted, two spares)
- 4x 16mm² bellmouth cable lugs
- Suits 12-48V systems
Fuse features
- 60A AMI/Midi bolt-in fuse
- Rated 80V DC or less
- 2000A interrupting rating at 80V DC
- Inspection window shows when a fuse has blown
- Premium copper alloy terminals
- Compliant with ISO 8820-5 / GB/T31465.5
Holder features
- Part of the Alvolta Modular Fuse Holder System
- Joins to other holders with Alvolta linking plates
- M5 nickel-plated copper studs
- Red silicone protective cover
- Rated up to 400A, suitable for 48V systems
Where to use it
The Alvolta AMI/Midi 60A Fuse Kit gives you everything needed to fuse two separate circuits in a 12, 24 or 48V system. It suits loads such as DC-DC chargers, solar controller outputs and small inverters in caravans, camper trailers, 4WDs, boats and off-grid setups, and the two spare fuses mean you're covered on the road if one blows.
Choose the fuse to protect the cable, not the device: it should be rated at or below the cable's current capacity and above the normal load. Mount the holders as close as possible to the battery or power source, and add Alvolta linking plates to join several holders into one compact fuse block with a common feed. Each holder has a red silicone cover over the fuse and terminals, and the kit is backed by a 1-year warranty.
What's in the box

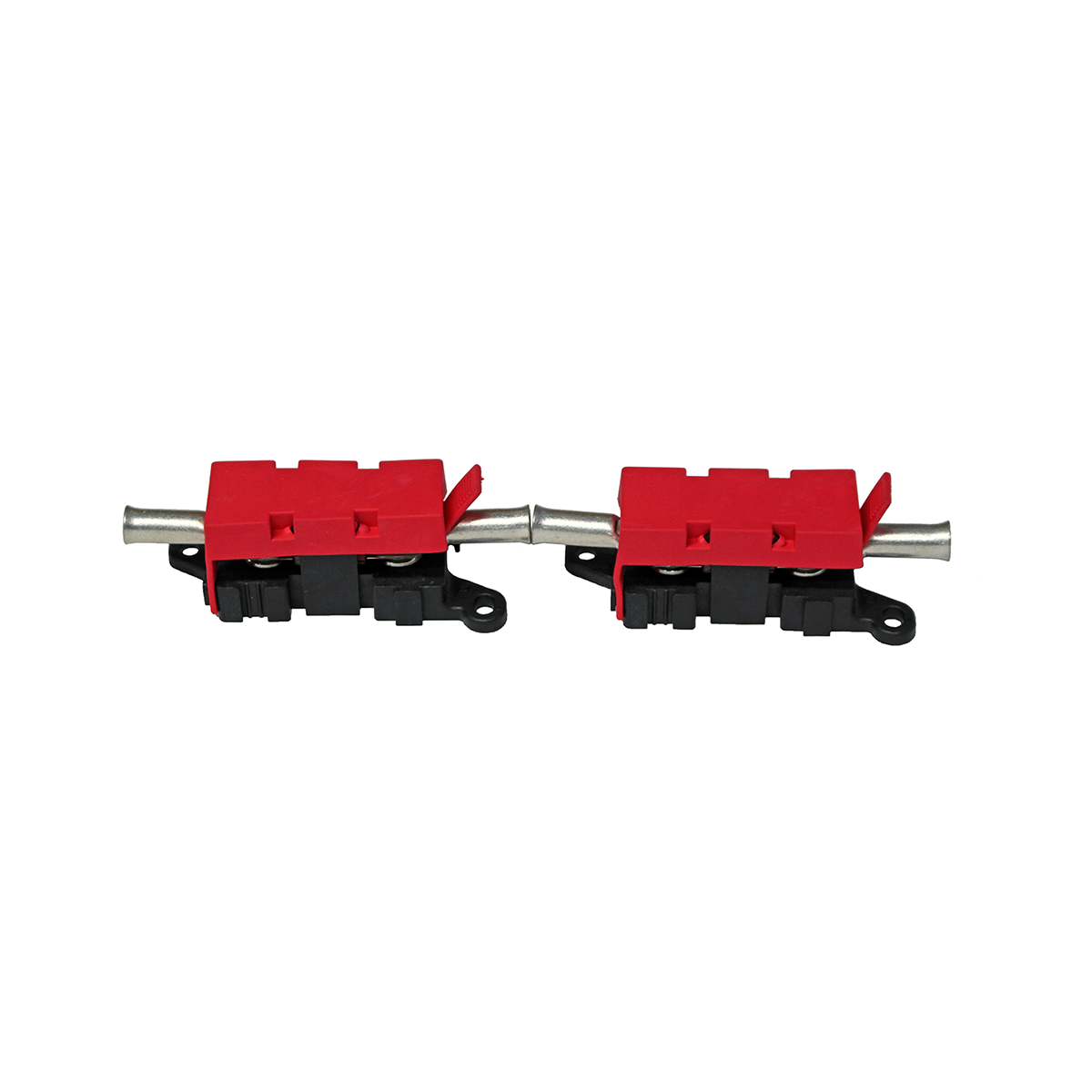

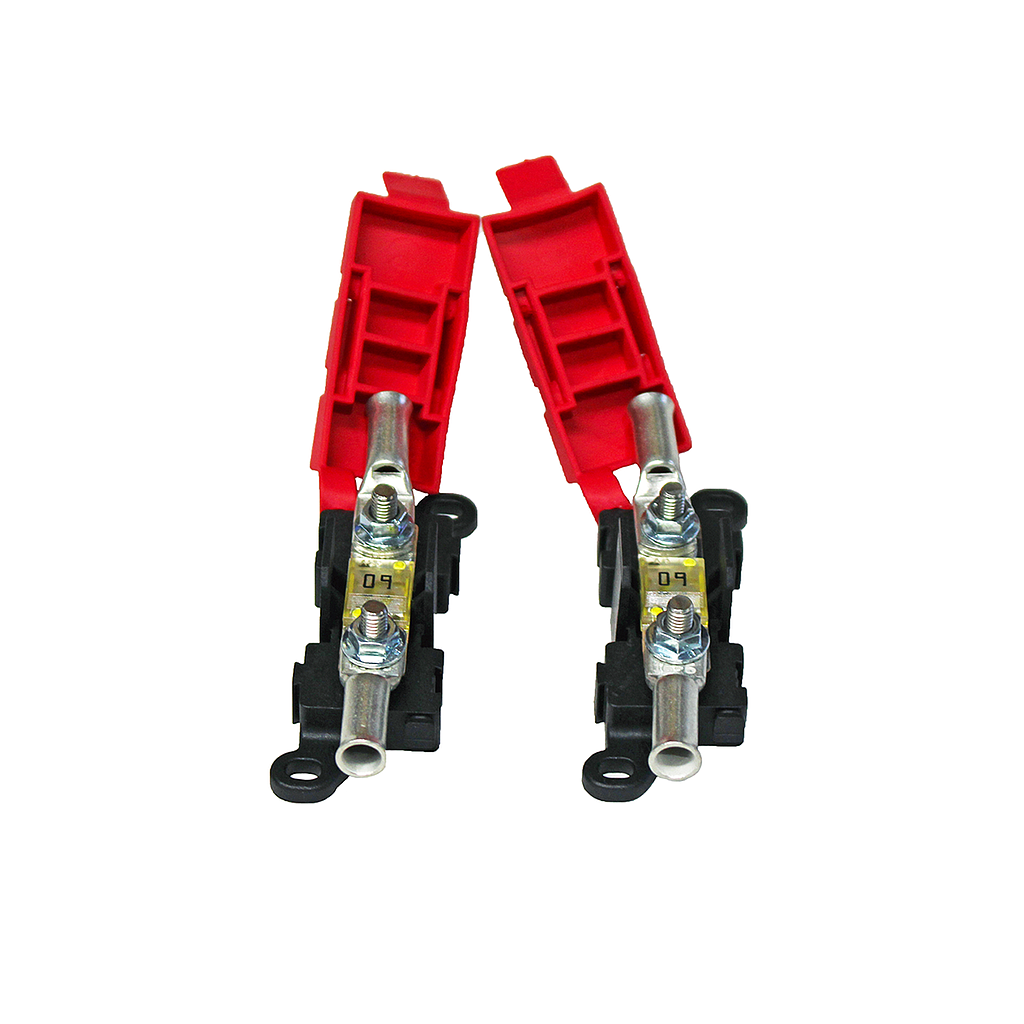

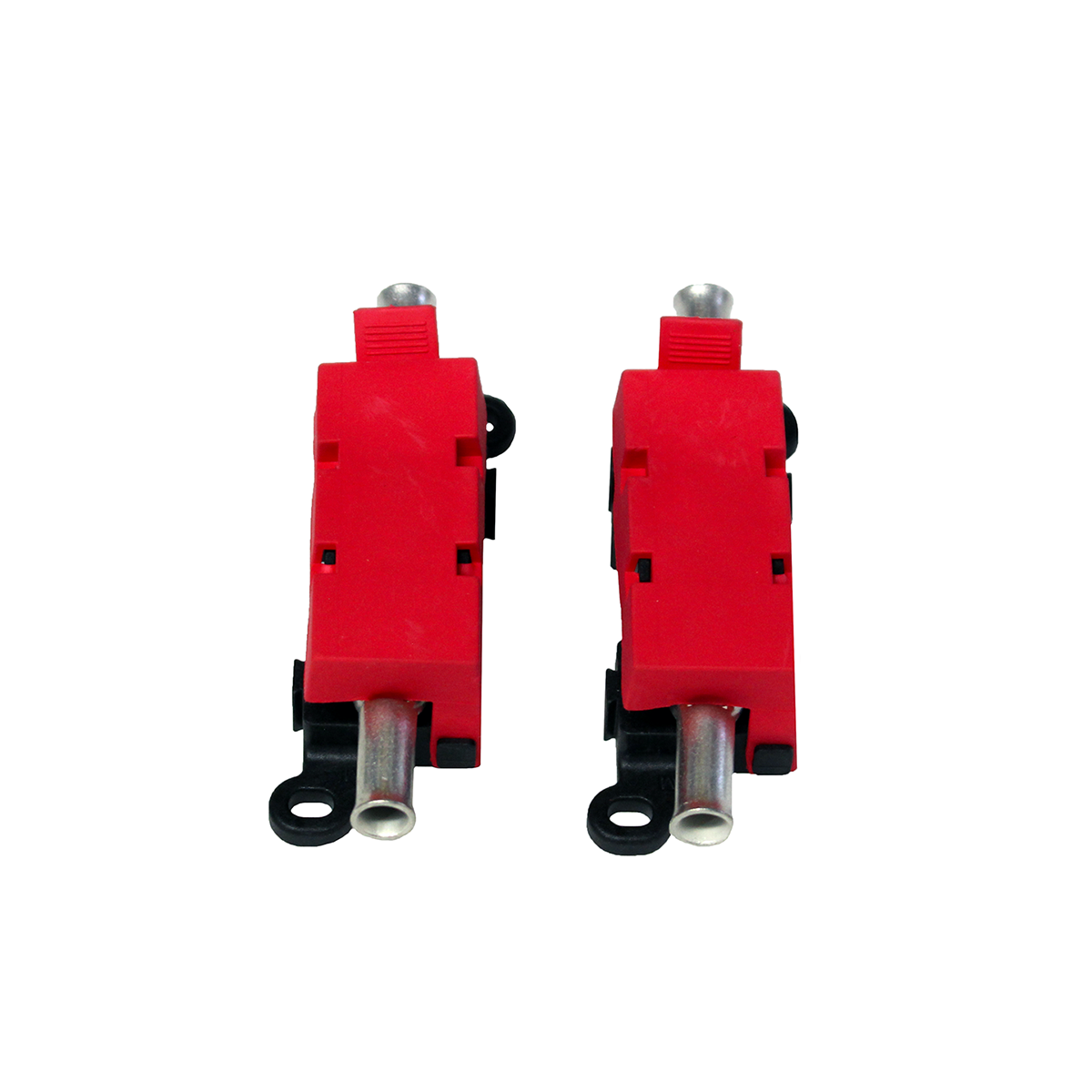

- 2x ALV-FHM Alvolta Modular AMI/Midi Fuse Holder

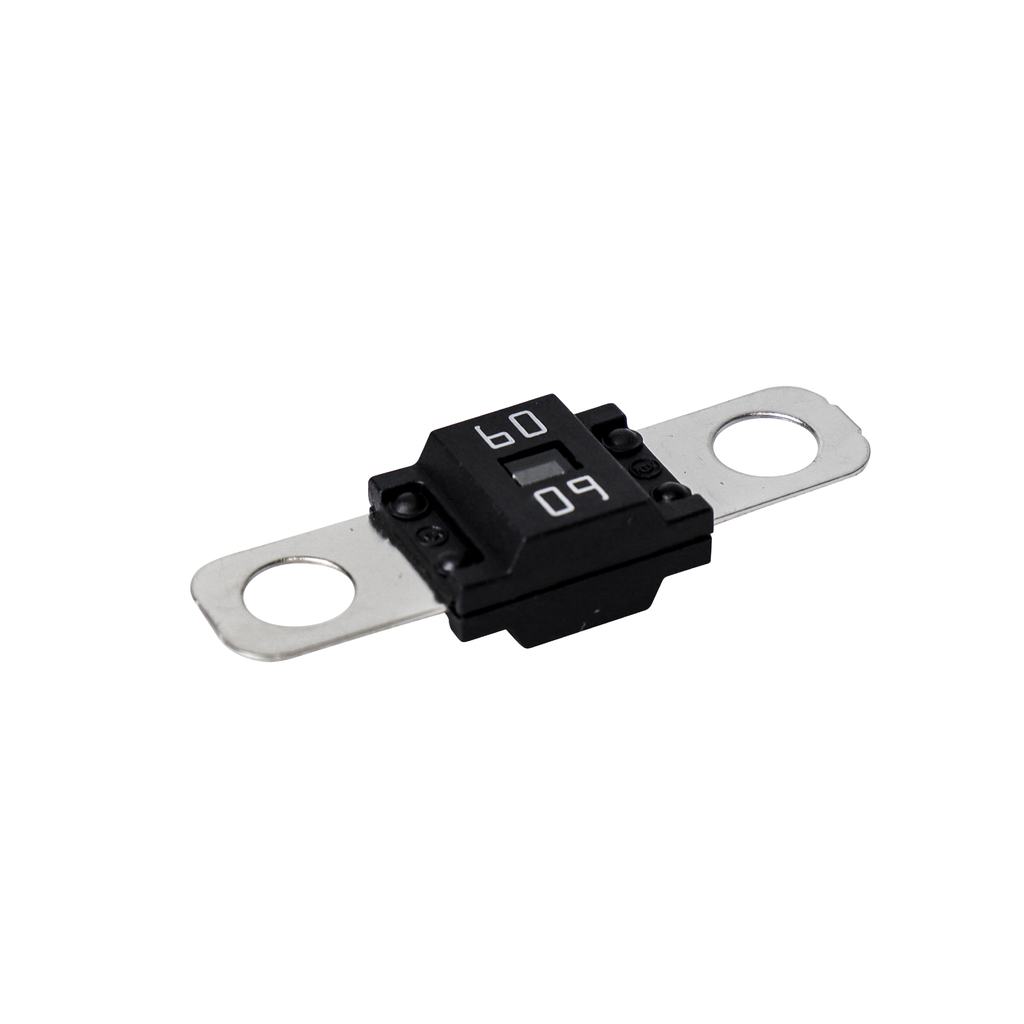

- 4x AMI60 Alvolta AMI/Midi 60A Fuse

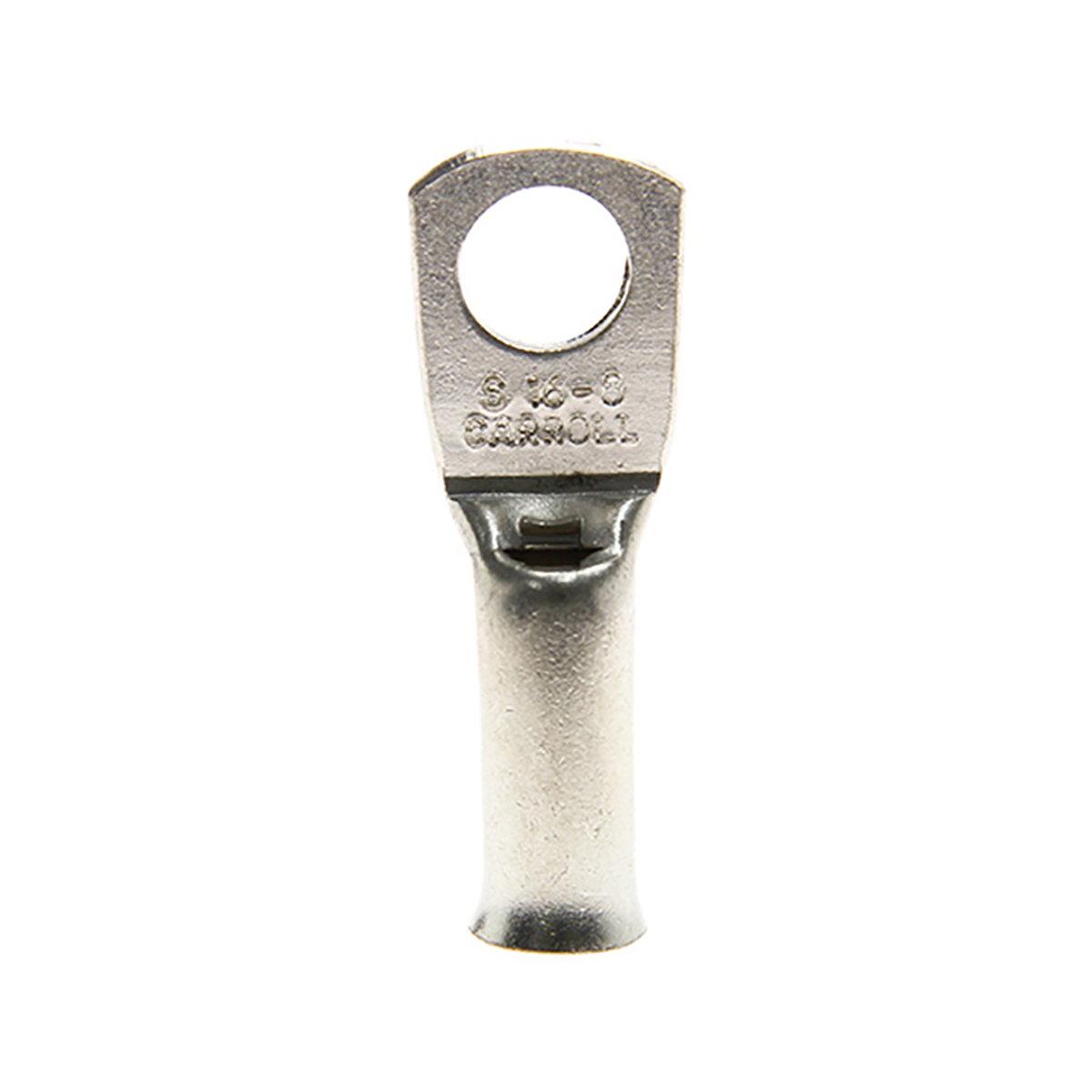

- 4x S166BM 16mm² Bellmouth Cable Lug
Dimensions
Holder width | 34 mm |
Holder length | 79 mm |
Holder height | 26 mm |
Fuse body width | 10 mm |
Fuse overall width (terminals) | 12.1 mm |
Fuse length | 41 mm |
Fuse depth | 8 mm |
Safety features
- Fuse compliant with ISO 8820-5 / GB/T31465.5
- UL94-V0 flame-rated fuse housing
- Fuse inspection window
- Protective cover over live terminals
Warranty
- 3-year warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
AMI (also known as Midi) fuses are compact bolt-down fuses designed for medium-current DC circuits. They’re widely used in automotive, 4WD, caravan, and marine applications to protect accessories such as DC-DC chargers, lighting systems, and smaller inverters.
Select a fuse that’s rated slightly above your circuit’s maximum continuous current draw. For example, a 40A circuit should use a 50A fuse. Always check that the fuse rating matches your cable gauge and the current-handling capacity of your connected equipment.
Yes, AMI/Midi fuses are ideal for off-road, marine, and mobile installations. Their bolt-down design ensures a secure, vibration-resistant connection, making them perfect for 4WDs and camper setups travelling across rough Australian terrain.
A modular AMI/Midi fuse holder system is a compact, bolt-down fuse mounting solution designed to hold AMI (also known as Midi) fuses. The modular design allows multiple holders to be linked together, creating a clean and customisable fuse block for powering and protecting multiple circuits in 12V and 24V DC systems.
These fuse holders are commonly used in automotive, 4WD, caravan, camper, and marine electrical systems. They’re perfect for protecting accessories such as DC-DC chargers, solar controllers, lighting circuits, and inverters, while keeping wiring neat and organised in compact installations.
A modular system offers flexibility and scalability, and you can easily add or remove fuse positions as your setup expands. It also improves safety and serviceability, keeps fuses accessible, and provides a professional, space-saving installation that’s ideal for modern off-grid and vehicle power systems.
Product Specifications
Model | 60AFUSEKIT |
Kit Contents | 2x ALV-FHM, 4x AMI60, 4x S166BM |
Fuse Rating | 60A |
Fuse Type | AMI/Midi |
Fuse Voltage Rating | 80 V DC or less |
Interrupting Rating | 2000 A at 80 V DC |
Typical Voltage Drop | 110 mV |
Fuse Mounting Torque | 3.5 - 3.8 N.m |
Fuse Housing | PA66+30GF (UL94-V0) |
Fuse Terminal | Copper Alloy |
Operating Temperature | -40°C to +125°C |
Fuse Compliance | ISO 8820-5 / GB/T31465.5 |
Fuse Dimensions | 41 x 10 x 8 mm (12.1 mm wide across the terminals) |
Holder System Voltage | Suitable for 48V systems |
Holder Maximum Current | 400A |
Holder Stud | M5 (5mm), nickel-plated copper |
Holder Cover | Red silicone |
Holder Base | PBT Plastic |
Holder Colour | Black with Red Cover |
Holder Dimensions | 79 x 34 x 26 mm |
Cable Lugs | 16mm² bellmouth, 6mm stud hole |
Warranty | 1 Year |
