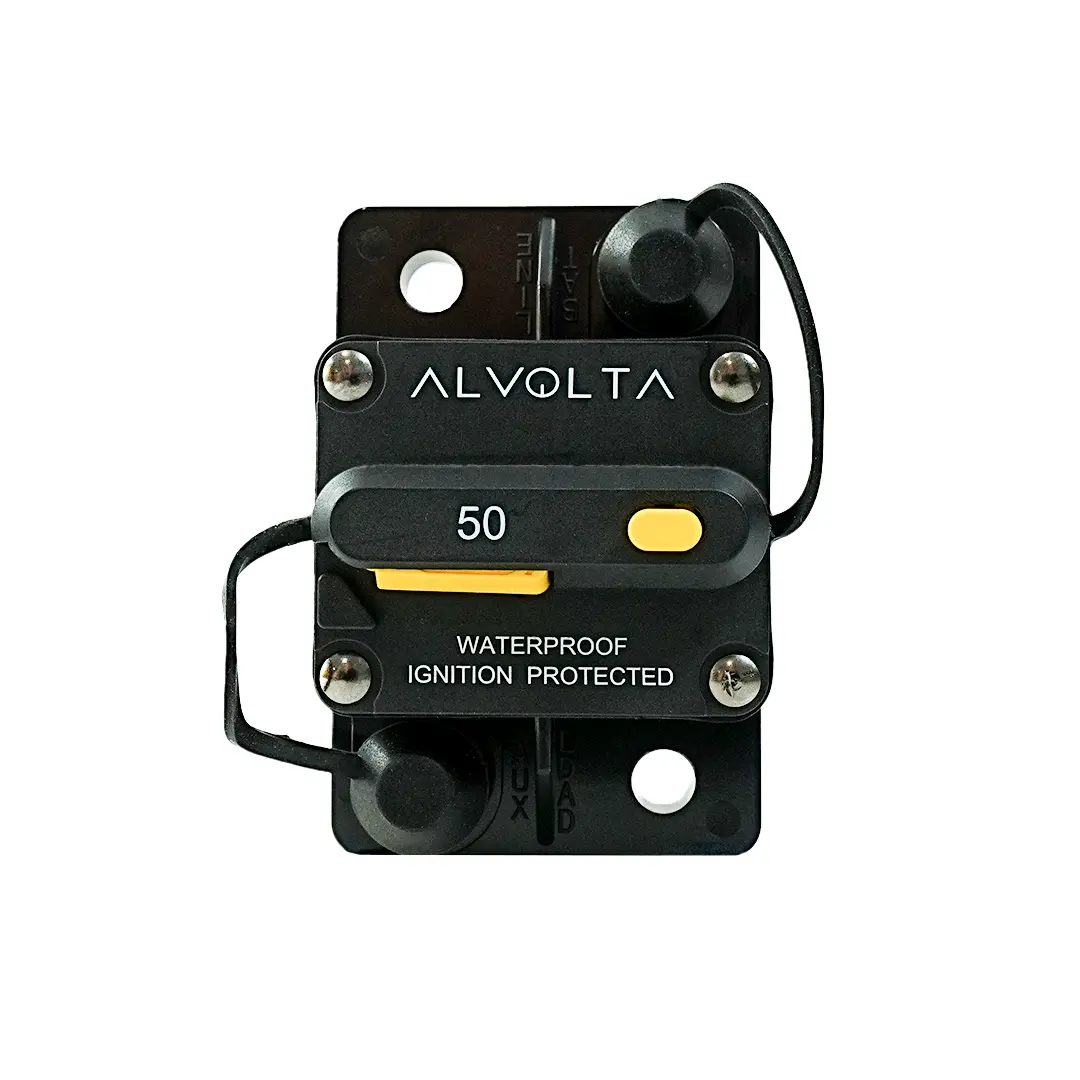

Alvolta 50A Surface Manual Reset Circuit Breaker
50A surface mount manual reset circuit breaker with ON/OFF, M6 studs, IP67, up to 48V DC
Alvolta 50A Surface Manual Reset Circuit Breaker
Breaker features
- 50A thermal trip with manual ON/OFF
- Rated 48V DC
- Interrupting capacity 5kA at 18V, 3.5kA at 48V, 1kA at 80V DC
- Type III with push-to-trip button
Build
- M6 terminal studs
- Surface mount with M6 mounting holes
- IP67 rated
- UL94-V0 rated thermoplastic housing
- Compliant with SAE J553, J1171, J1625, J1428, UL1500
Where to use it
The Alvolta 50A Surface Manual Reset Circuit Breaker protects DC cables and doubles as an ON/OFF switch, so it suits circuits such as fridges, DC-DC chargers, solar controller outputs, inverters and auxiliary batteries in 12-48V systems in caravans, motorhomes, 4WDs, boats and off-grid setups. After a trip it stays off until you reset it, so you can check the fault first.
Choose the rating to protect the cable: at or below the cable's current capacity and above the normal load. It surface mounts through M6 holes, takes cables on M6 studs, is IP67 rated with an operating range of -32°C to +82°C, and is backed by a 1-year warranty.
Dimensions
Width | 48.2 mm |
Height | 74 mm |
Depth | 35.8 mm |
Weight | 0.14 kg |
Safety features
- IP67 rated
- Compliant with SAE J553, J1171, J1625, J1428, UL1500
- Push-to-trip manual trip button
Warranty
- 1-year warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
