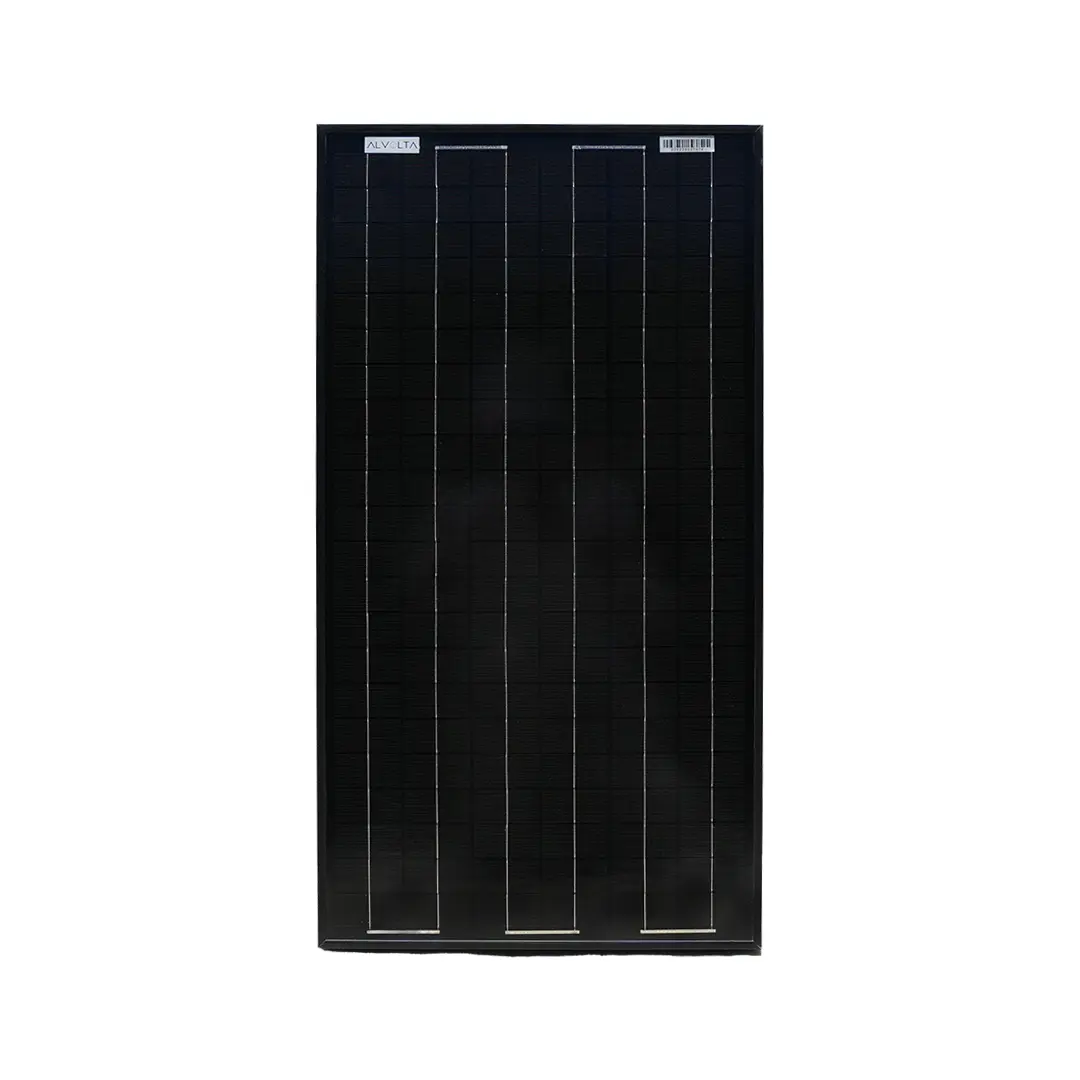

Alvolta Eclipse Max 50W Solar Panel
Fixed panel with black frame for 12 / 24 / 48 V systems | 760 x 410 x 35 mm
Alvolta Eclipse Max 50W Solar Panel
Performance features
- 50 W maximum power output
- 22.7% efficiency rating
- Suitable for 12 V / 24 V / 48 V systems
- Compatible with some MPPT solar regulators*
*These panels are high voltage. Please check the MPPT spec sheet to ensure VOC is compatible with the solar panel's output voltage.
Solar cell features
- A-grade monocrystalline solar cells
- Tempered glass for improved protection and resistance against weather
- Fixed solar panel design for improved durability
Frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
Inclusions
- IP65-rated sealed junction box
- MC4-style connectors
- 900 mm of 2.5 mm² output cable
Doesn't include a solar regulator.
Where to use it
Designed to maintain and charge 12V, 24V or 48V batteries efficiently, it is perfect for permanent solar installations. Mount to 4x4 roof racks, on the roof or deck of your caravan, motorhome or boat.
Ideal for use in camping, 4WD touring, caravanning, and marine applications or low-power off-grid applications.
Durable and weather-resistant, Eclipse panels provide a set-and-forget solution for continuous solar power.
Dimensions
Width | 410 mm |
Height | 760 mm |
Depth | 35 mm |
Weight | 3.36 kg |
Safety features and certifications
- 2011/ 65/ EU and amending directive (EU)2015/863
- EN IEC 62368-1:2020+A11:2020
Warranty
- 5-Year Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
