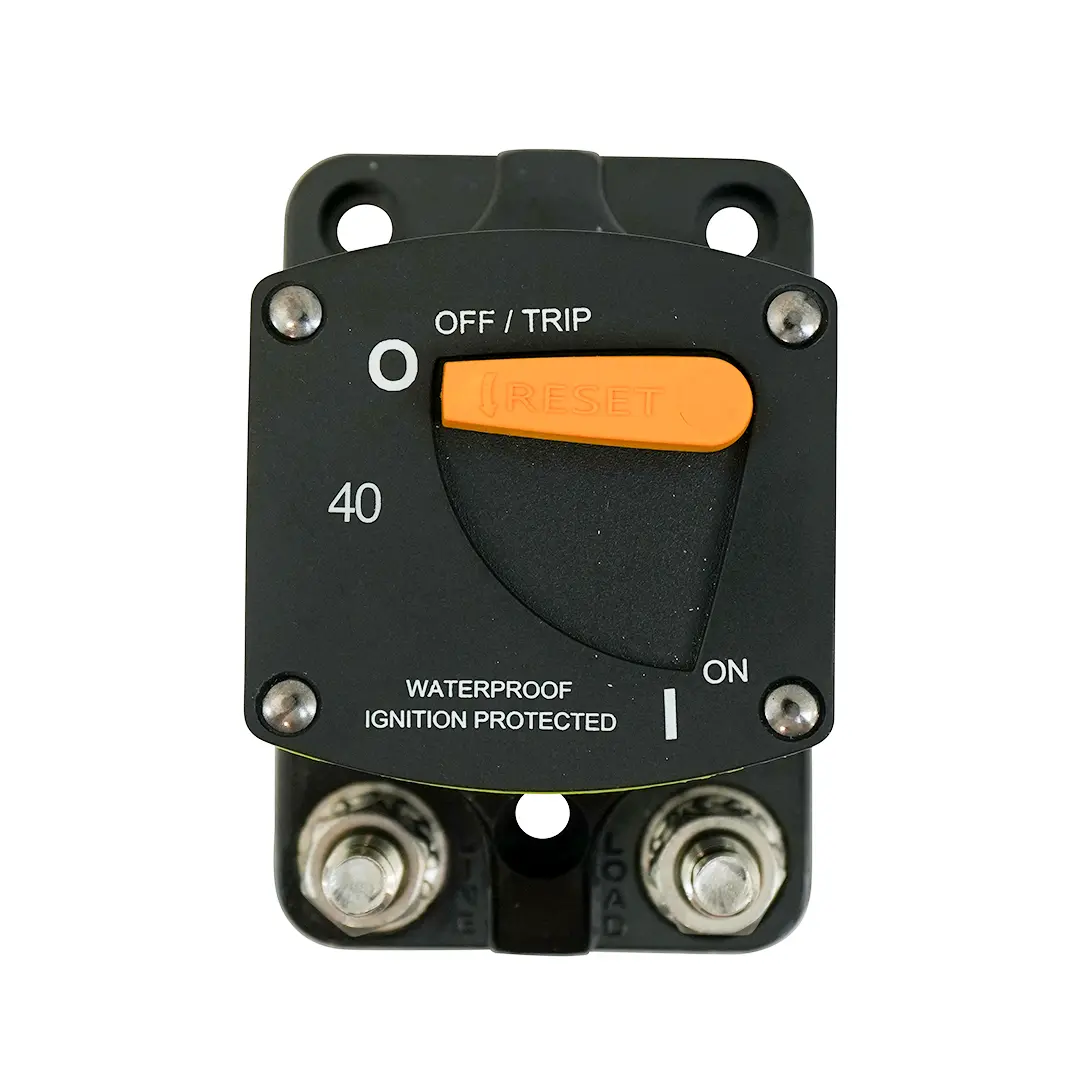

Alvolta 40A Heavy Duty Manual Reset Circuit Breaker
40A heavy duty surface mount manual reset circuit breaker, M8 studs, IP67, up to 48V DC
Alvolta 40A Heavy Duty Manual Reset Circuit Breaker
Breaker features
- 40A thermal trip, manual reset
- Rated up to 48V DC
- Interrupting rating 5kA at 14V, 3kA at 24V, 1.5kA at 48V DC
- Type III with push-to-trip button, so it can also be used to switch the circuit off
Build
- M8 terminal studs
- Surface mount with M4 mounting holes
- IP67 rated
- UL94-V0 rated thermoplastic housing
- Compliant with SAE J553, SAE J1171, UL1500 and ABYC E-11
Where to use it
The Alvolta 40A Heavy Duty Manual Reset Circuit Breaker protects high-current DC cables, such as battery links, inverter feeds, DC-DC charger inputs and winch circuits, in 12-48V systems in boats, caravans, motorhomes, 4WDs and off-grid setups. Once tripped it stays off until you reset it, so you can find the fault first, and the push-to-trip button lets you use it as an isolation switch.
Choose the rating to protect the cable: at or below the cable's current capacity and above the normal load. It surface mounts through M4 holes, takes cables on M8 studs, is IP67 rated with an operating range of -40°C to +85°C, and is backed by a 1-year warranty.
Dimensions
Width | 59.1 mm |
Height | 87.9 mm |
Depth | 48.2 mm |
Weight | 0.22 kg |
Safety features
- IP67 rated
- Compliant with SAE J553, SAE J1171, UL1500 and ABYC E-11
- Push-to-trip manual trip button
Warranty
- 1-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
