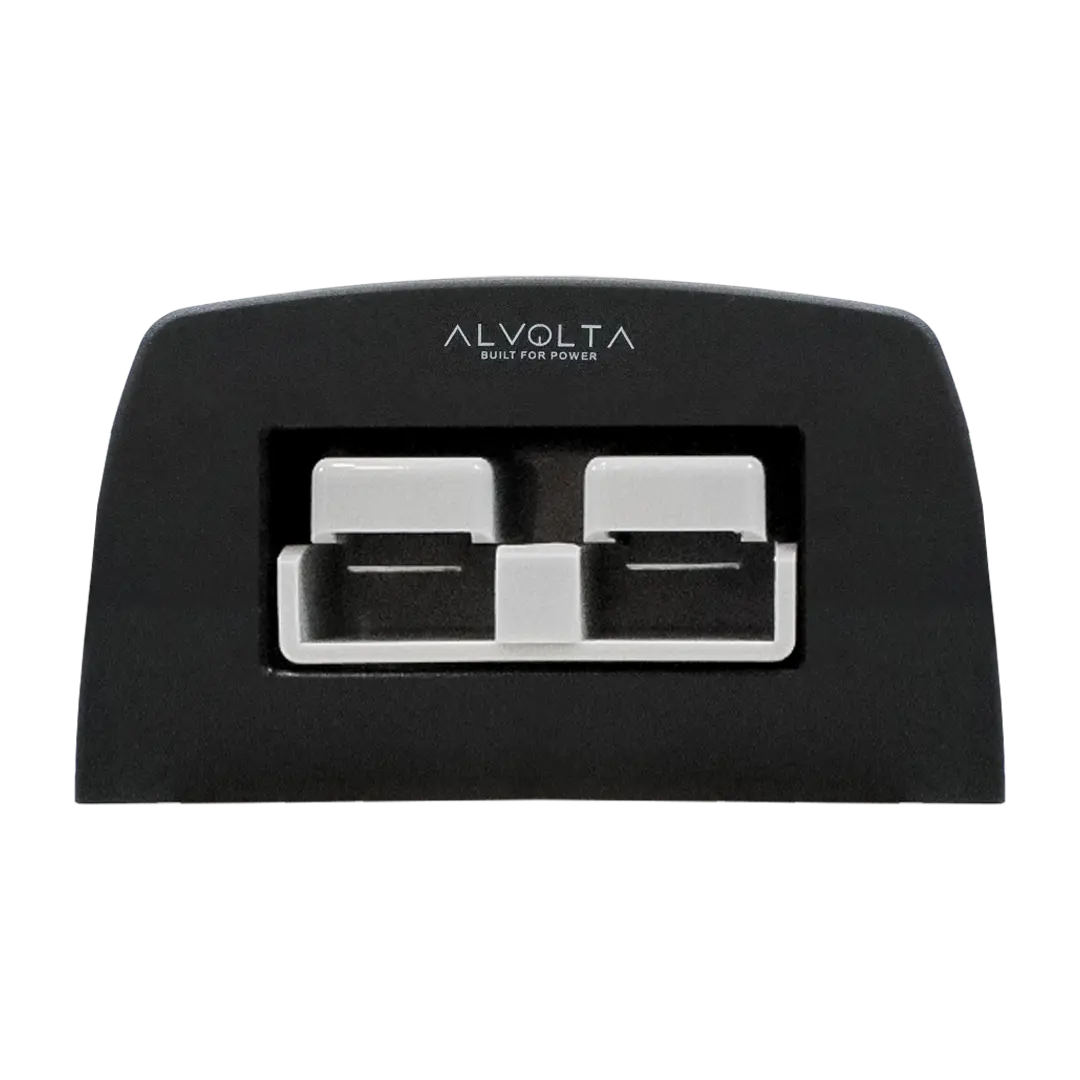

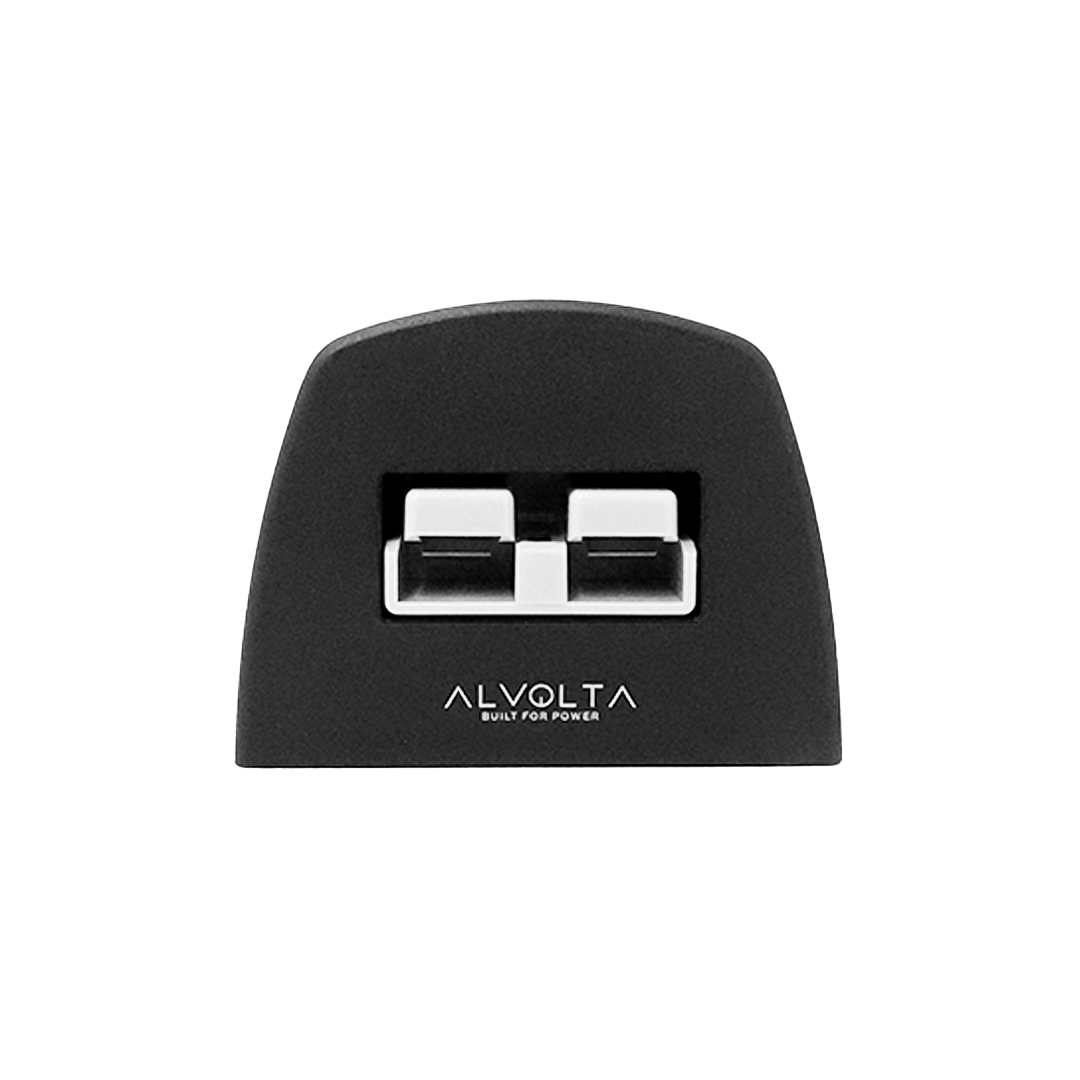

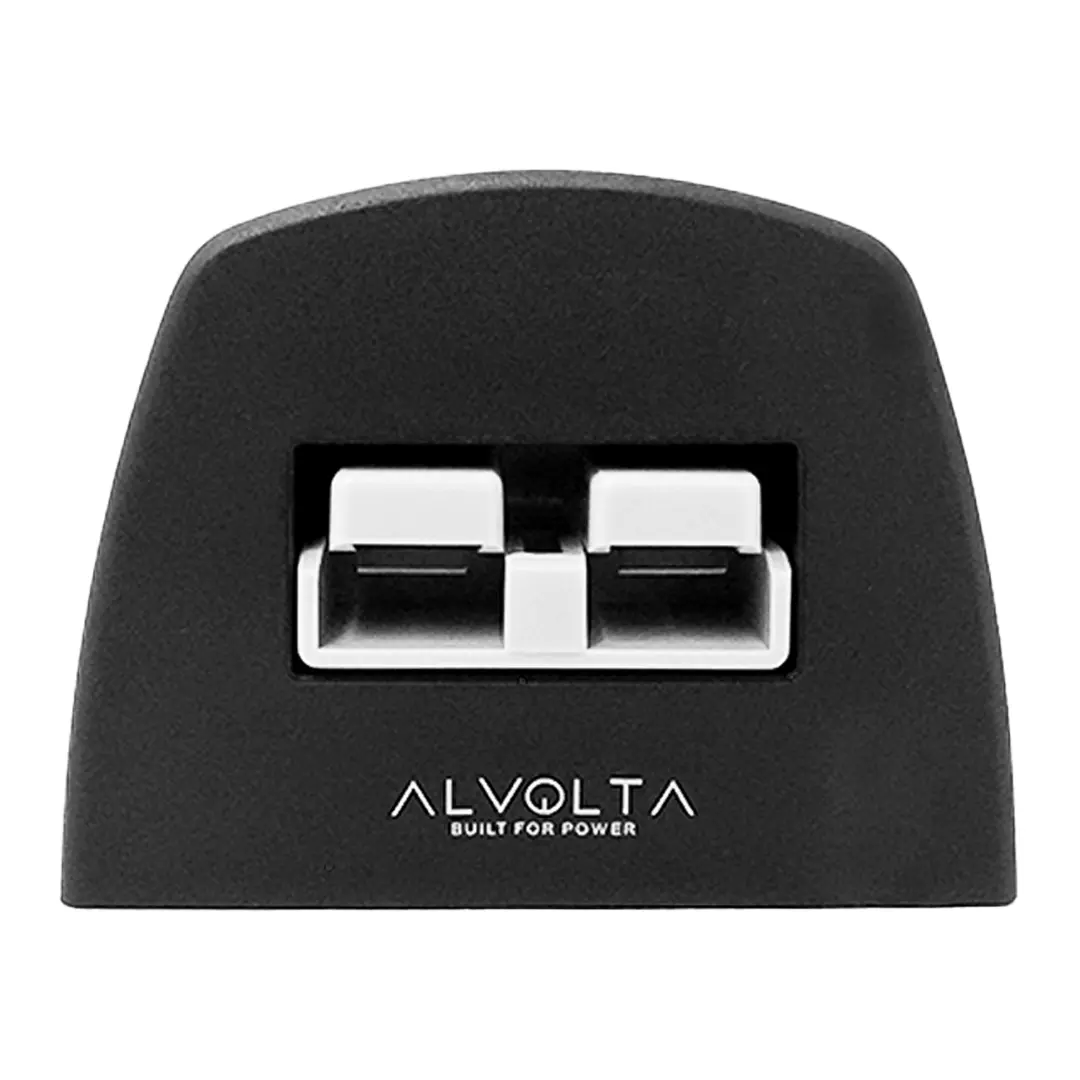

Alvolta 50A Anderson Surface Mount Socket
Alvolta 50A Anderson Surface Mount Socket
Features
- 50A Anderson socket
- Provides DC power
- Suitable for 12 / 24 V systems
- Surface mounted
- IP65 rated
- Durable nylon design
Inclusions
- Anderson plug socket pre-assembled in surface mounting panel
- 2x Anderson contacts
- 2x 4mm mounting screws
Where to use it
The Alvolta 50A Anderson Surface Mount Socket is built to give you a reliable high-current connection point, wherever the journey takes you. Rated to 50 A on a 12 / 24 V system, it's suited to connecting solarcases, DC-DC chargers, jump-start leads and other high-draw accessories with minimal voltage drop.
Its durable PA6 nylon housing and flame-retardant PVC Anderson plug are IP65 rated, so it holds up in caravans, camper trailers and 4WDs just as well as it does on a boat or marine console, and the surface-mount design makes for a simple install on dash tops, consoles or panels with no flush-cutting required. Rated to operate from -25°C to +85°C, it's built for Australian conditions, and it's backed by a 3-year warranty for genuine peace of mind.
Dimensions
Width | 62 mm |
Height | 34.4 mm |
Depth | 83.8 mm |
Warranty
- 3-year warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
