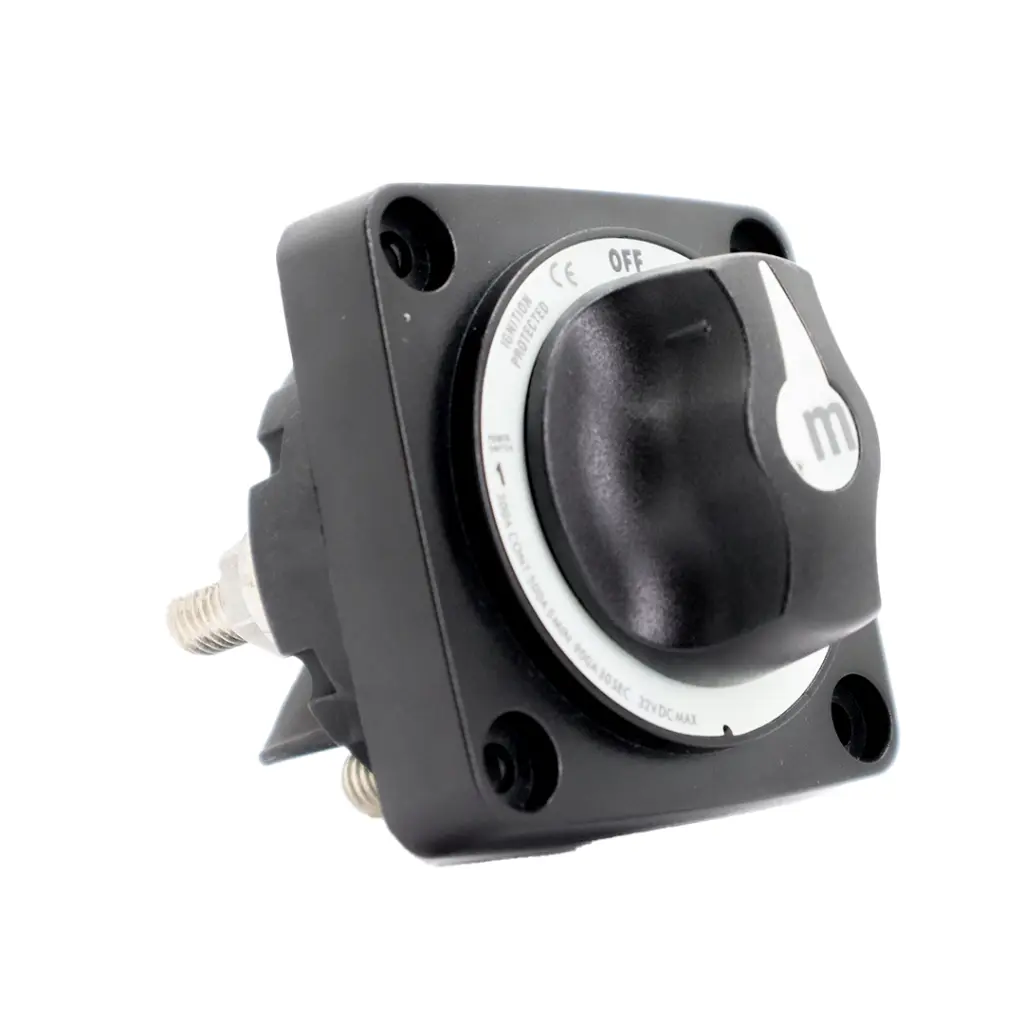

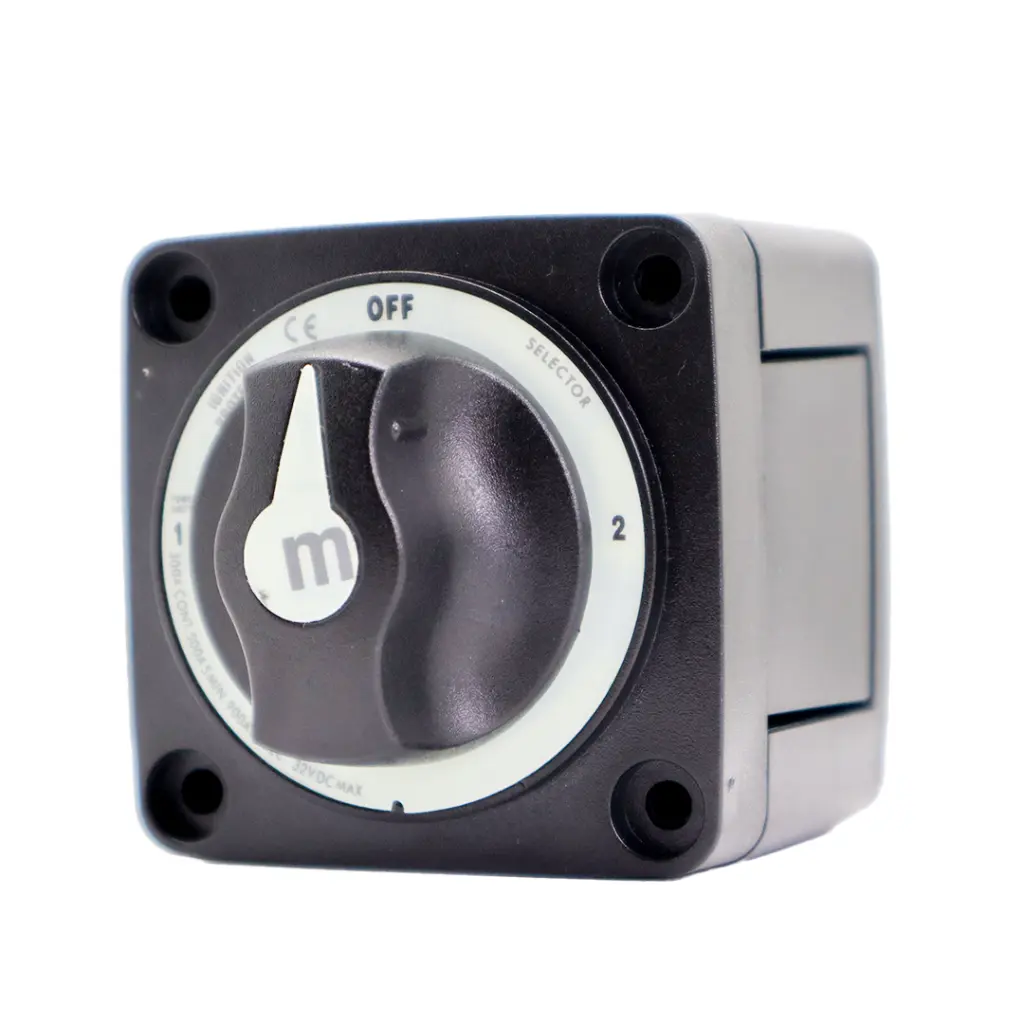

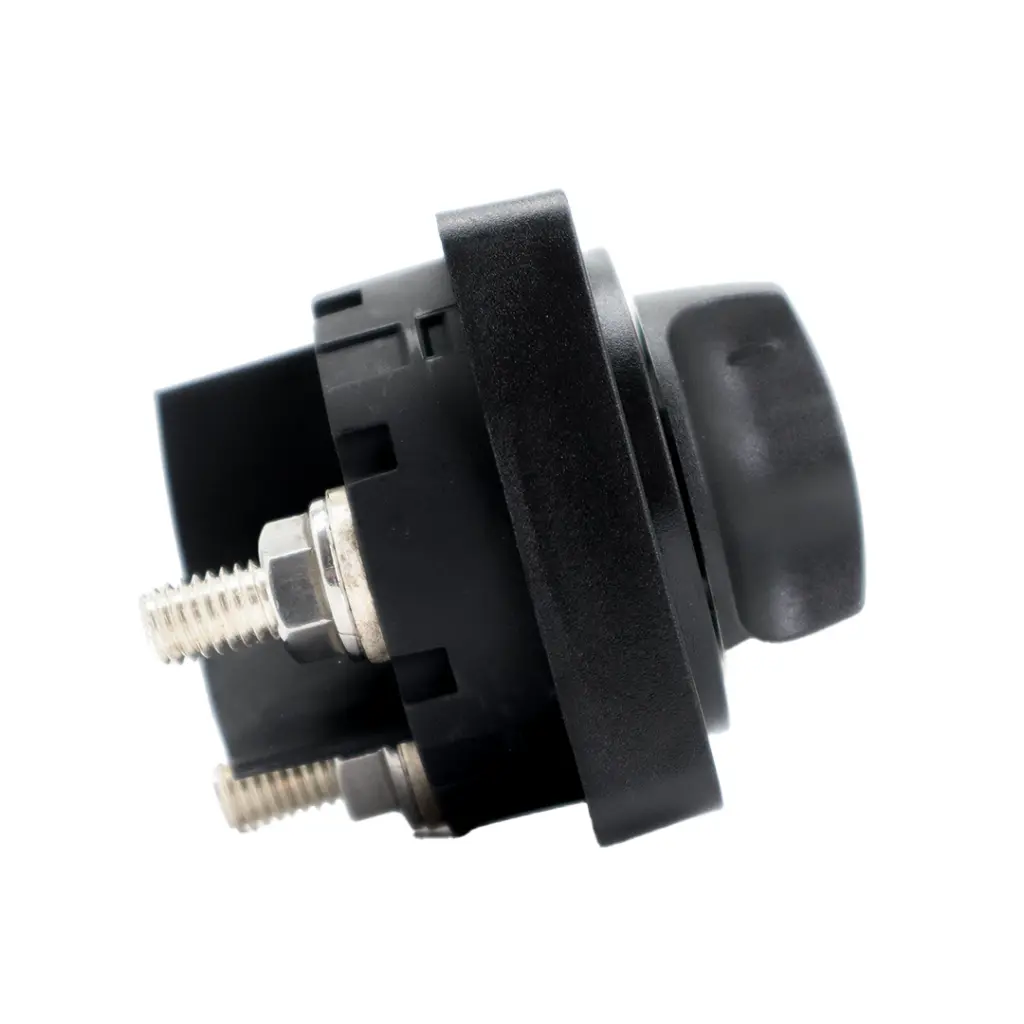

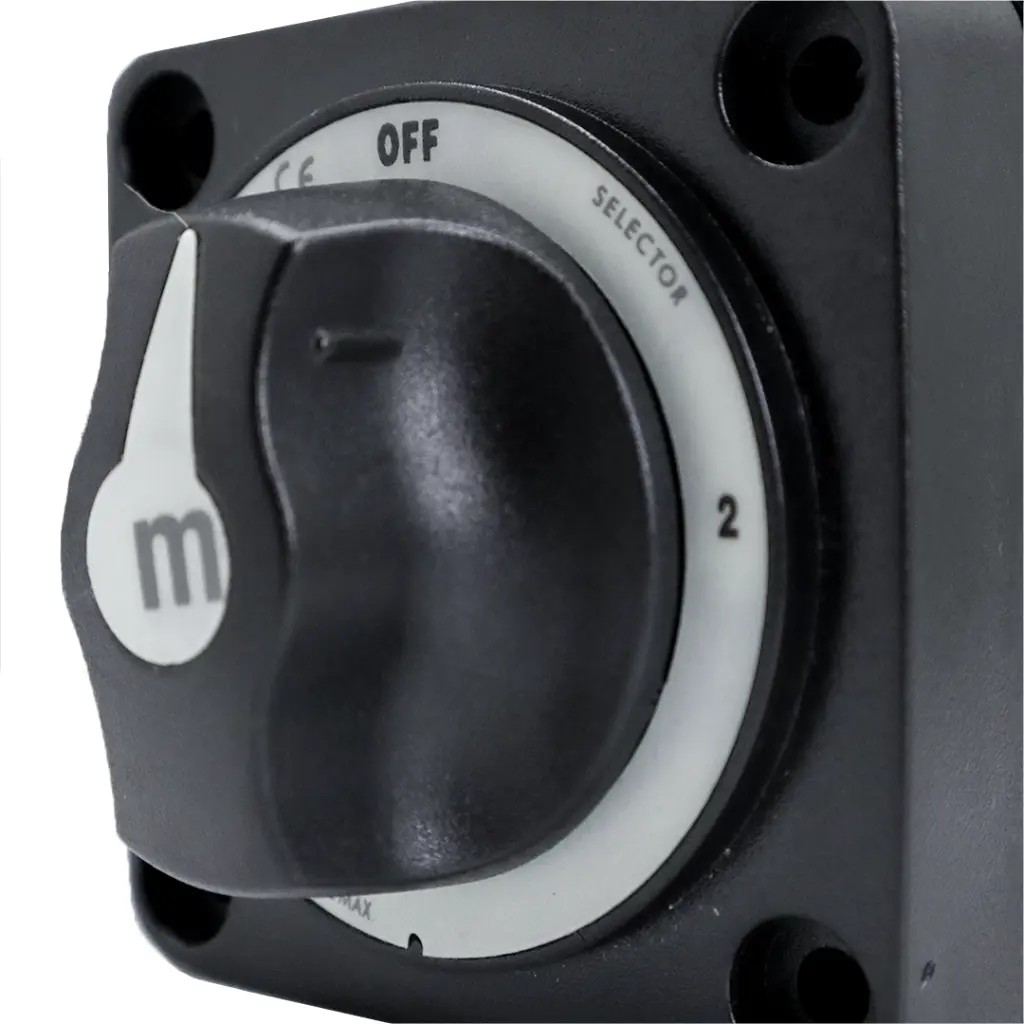

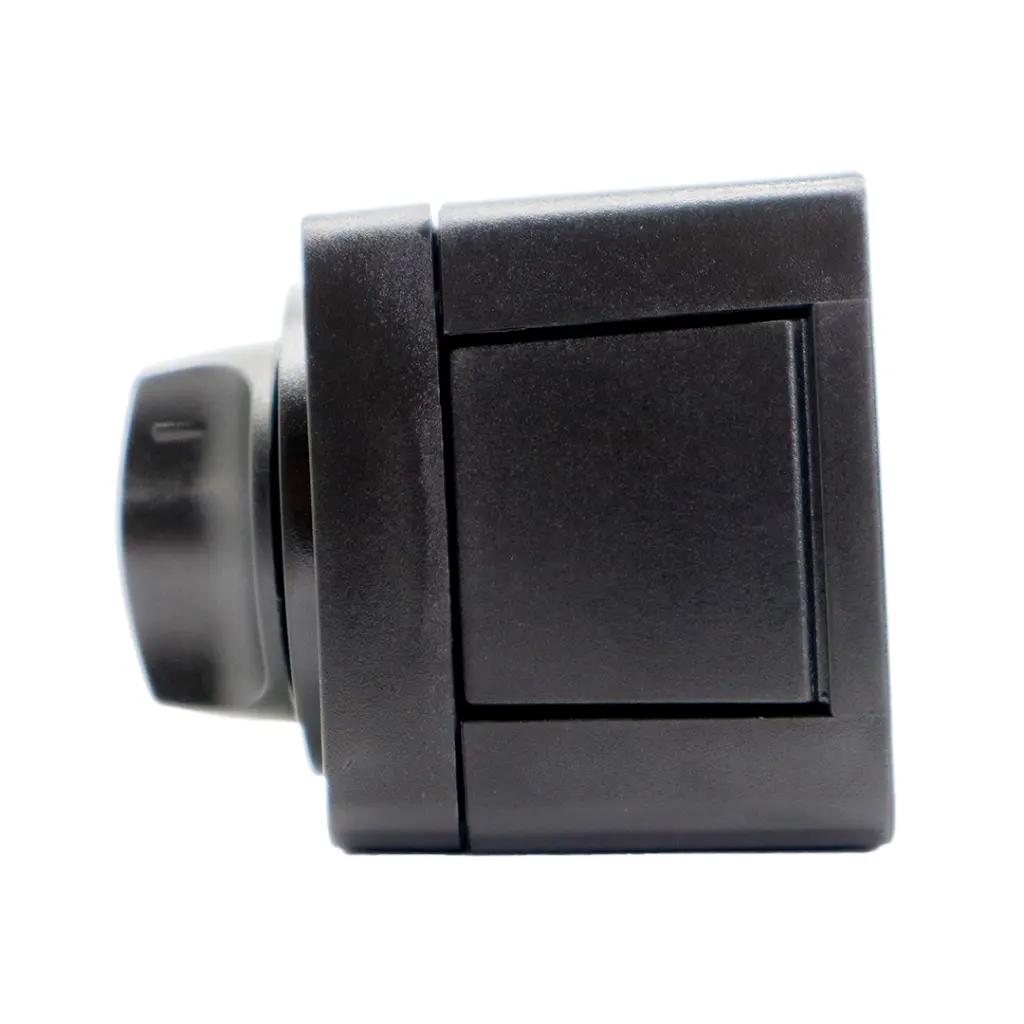

Alvolta 3 Position 300A Mini Battery Switch (Black)
Switch features
- 3-position selector (1, 2, off)
- 300A continuous
- 500A intermittent (5 minutes)
- 900A cranking (30 seconds)
- Maximum system voltage 32V DC
Build

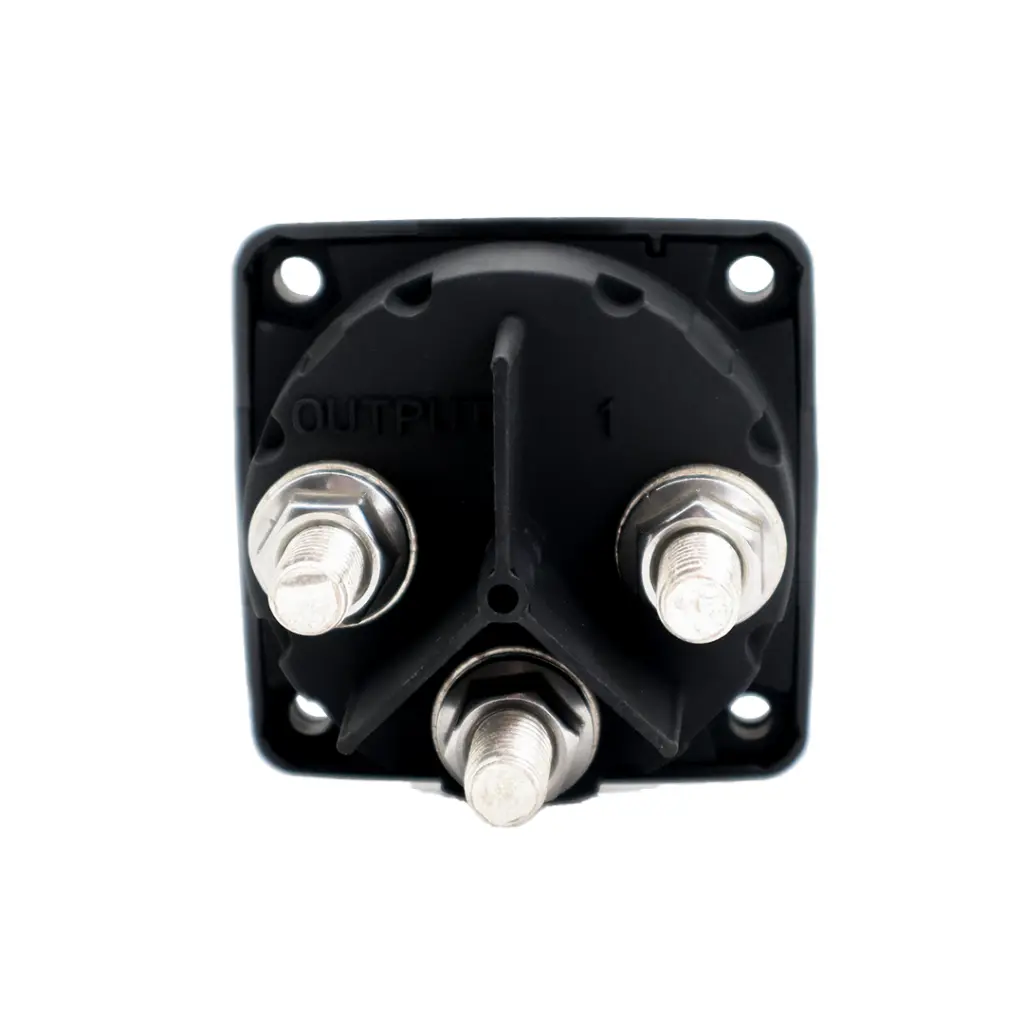

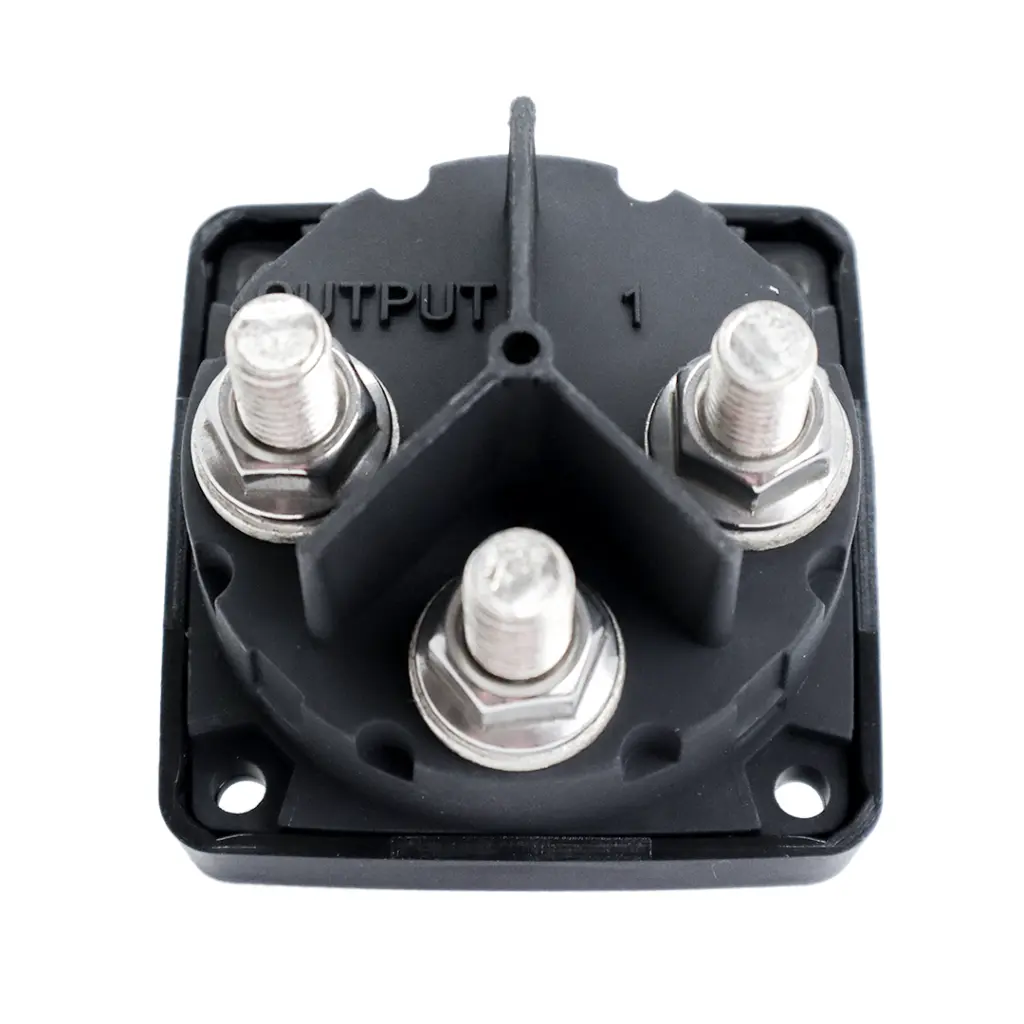

- M10 tinned copper terminal studs
- Takes cable up to 120mm² (4/0 AWG)
- M5 mounting holes
- PVC housing
- IP66 rated
- Black colour
Where to use it
The Alvolta 3 Position 300A Mini Battery Switch (Black) switches between two battery banks: battery 1, battery 2 or off (no combine position). Use it to protect a battery from flat-draining while a vehicle, caravan or boat is stored, or to manage a starter and auxiliary battery in 4WDs, caravans, motorhomes, boats and off-grid setups.

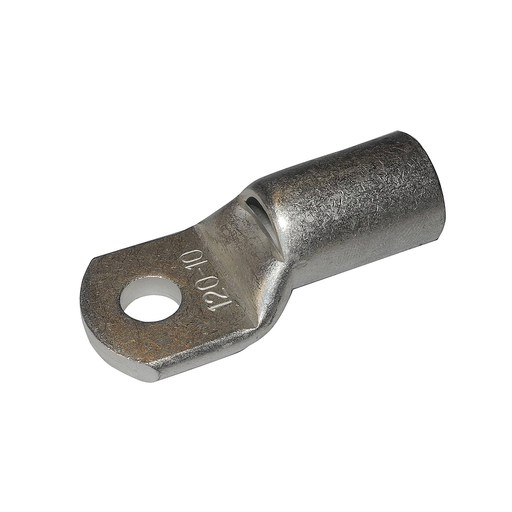

Mount it through M5 holes and connect cables with M10 ring terminals, tightened to 13.56Nm (120 in-lb). The PVC housing is IP66 rated, and the switch is backed by a 1-year warranty.
Dimensions
Width | 74.93 mm |
Height | 74.93 mm |
Depth | 84.53 mm |
Weight | 0.26 kg |
Safety features
Warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
Tiny Houses
