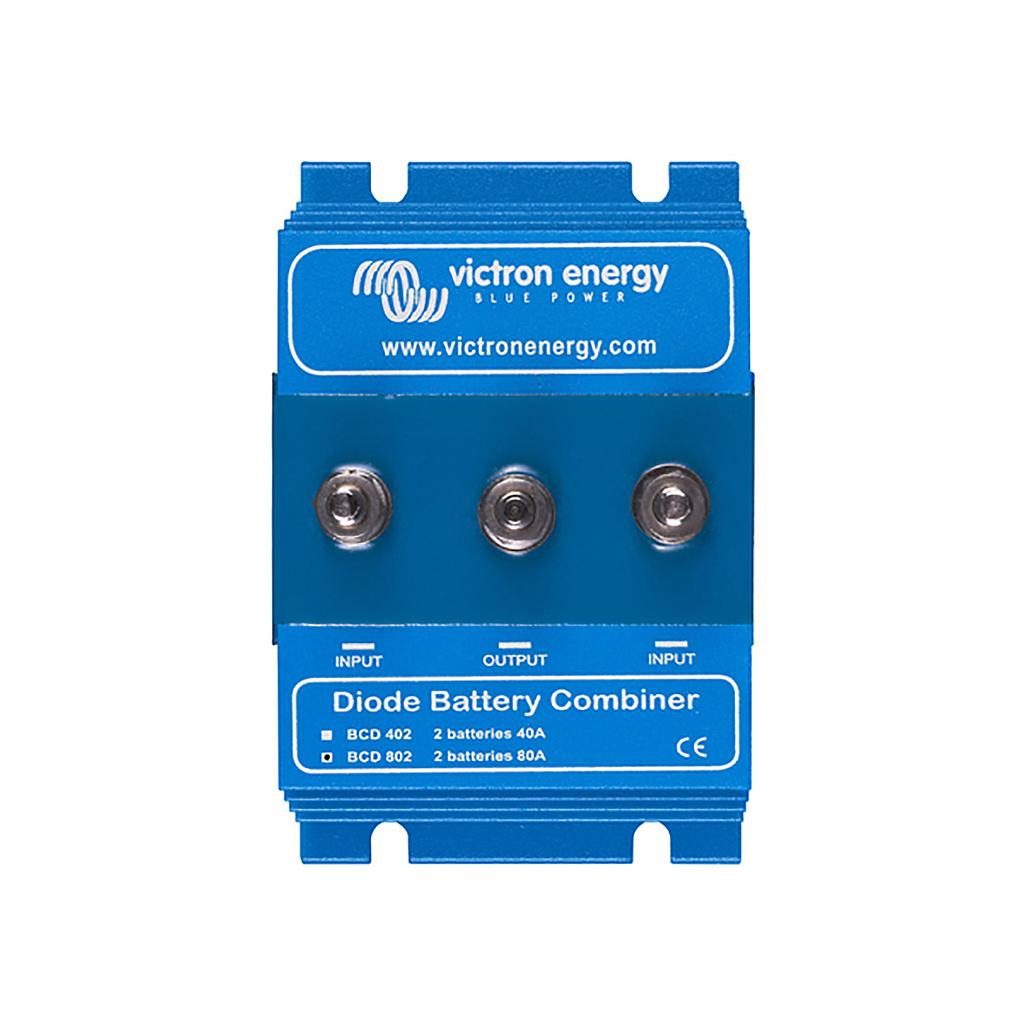

Victron BCD 402 Two Batteries 40A (Combiner Diode)
Features
Diode battery combiner for two batteries, 40A continuous
For 12V and 24V systems
Low voltage drop Schottky diodes: about 0.3V at low current, 0.45V at rated current
Keeps critical loads powered if one source fails
M6 bolt connections
Where to use it
Supplying mission-critical equipment, such as an electronic engine control system, from two batteries or DC sources in parallel. If one source fails, the load stays powered.
Mount on a non-flammable surface only: the combiner gets hot in use.
Dimensions
Dimensions (h x w x d)
60 x 120 x 75 mm
Weight
0.8 kg
Warranty
5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer
About Victron Energy
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, inverter/chargers, battery chargers, DC-DC converters, transfer switches, battery monitors and more.
