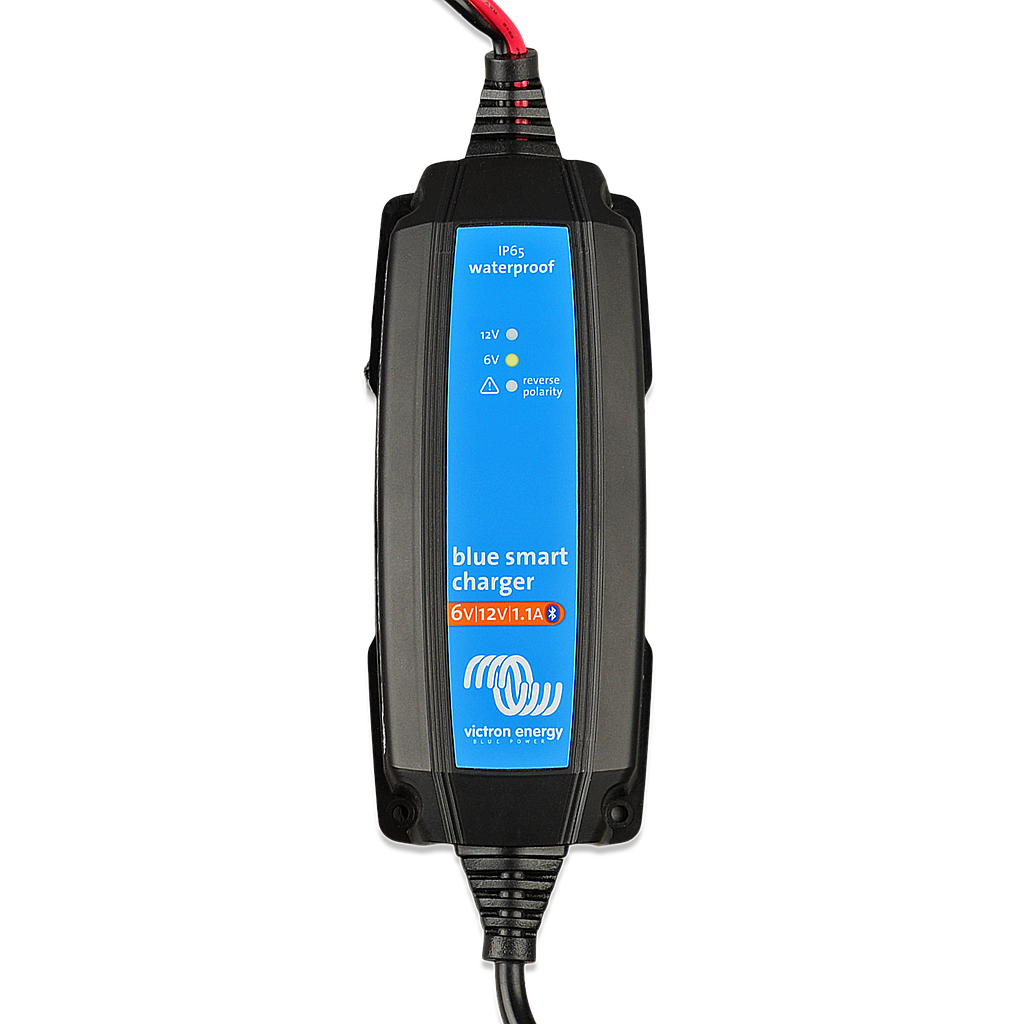

Victron Blue Smart Charger IP65 6V/12V-1.1A with DC Connector
Features:
6 V and 12 V, 1.1 A Bluetooth battery charger
IP65: splash and dust proof
Seven-step adaptive charge algorithm
Lead-acid and lithium (Li-ion) charge modes
Low current mode (0.5 A) for smaller batteries
Recovers fully discharged batteries, charging from 0 V
Operates from -30 to +50 °C
Can be used as a power supply

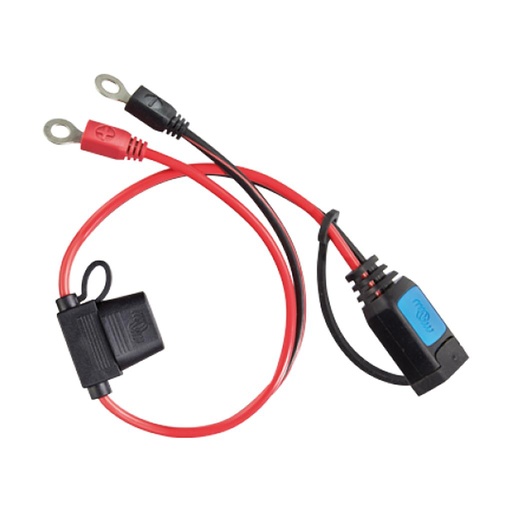

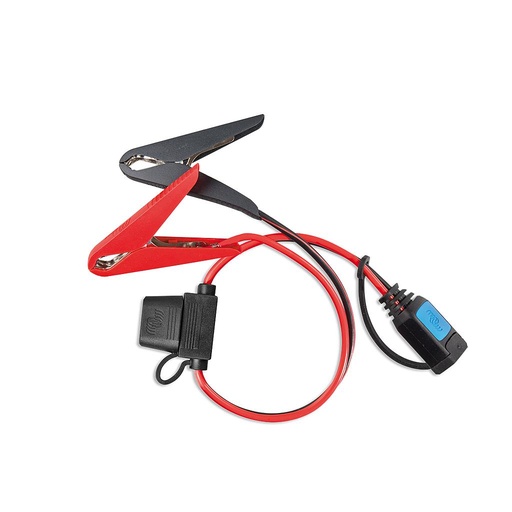

DC connector: swap between eyelets, clamps or a fused eyelet lead
Where to use it
The Blue Smart IP65 6/12/1.1 is a rugged charger for motorbikes, ride-on mowers, classic cars and small 6 V or 12 V batteries. Being IP65 rated, it handles splashes and dust.
Leave it connected to keep a stored battery topped up, and check charging from your phone with the VictronConnect app.
Dimensions
Height
38 mm
Width
64 mm
Depth
153 mm
Weight
0.4 kg
Warranty
5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
You’ll need a lithium-compatible charger or solar controller with a LiFePO₄ charge profile. These chargers use the correct voltage settings (typically around 14.2–14.6V per 12V module) and ensure safe, efficient charging. Using the wrong charger can reduce performance or damage the cells.
Product Specifications
Input voltage and frequency range
100 - 250VAC | 45 - 65Hz
Efficiency
82%
Standby power consumption
<0.5 W
Minimum battery voltage
Starts charging from down to 0 V
Charge voltage 'absorption'
Normal: 7.2 V | 14.4 V High: 7.35 V | 14.7 V Li-ion: 7.1 V | 14.2 V
Charge voltage 'float'
Normal: 6.9 V | 13.8 V High: 6.9 V | 13.8 V Li-ion: Disabled
Charge voltage 'storage'
Normal: 6.6 V | 13.2 V High: 6.6 V | 13.2 V Li-ion: 6.75 V | 13.5 V
Charge current
1.1 A
Low current mode
0.5A
Temperature compensation (lead-acid batteries only)
8 mV/°C | 16 mV/°C
Power supply mode
Yes
Back current drain
0.1 Ah/month (140uA)
Protection
Reverse polarity, Output short circuit, Over temperature
Operating temp. range
-30 to +50°C (full rated output up to 30°C)
Humidity (non-condensing)
Max 95%
Charge algorithm
7-stage adaptive
Bluetooth
-4dBm, 2402 – 2480 MHz
Battery-connection
Black and red cable of 1.5 meter
230V AC-connection
1.5m cable with CEE 7/16 or AS/NZS 3112 plug
Protection category
IP65 (splash and dust proof)
Weight
0.4 kg
Dimensions
38 x 64 x 153 mm
Safety
EN 60335-1, EN 60335-2-29
Emission
EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity
EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
