Built-in Bluetooth: set up and monitor with VictronConnect
6-stage adaptive charging for AGM, gel, flooded and lithium (LiFePO4) batteries
NIGHT/LOW mode: 7.5A for quieter, slower charging
Recovers fully discharged batteries; can be used as a power supply
Voltage and temperature compensated charging with a SmartShunt or BMV-712 over VE.Smart networking
Where to use it
Permanently mounted charging of 12V battery banks in caravans, campers, boats and workshops from mains power. The 3 outputs charge separate battery banks at once.
What's in the box

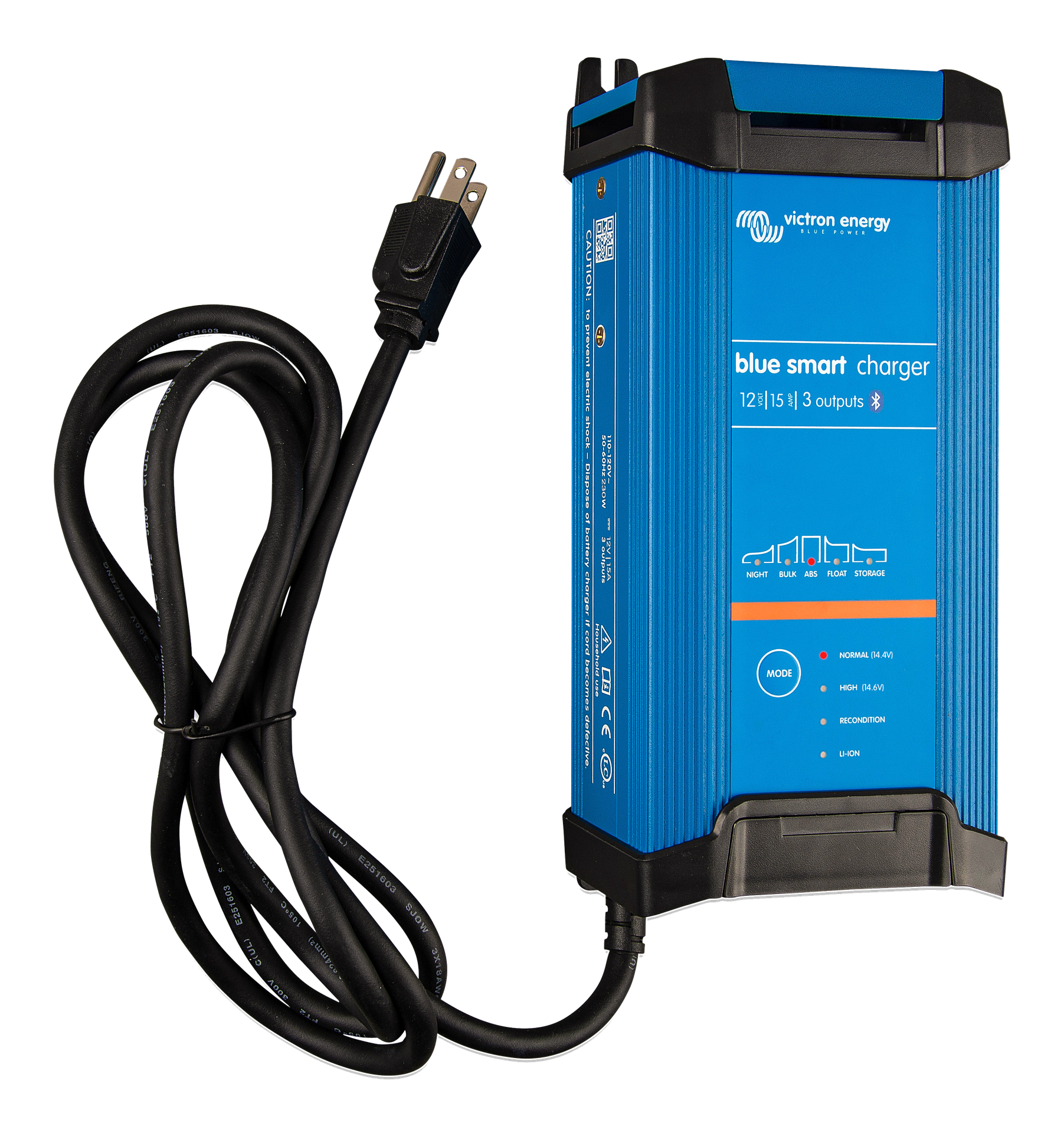

Blue Smart IP22 Charger 12/15 (3)
1.5m AC cable with AU/NZ plug
Dimensions
Dimensions (h x w x d)
235 x 108 x 65 mm
Weight
1.3 kg
Warranty
5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Yes. Once the battery is full the charger moves to storage mode, which lowers the voltage to 13.2 V (12 V models) to reduce gassing and corrosion, then runs a short refresh charge once a week. It uses about 0.5 W when idle.
Both modes cut the output current to half of the rated current and make the charger completely silent. NIGHT mode switches off by itself after 8 hours; LOW mode stays on until you change it.
No. It comes with a 1.5 m 240 V lead with an Australian plug, but the DC battery cable is not included. The battery terminals take cable up to 13 mm² (AWG6); choose the cable size to suit the charge current and cable length.
Product Specifications
Input voltage range
180-265V AC, 45-65 Hz
Charge current, normal mode
15A
Charge current, NIGHT or LOW
7.5A
Number of outputs
3
Efficiency
93%
No load power consumption
0.5 W
Charge voltage 'absorption'
Normal 14.4V, High 14.7V, Li-ion 14.2V
Charge voltage 'float'
Normal 13.8V, High 13.8V, Li-ion 13.5V
Charge voltage 'storage'
Normal 13.2V, High 13.2V, Li-ion 13.5V
Charge algorithm
6-stage adaptive
Can be used as power supply
Yes
Protection
Battery reverse polarity (fuse), output short circuit, over temperature
