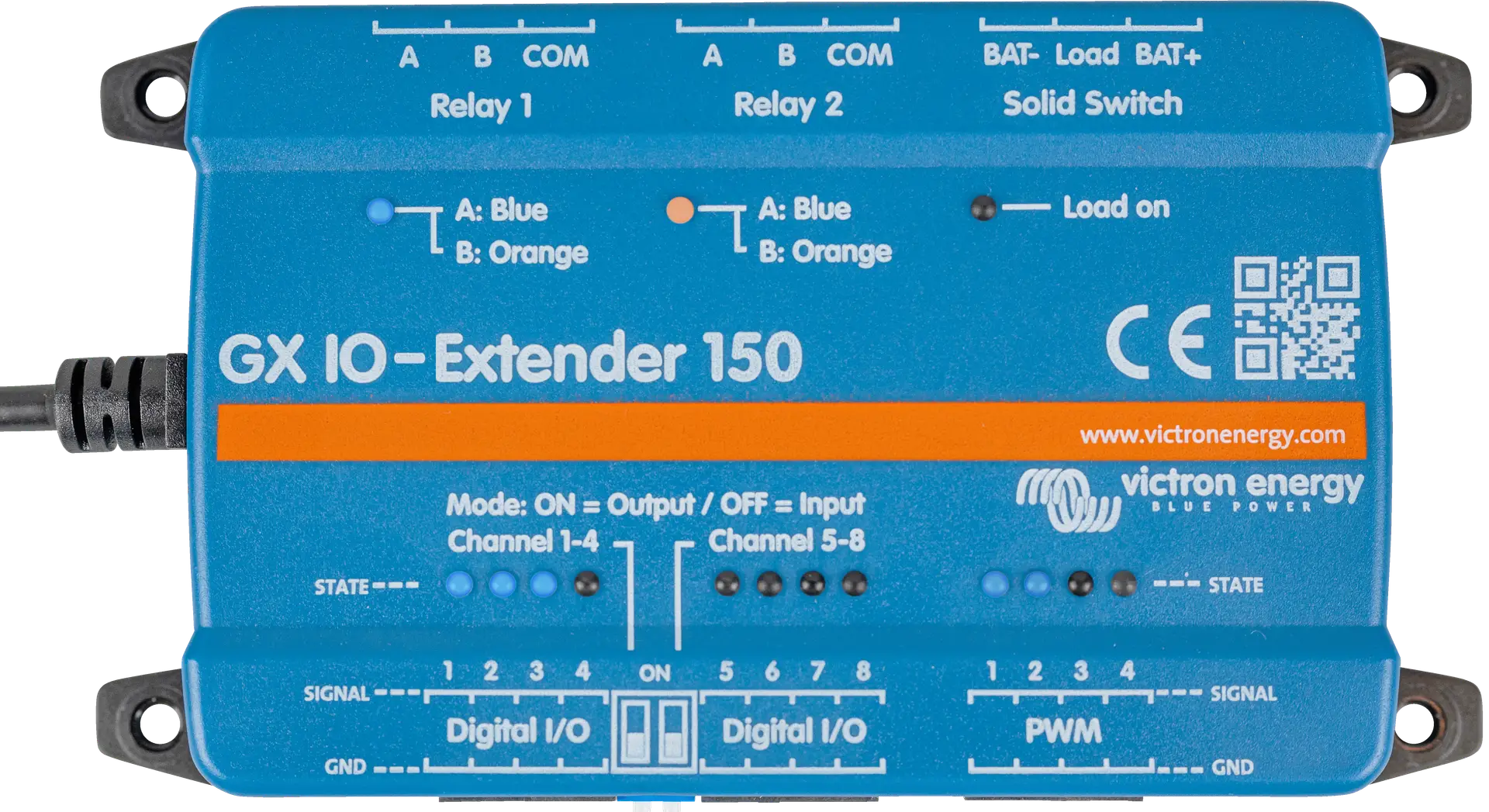

Victron GX IO-Extender 150
Features
- Connects directly to any GX device via a standard USB cable which eliminates the need for an external power supply
- Features eight isolated channels that can be customized as inputs or outputs to suit specific monitoring needs
- Equipped with two latching bi-stable relays and four PWM output channels for advanced automation and switching
- Includes an isolated solid-state switch capable of handling loads up to 4A and battery voltages up to 70VDC
- Built-in LEDs for every channel provide instant visual confirmation of the operational state for easier troubleshooting
- Compact design supports either wall mounting or DIN-rail installation for professional and flexible system integration
Where to use it
The Victron GX IO-Extender 150 is the ultimate expansion tool for advanced energy systems, allowing you to significantly increase the monitoring and control capacity of your Cerbo GX or other GX devices. By connecting via a simple USB cable, this extender adds eight configurable digital inputs/outputs, two latching relays, and four PWM outputs, making it ideal for complex marine, off-grid, and RV setups that require additional tank level sensors, temperature probes, or automated fan and light control. Its compact, DIN-rail mountable design and isolated circuitry ensure a professional and safe installation, providing the extra flexibility needed to manage custom automation and detailed system data through the Victron Remote Management (VRM) portal.
Dimensions
| Width (Diameter) | 123 mm |
| Height | 67 mm |
| Depth (Base) | 23 mm |
| Weight | 0.17 kg |
Safety features
- Galvanic isolation for surge protection
- Potential-free dry contact relays
- Integrated overvoltage protection
- Low-heat latching relay logic
- Visual LED status indicators
- Wide operating temperature range
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron Dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
