The BYD Battery Box Premium LV FlexEnergy Storage solution is the perfect system for Commercial, Industrial and Residential applications.
Modular & Expandable
Up to 64 modules may be connected in parallel, supporting battery systems from 5kW up to 320kWh capacity
Flexible Assembly

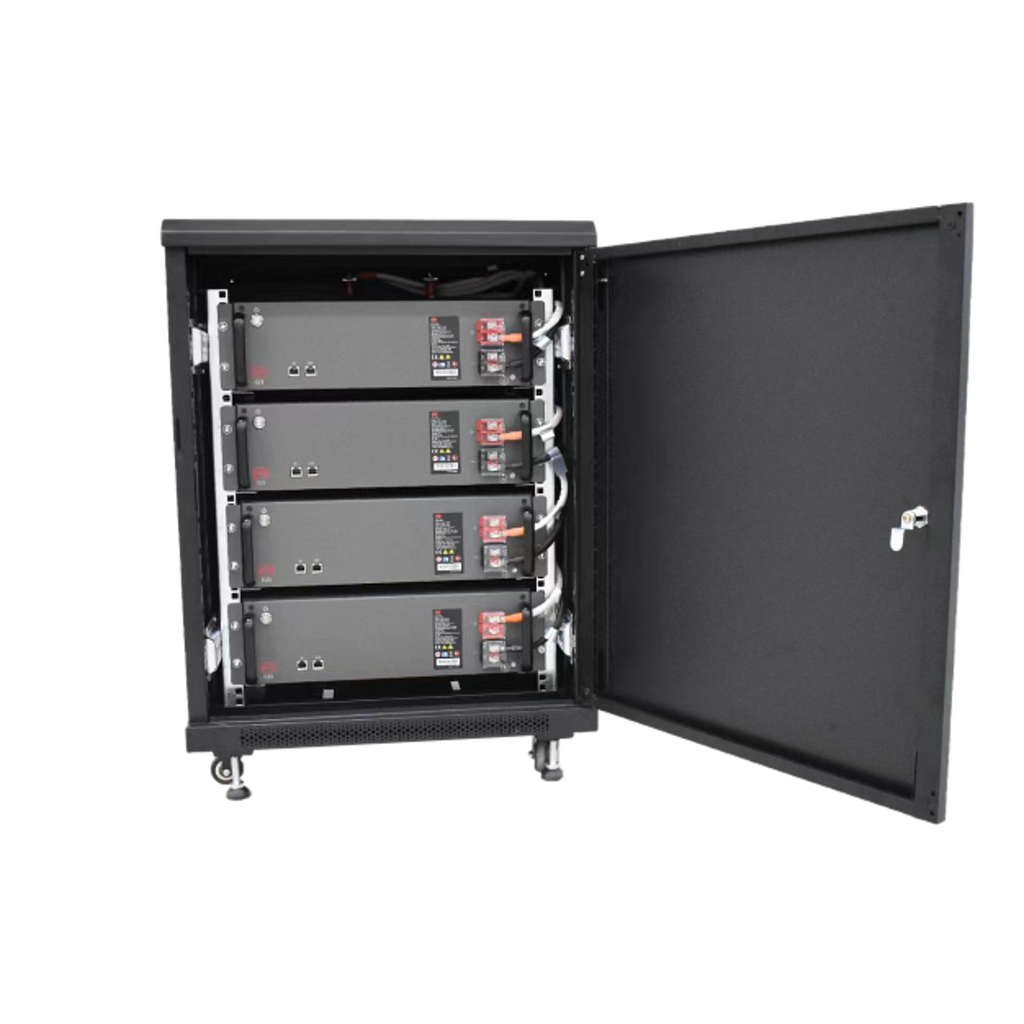

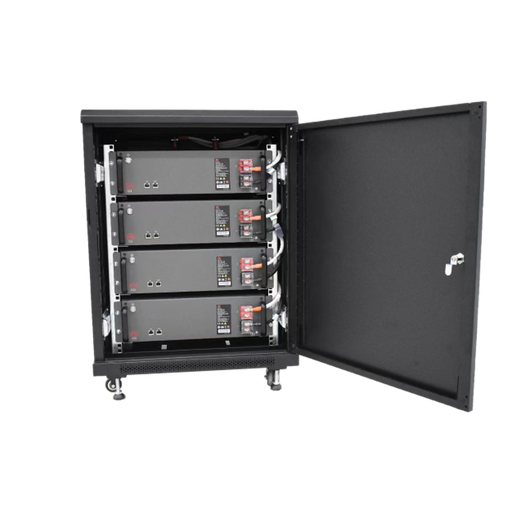

LV Flex battery modules offer a supremely flexible range of installation methods, including floor-mounting in 20kWh stacks, rack-mounting in conventional 19" cabinets or vertical-mounting in bespoke enclosures
Versatile Inverter Integration
These battery modules are compatible with a wide range of inverter systems, supporting use in 1ph or 3ph sites in industrial, residential or commercial applications for on-grid and off-grid environments
Safe Battery Construction
Built with the same Cobolt-free Lithium Iron Phosphate battery modules as BYD's Electric Vehicles, these 'stationary' battery systems inherit the safety, longevity, performance and durability of devices designed for motive and high vibration applications
High Power Output
BYD's High Peak Output Current rating makes these batteries ideal for emergency back-up and full off-grid applications where surging loads are used
Easy Installation
Modular battery units with multiple lifting handles and multiple integration options allows these batteries to be easily fitted into a wide variety of applications
Applications
More about BYD:
BYD has gained global recognition as a leading manufacturer of electric vehicles (EVs) and clean energy solutions. Founded in 1995, BYD has rapidly expanded its presence and diversified its product offerings over the years. Leveraging its energy storage expertise, BYD provides solar battery solutions for residential, commercial, and industrial applications. Their energy storage systems help optimise energy consumption, store excess renewable energy, and enhance grid stability. Its creation of a Zero Emissions Energy Ecosystem – comprising affordable solar power generation, reliable energy storage and cutting-edge electrified transportation – has made it an industry leader in the energy and transportation sectors.
Weight [kg] | 47 |
Depth [mm] | 525 |
Height [mm] | 132 |
Quantity Per Pallet | 12 |
Brand | BYD |
IP Rating | IP20 |
Operating Temperature Range [°C] | -10°C to +50°C |
Short Circuit Current (Isc) [A] | 2500 |
Width [mm] | 482 |
Case | IP20 |
Family | Battery-Box Premium LV |
Chemistry | Lithium |
Battery Voltage | 51.2 |
Capacity (Ah) | 97 |
Capacity (kWh) | 5 |
