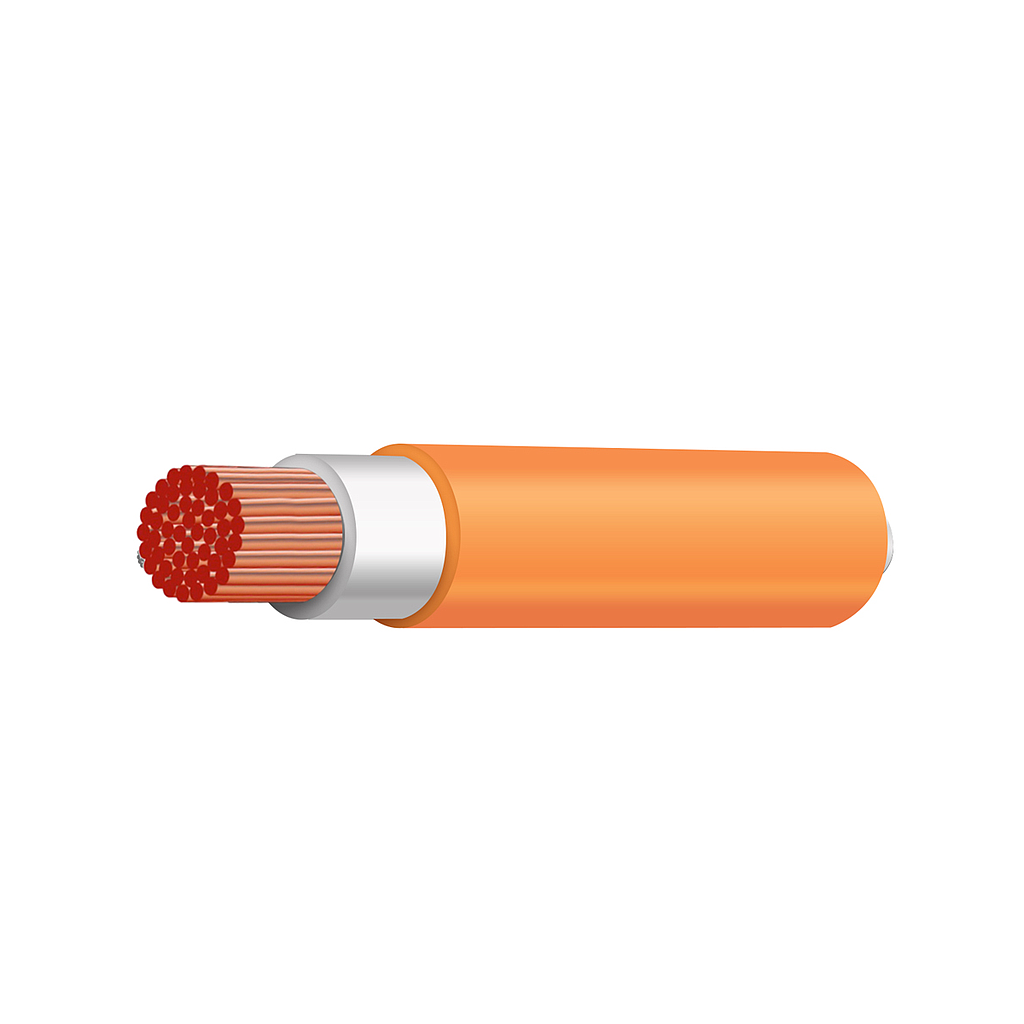

Tycab 120mm² Orange 0000B&S Cable
120 mm² (0000 B&S) orange double insulated flexible copper cable, sold per metre
Tycab 120mm² Orange 0000B&S Cable
Features:
- 120 mm² (0000 B&S / 4/0 AWG) single core double insulated cable
- Orange outer sheath over white insulation for extra protection
- 3800 strands of 0.2 mm oxygen-free copper: very flexible (Class 6)
- Nitrile-modified V90HT PVC insulation and sheath to AS/NZS 3808
- 0.6/1 kV voltage rating to AS/NZS 5000.1
- 341 A current rating (unenclosed, spaced, 40 °C in air, AS/NZS 3008)
- Australian made by Tycab
- Sold per metre
Where to use it
Tycab 120 mm² double insulated cable suits high-current battery and inverter connections in off-grid homes, sheds, boats and large caravan or truck systems, such as the main runs between a 48 V battery bank, fuse or breaker and an inverter.
The double insulation gives extra protection where cable runs through walls, cabinets or areas exposed to rubbing. Choose cable size by current and run length to keep voltage drop down; ask our team if you're unsure.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about TYCAB:
Tycab Australia is the leading specialised manufacturer of the highest quality Oxygen Free, Plain and Tinned Copper electrical cable products. Tycab is proudly Australian-owned and operated with over 30 years experience in the industry, and part of the Tyree Group of Companies. Tycab manufactures products that are used across a broad range of industries, from Automotive, Irrigation, Building, Data & Instrumentation to Security, Marine, Welding, Speaker & Audio, Solar and Switchboards. Such is the size of its product range; Tycab now produces more than 2000 different cable variations to the market.
