39A continuous charge/discharge (0.5C); 63A max via built-in circuit breaker
2,700 cycles at 100% DoD, 5,000 at 75%, 10,000 at 50% (to 80% capacity)
Infinitely stackable in parallel (not for series connection)
Build
Built-in 2-pole 63A 360V DC circuit breaker (K curve)
Amphenol Surlok 100A terminals
41kg, 19-inch rack mount, IP40
Where to use it

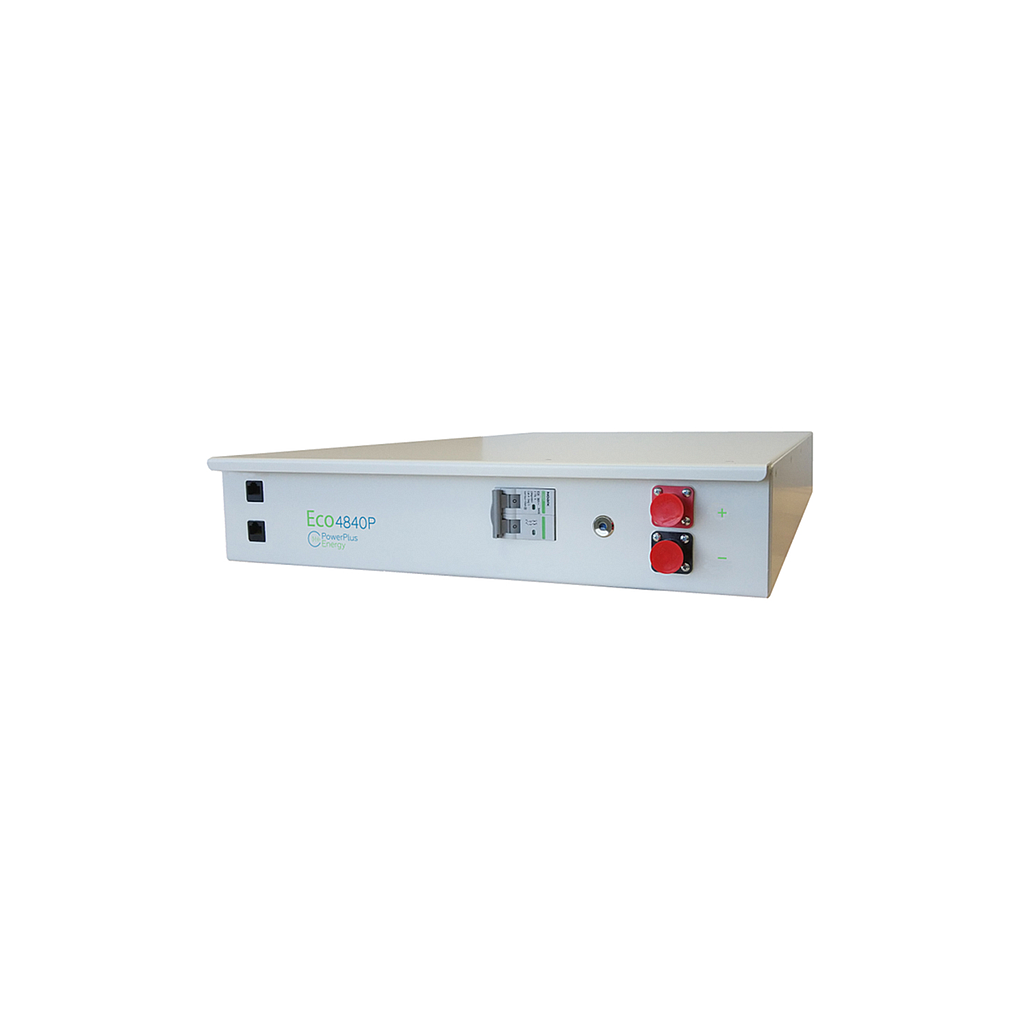

The PowerPlus ECO 48V 4kWh Lithium Battery is a 19-inch rack-mount lithium battery for off-grid and grid-connected solar, battery backup, UPS and telecommunications systems.
Add more batteries in parallel as your storage needs grow, and install them in a PowerPlus wall or floor cabinet. Program the inverter or charger to the PowerPlus voltage settings in the spec table.
Dimensions
Depth
635 mm
Width
434 mm
Height
88 mm
Warranty
10-year warranty (conditions apply)
Applications
Off-Grid Systems
Tiny Houses
Cabins
Off-Grid Sheds
Remote Homes
Businesses
About PowerPlus Energy
PowerPlus Energy designs and manufactures LFP (lithium ferro phosphate) battery storage in Bayswater, Victoria. Its self-managed, rack-mount LiFe and Eco batteries are built for harsh Australian conditions and scale from small off-grid systems to large commercial installations.
Yes. PowerPlus LiFe and ECO modules are self-managed and can be added in parallel as your storage needs grow. Ask us to check your setup before adding modules.
PowerPlus batteries are ordered in for each order, with a lead time of about 2 to 3 weeks. Contact us for a current ETA.
Product Specifications
Model
ECO4840P
Nominal Voltage
51.2V DC
Nominal Capacity
4.0kWh / 78Ah
Continuous Charge / Discharge Current
39A / 39A (0.5C)
Maximum Current
63A (limited by circuit breaker)
Battery Fault Current
250A
Cycle Life (to 80% capacity)
2,700 at 100% DoD / 5,000 at 75% / 10,000 at 50%
Chemistry
Lithium ferro phosphate (LiFePO4 / LFP)
Battery Dimensions
635 D x 434 W x 88 H mm
Mounting
Standard 19" rack, horizontal or vertical
Cooling
Natural convection
IP Rating
IP40
Round Trip Efficiency
>96%
Expected Life at 25°C
More than 10 years when used as per warranty terms
