Enerdrive DC2DC40+ & Victron BMV-712 (Black)
DC2DC+ 40A charger with MPPT bundled with a Victron BMV-712 Smart monitor
Enerdrive DC2DC40+ & Victron BMV-712 (Black)

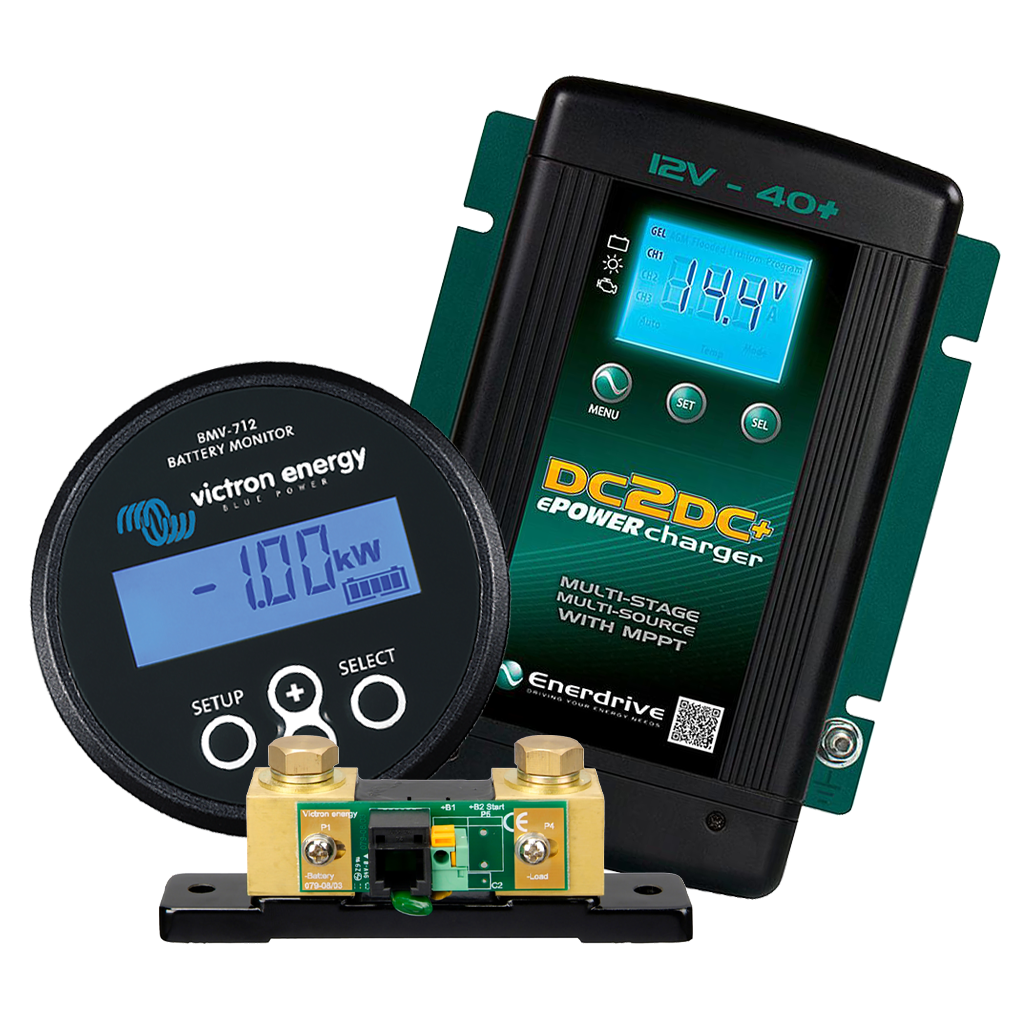

Bundle includes

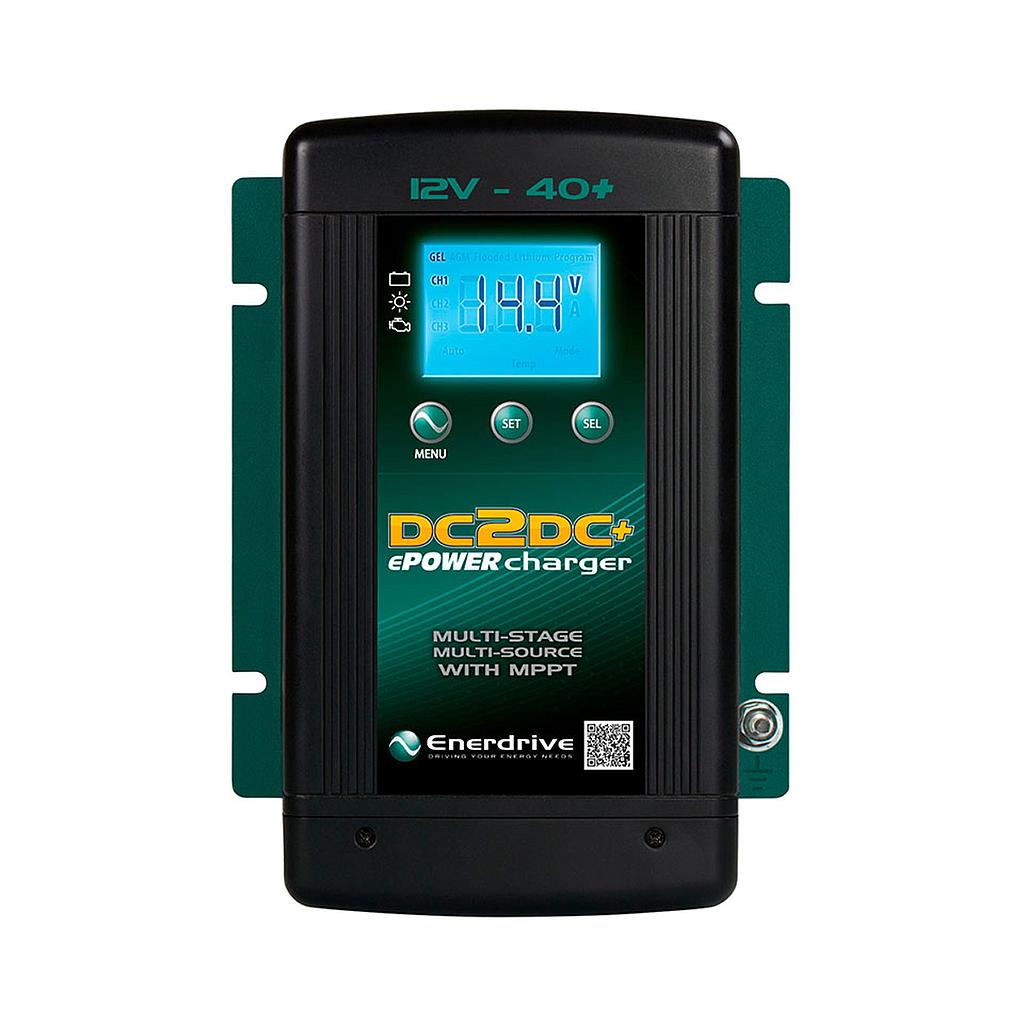

- Enerdrive ePOWER DC2DC+ 40A DC-DC charger with MPPT (EN3DC40+)

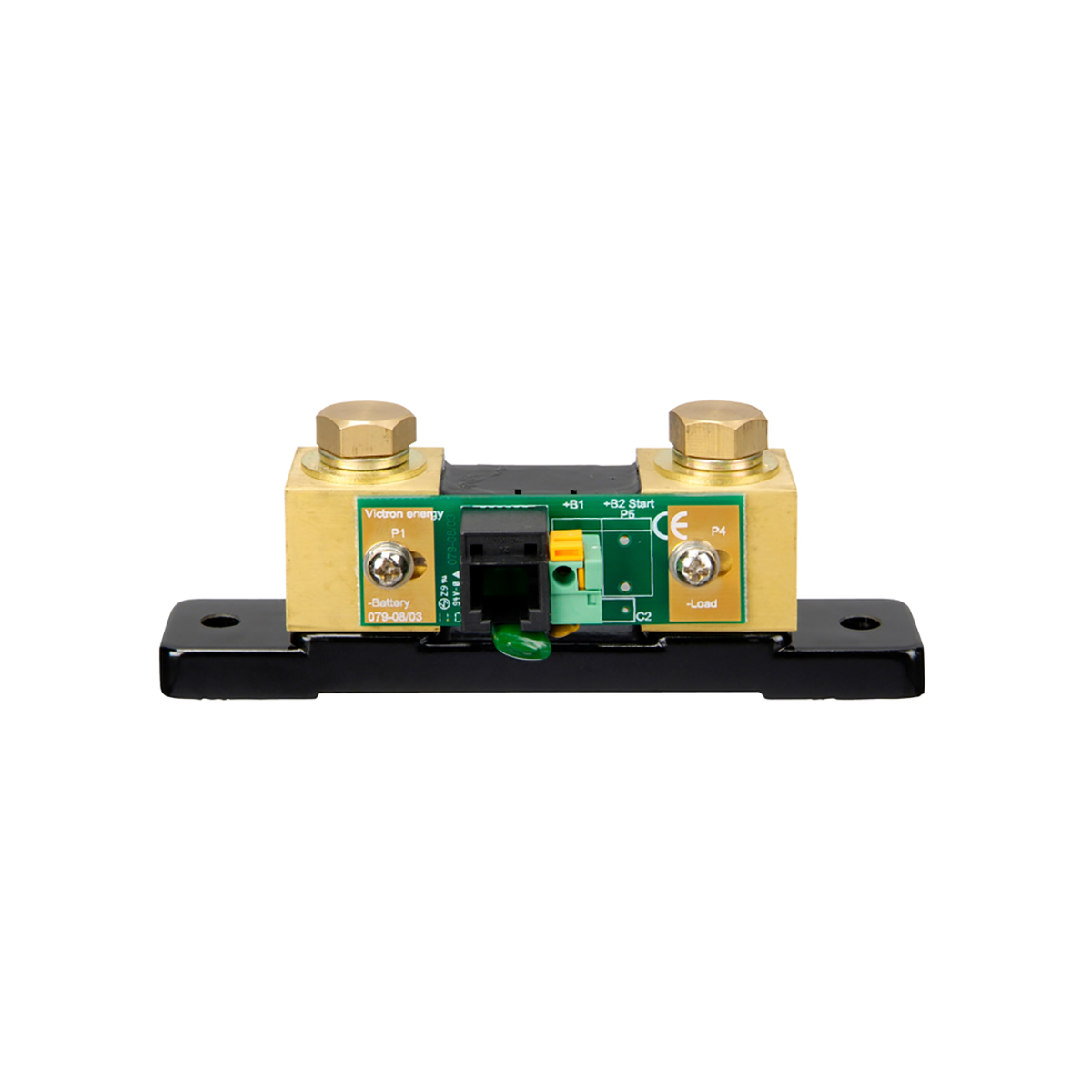

- Victron BMV-712 Smart battery monitor, black (with 500A shunt)
Charger features
- 12V 40A DC-DC charger with built-in MPPT solar controller (adjustable 5-50A)
- Charges from the alternator while driving and from solar when parked: switches automatically
- Works from a 12V or 24V vehicle (10.5-16V / 21-32V input) and with smart alternators via the ignition/VSO input
- Solar input up to 45V open circuit and 500-800W
- Gel, AGM, Flooded, Lithium and fully custom charge profiles
Unit features
- Load-sensing smart charging: doesn't mistake running loads for a flat battery
- LCD display shows which source is charging, plus status, voltage and current
- Battery temperature sensor included
- Full 40A output up to 40°C with temperature-controlled fan
- M6 screw terminals for large cables; 95% efficient

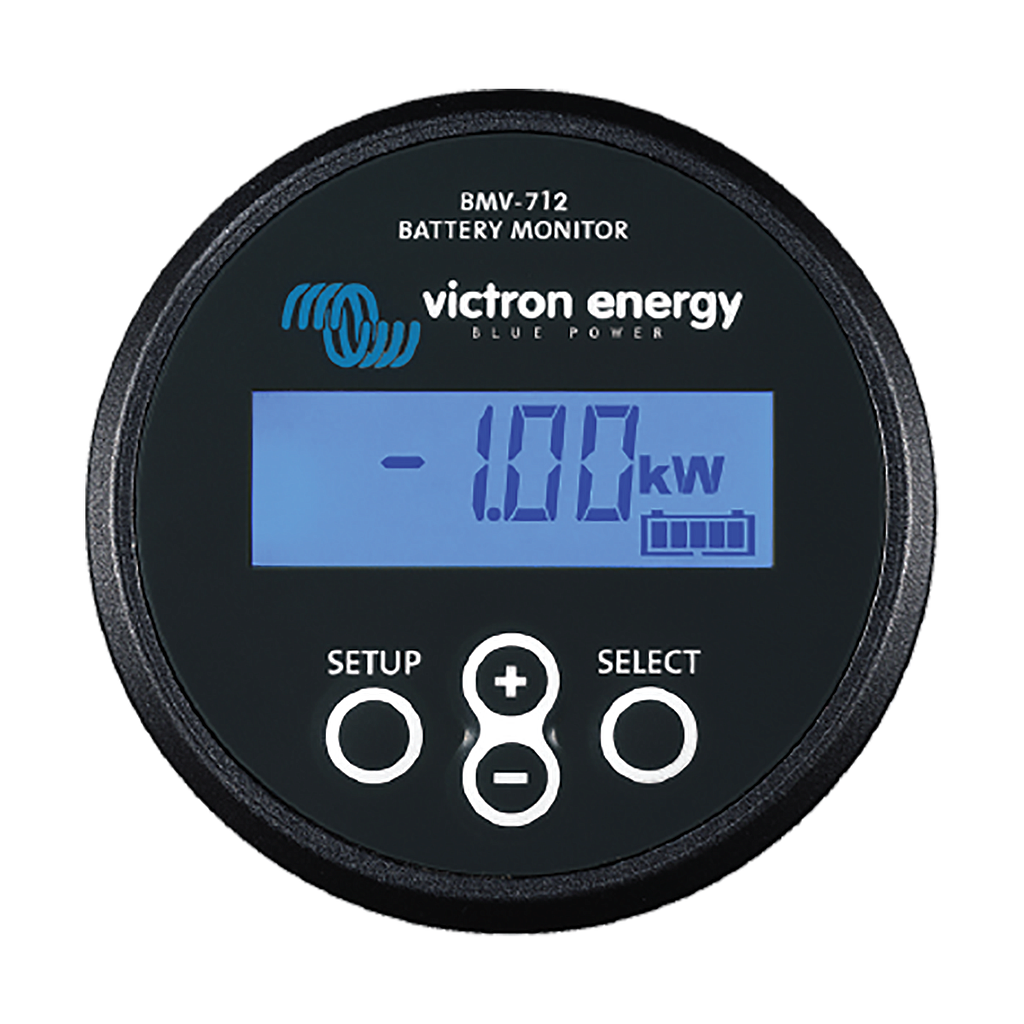

BMV-712 Smart features
- Shows state of charge, voltage, current and time remaining

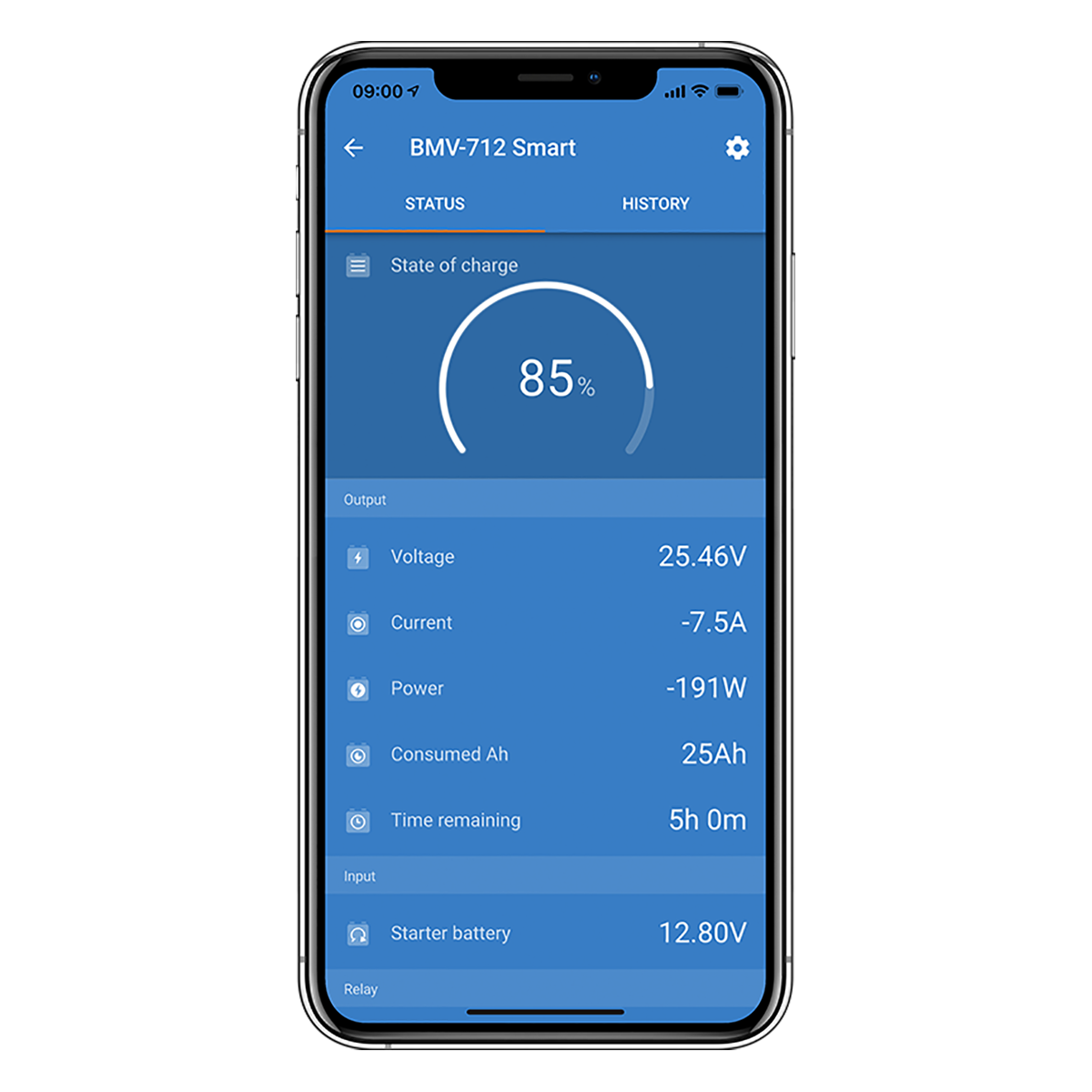

- Bluetooth built in: monitor and set up with the VictronConnect app
- Second input for a starter battery, midpoint or temperature
- Very low self-consumption (about 1 mA at 12V)
- Supplied with 10 m RJ12 cable, fused battery cable and round/square bezels
Where to use it
The DC2DC+ is the all-in-one charger for a caravan, camper trailer, 4WD, motorhome or boat with a lithium or deep cycle house battery. While you drive it charges the house battery from the alternator at up to 40A, at the right voltage for the battery type; when you stop, its built-in MPPT controller takes over from your solar panels, with no relays or extra controllers needed.
The BMV-712 Smart completes the system: its shunt measures every amp in and out of the house battery, so you can see the real state of charge and how long the battery will last on the monitor or on your phone. Fit the shunt on the battery negative and the DC2DC+ close to the battery, and fuse both the vehicle input and the battery output.
Dimensions
| Height | 242 mm |
| Width | 172 mm |
| Depth | 74 mm |
| Weight | 1.85 kg |
Safety features
- Reverse polarity, over temperature and output short circuit protection
- Low input voltage cut-out to protect the start battery
Warranty
- 5-year Enerdrive warranty on the DC2DC+
- 5-year Victron warranty on the BMV-712
- Access to Springers Solar's warranty support team
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
