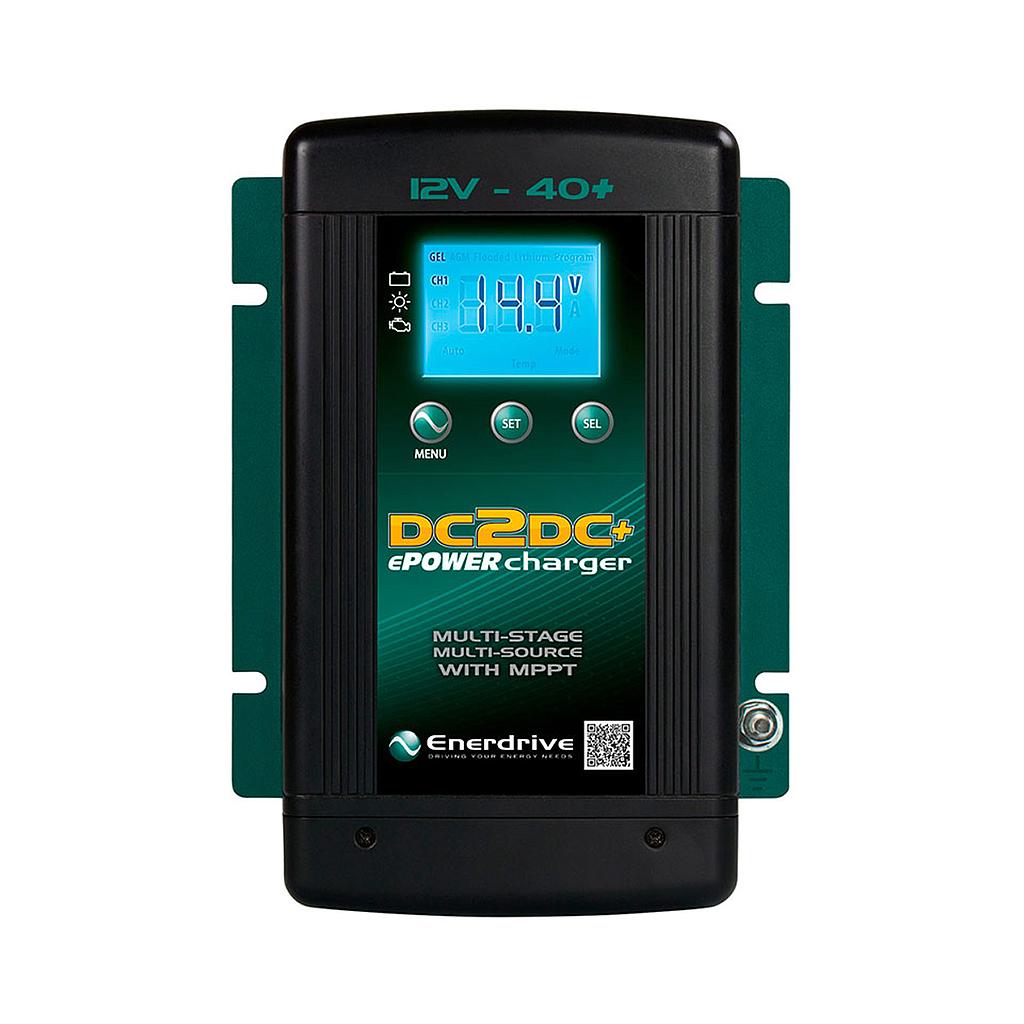

Enerdrive ePOWER 12V 40A DC2DC+ Charger
Features:
• 12/24V 40A DC-DC Charger
• Built-in MPPT Solar Regulator
• 5-year Warranty
Enerdrive ePOWER 12V 40A DC2DC+ Charger
- 12/24V 40A DC-DC charger
- Built-in MPPT solar regulator
- Two independent DC inputs for both engine & solar charging
- DC M6 screw terminals
- Maximum solar input of 45V/800W
- Fully programmable LCD screen
- Included temperature sensor
- 5-year Warranty
The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi-input battery charger with the ability to charge from either an alternator linked to a battery, or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic, and both functions are controlled from within the unit itself without the need for external relays. During normal operation, the ePOWER DC2DC+ Battery Charger will do a full charge cycle to the float stage on the house battery bank, with the ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once the float stage is reached, the charger transitions to a power supply mode to support any on-board DC loads.
Multistage Charging Process
The ePOWER DC2DC+ Battery Charger is a fully automatic, set-and-forget charger. It is designed to quickly and accurately recharge your deep-cycle batteries, utilising charger algorithms that help to maximise the life of your specialised deep-cycle batteries. The ePOWER DC2DC+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway, or when the sun is shining on your solar array. As dictated by battery manufacturers’ recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER DC2DC+ smart charger delivers three primary charge stages.
Stage 1 – Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.
Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger, allowing the current to taper off as the battery approaches full charge.
Stage 3 – Float; Finally, in the float stage, the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators). This stage allows for the charger to be used as a DC power supply.
Smart Charging Feature:
The ePOWER DC2DC+ Battery Charger will regulate its output based on the loads connected to your battery bank. This function is important to maintain the life of your battery bank, as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The ePOWER DC2DC+ Battery Charger has two methods of load-based regulation to ensure your battery charger transitions to float when it should do so.
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Enerdrive:
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
