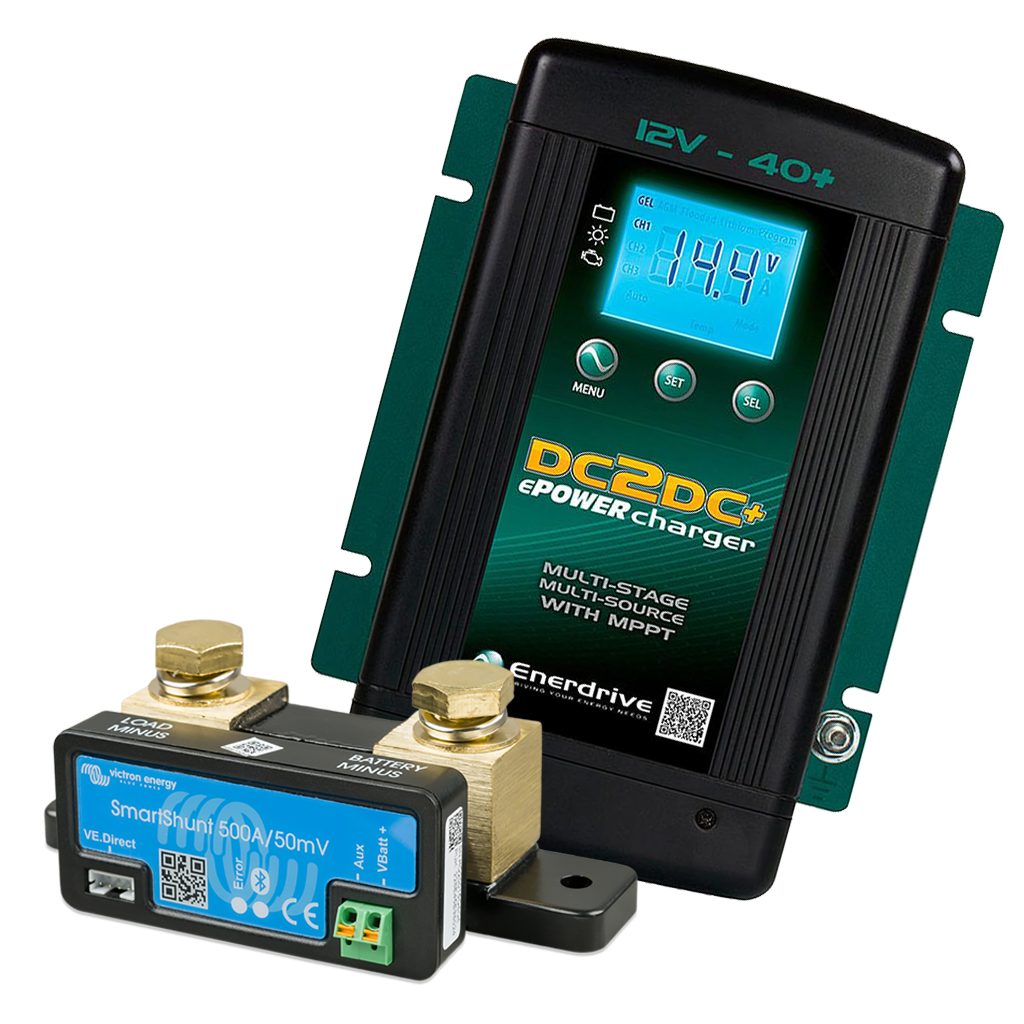

Enerdrive DC2DC40+ & Victron SmartShunt 500A
DC2DC+ 40A charger with MPPT bundled with a Victron SmartShunt 500A
Enerdrive DC2DC40+ & Victron SmartShunt 500A
Bundle includes
- Enerdrive ePOWER DC2DC+ 40A DC-DC charger with MPPT (EN3DC40+)
- Victron SmartShunt 500A battery monitor
Charger features
- 12V 40A DC-DC charger with built-in MPPT solar controller (adjustable 5-50A)
- Charges from the alternator while driving and from solar when parked: switches automatically
- Works from a 12V or 24V vehicle (10.5-16V / 21-32V input) and with smart alternators via the ignition/VSO input
- Solar input up to 45V open circuit and 500-800W
- Gel, AGM, Flooded, Lithium and fully custom charge profiles
Unit features
- Load-sensing smart charging: doesn't mistake running loads for a flat battery
- LCD display shows which source is charging, plus status, voltage and current
- Battery temperature sensor included
- Full 40A output up to 40°C with temperature-controlled fan
- M6 screw terminals for large cables; 95% efficient

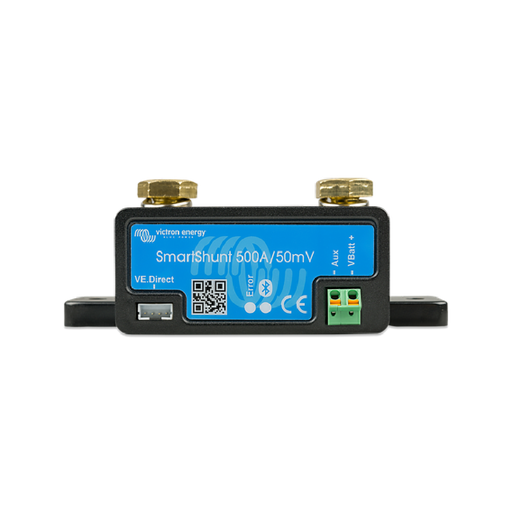

SmartShunt features
- Battery monitor without a display: your phone is the display
- Bluetooth to the VictronConnect app: state of charge, time to go and history
- VE.Direct port to connect to a Victron GX device
- Second input for a starter battery, midpoint or temperature sensor
Where to use it
The DC2DC+ is the all-in-one charger for a caravan, camper trailer, 4WD, motorhome or boat with a lithium or deep cycle house battery. While you drive it charges the house battery from the alternator at up to 40A, at the right voltage for the battery type; when you stop, its built-in MPPT controller takes over from your solar panels, with no relays or extra controllers needed.
The SmartShunt adds accurate battery monitoring without a display to mount: fit it on the battery negative and read state of charge, current and time remaining on your phone. Mount the DC2DC+ close to the battery and fuse both the vehicle input and the battery output.
Dimensions
| Height | 242 mm |
| Width | 172 mm |
| Depth | 74 mm |
| Weight | 1.85 kg |
Safety features
- Reverse polarity, over temperature and output short circuit protection
- Low input voltage cut-out to protect the start battery
Warranty
- 5-year Enerdrive warranty on the DC2DC+
- 5-year Victron warranty on the SmartShunt
- Access to Springers Solar's warranty support team
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
