Can be wired in series or parallel (no more than two in parallel)
Where to use it

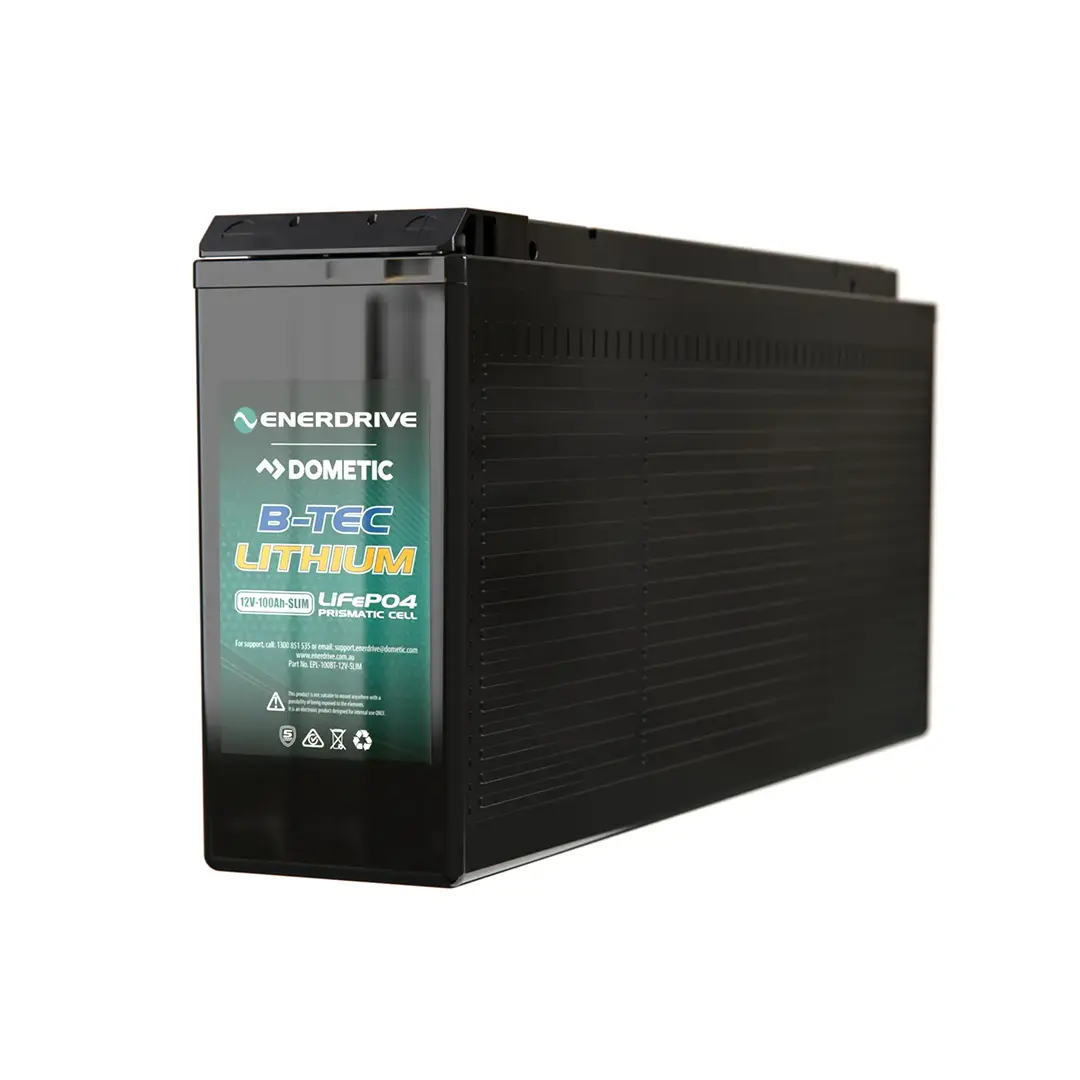

Enerdrive B-TEC slim lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp-hour capacity. The Enerdrive B-TEC slim battery provides 60% more usable power than its equivalent lead-acid cousin, and being nearly 50% lighter and 30% smaller makes for a superior alternative. The Enerdrive B-TEC slim battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small watercraft, low-power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp-hour capacity.
Dimensions
Length
551 mm
Width
109 mm
Height
239 mm
Weight
12.5 kg
What can the B-TEC app monitor?
Battery voltage, current & SOC
Temperature & cycle history
Individual cell voltages
System alarms and alerts
Event tracking & diagnostics
Warranty
5-year full replacement warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Enerdrive
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times, Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing its own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
Cycle Life (DOD – 80% under controlled conditions)
≥ 2000 Cycles
Battery Charge Temperature
0 ̴ 45°C
Normal Charge Voltage CV/CC
14.2 ̴ 14.6 V
Standby (Float) Voltage
13.5 ̴ 13.8 V
Maximum Charge Current
80A @ 25°C for 30mins
Recommended Charge Current for Maximum Life
20 A - 50 A
Battery Discharge Temperature
-20 ̴ 60°C
Battery Output Voltage Range
11.0 ̴ 14.6 V
Maximum Discharge Current
100 A @ 25°C ± 5°C for 30mins
Pulse Discharge Current
250 A for 1.0s
Discharge Cut-off Voltage
≤ 11.2 V
Circuit Protection
The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimise each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-charge Protection Per Cell
3.90 V ± 0.03 V
Over-charge Release Per Cell
3.60 V ± 0.05 V
Over-charge Release Method
Discharge below release voltage
Over-discharge Protection Per Cell
2.80 V ± 0.05 V
Over-discharge Release Per Cell
3.20 V ± 0.05 V
Over-discharge Release Method
Apply Charge/Voltage ≥ 12.8 V
Discharge Over Current
110 A for 30s – 250 A for 3s
Protection Reset Time
5s Auto Release
Over Current Release Method
Disconnect Load
Battery Discharge Over Temperature
Protection to 65°C ± 5°C Release at 50°C ± 5°C
Battery Charge Over Temperature
Protection to 55°C ± 5°C Release at 45°C ± 5°C
Short Circuit Protection
Auto release after 5s
Dimensions (l x d x h)
551 x 109 x 239mm
Weight
12.5 kg
Case Construction
Hi-Impact ABS Plastic
Temperature & Humidity Range
≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH ≥ 30 days -10°C ̴ 45°C, 5 ̴ 75% RH
