Enerdrive RV-80 Board:
Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application. Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.
*Please note; Enerdrive boards are made to order and can take 3-4 weeks lead time to build upon ordering.

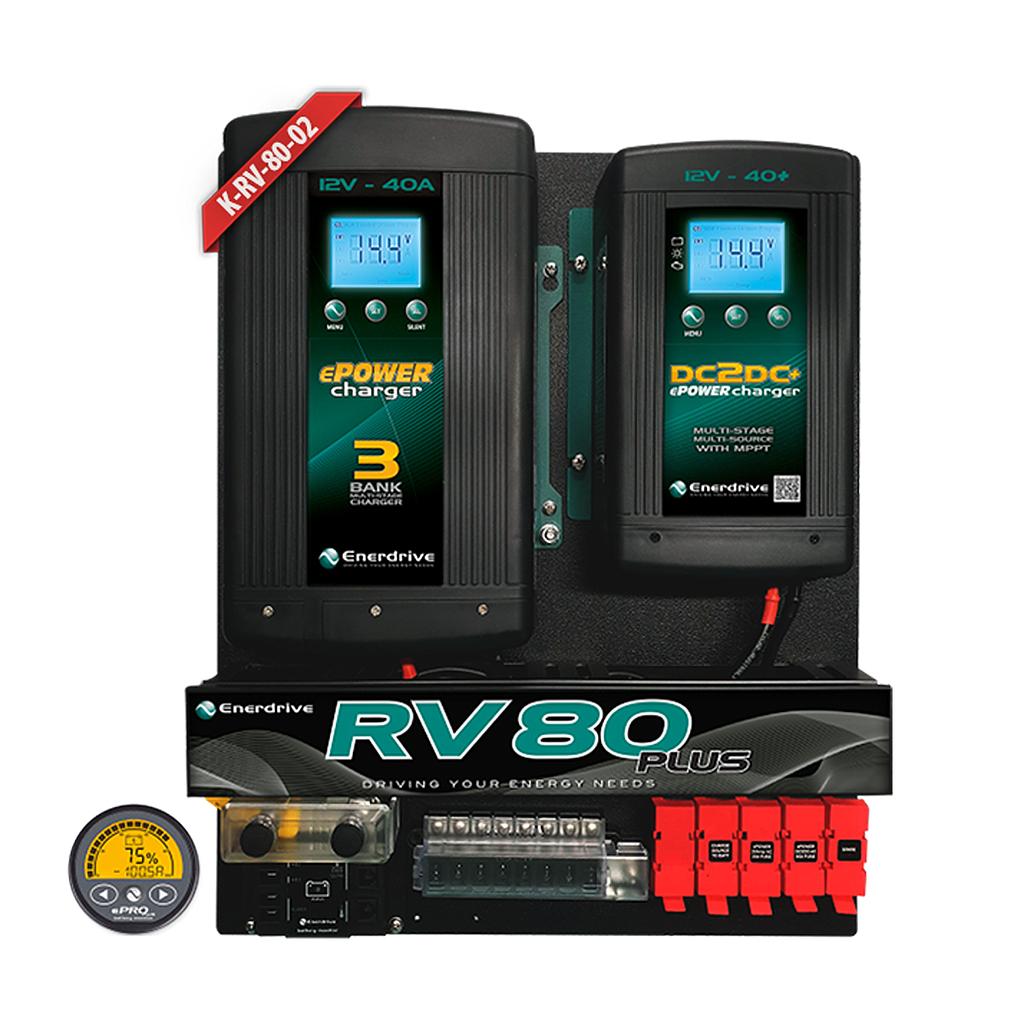

K-RV-80-02 board includes:
-Enerdrive ePOWER 12V 40A DC to DC battery charger (EN3DC40+)
- Enerdrive ePOWER 12V 40A AC battery charger (EN31240)
- Enerdrive ePRO PLUS battery monitor (EN55050)
- Blueseas Standard blade 8 circuit fuse box (BS-5046B)
- ePOWER DC2DC 60A output fuse connection
- ePOWER AC Charger 50A output fuse connection
- 50A Load output fuse connection
- 12mm Black plastic mounting board. Water & rot resistant
Enerdrive DIY boards overview:

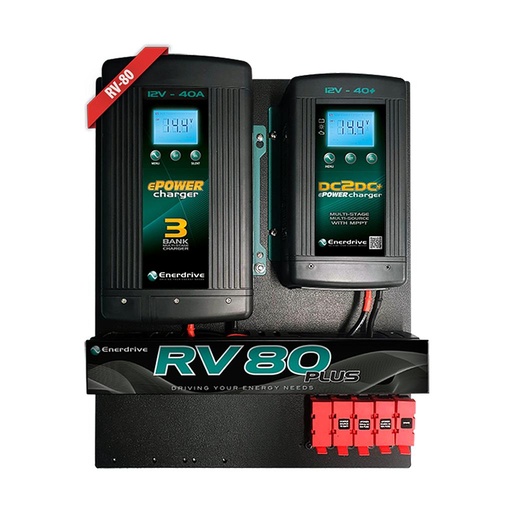

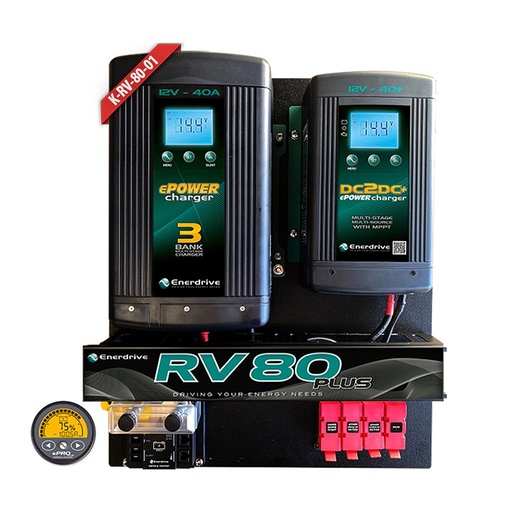

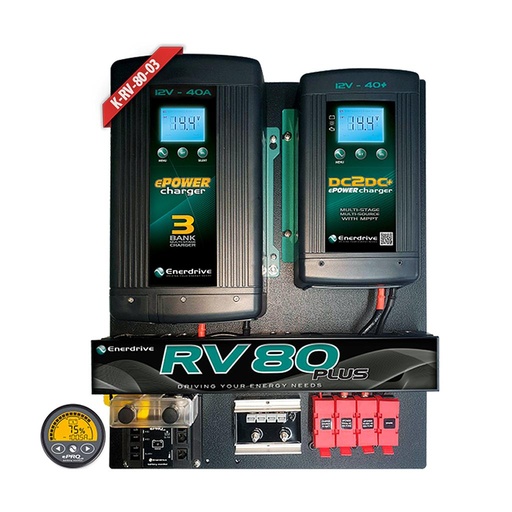

| RV80 Kits Includes: | K-RV080 | K-RV080-01 | K-RV080-02 | K-RV080-03 |
|---|---|---|---|---|
| ePOWER AC 40Amp 230v Charger | * | * | * | * |
| ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * | * | * | * |
ePRO Plus 500A Battery Monitor with Remote Display, with | * | * | * | |
| ePOWER AC Charger 50A Output Fuse Connection | * | * | * | * |
| ePOWER DC2DC 60A Output Fuse Connection | * | * | * | * |
| 50A Load Output Fuse Connection | * | * | * | * |
| 8 Circuit "Wedge" Fuse Block | * | |||
| Low Battery Cutout (Programmed in ePRO Plus via Users Data Input) | * | |||
| 12mm Black Plastic Mounting Board. Water & Rot Resistance | * | * | * | * |
| Dimensions (L x W x D) mm | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 | 480 x 400 x 100 |
| (*) Indicates Standard Fitment | ||||
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Enerdrive:
Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.
