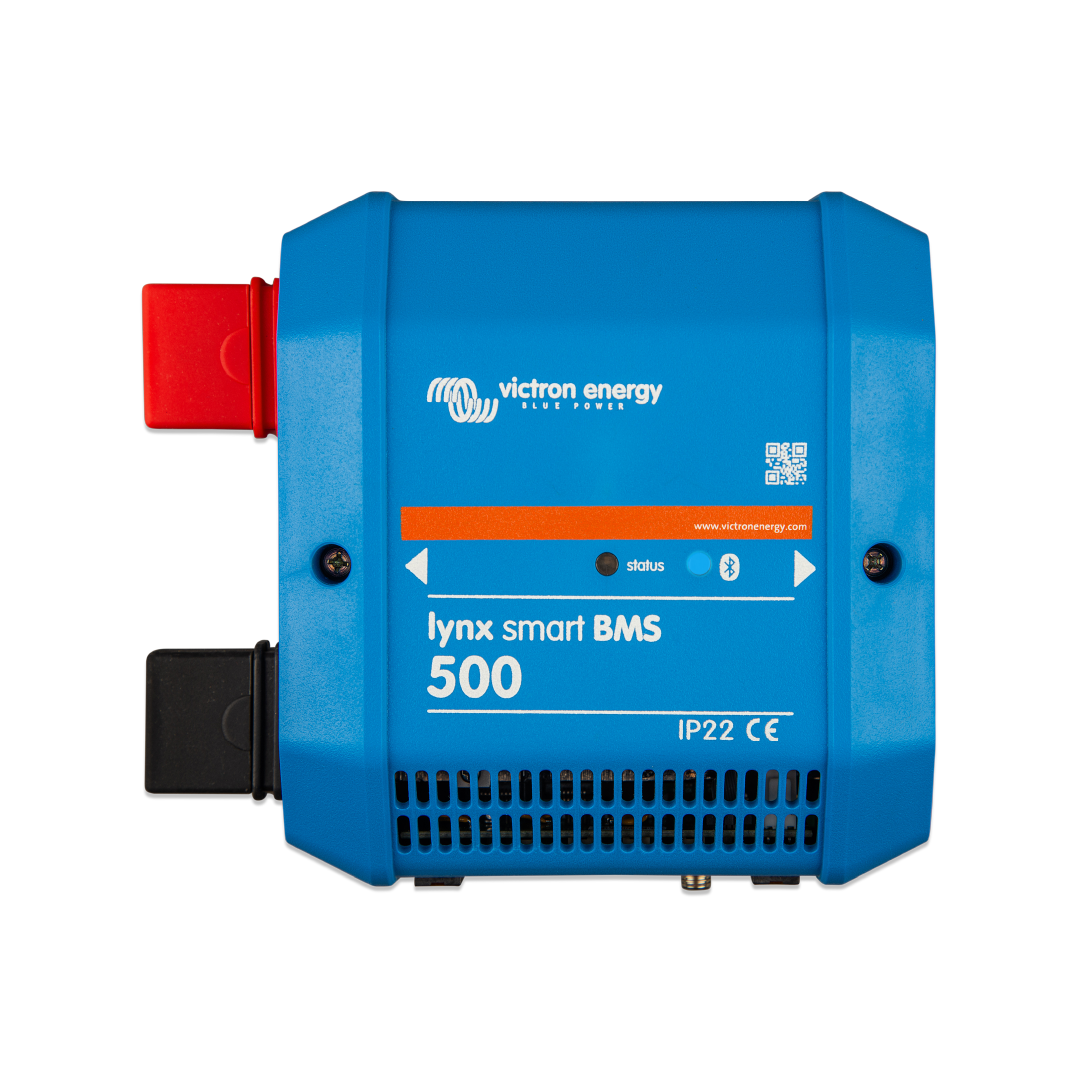

Victron Lynx Smart BMS 500
Lynx Smart BMS 500A with safety contactor and battery monitor for Victron Lithium Smart
Victron Lynx Smart BMS 500
Features:
- Battery management system for Victron Lithium Battery Smart (12.8V and 25.6V)
- Built-in 500A safety contactor: disconnects the system on a cell or temperature alarm, also usable as a main on/off switch
- Full battery monitor built in (state of charge, consumed Ah)
- Bluetooth: monitor and configure with VictronConnect
- DVCC control of chargers and inverters through a GX device; ATC/ATD contacts
- Programmable relay with alternator ATC mode; pre-alarm
- Monitors Lynx Distributor fuses
- M8 busbars; 12, 24 or 48V systems, up to 20 batteries
Where to use it
Lynx distribution systems in yachts, RVs and off-grid homes with Victron Lithium Battery Smart, where a safety contactor and full digital integration are needed.
Dimensions
| Enclosure dimensions (h x w x d) | 190 x 180 x 80 mm |
| Weight | 1.9 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
