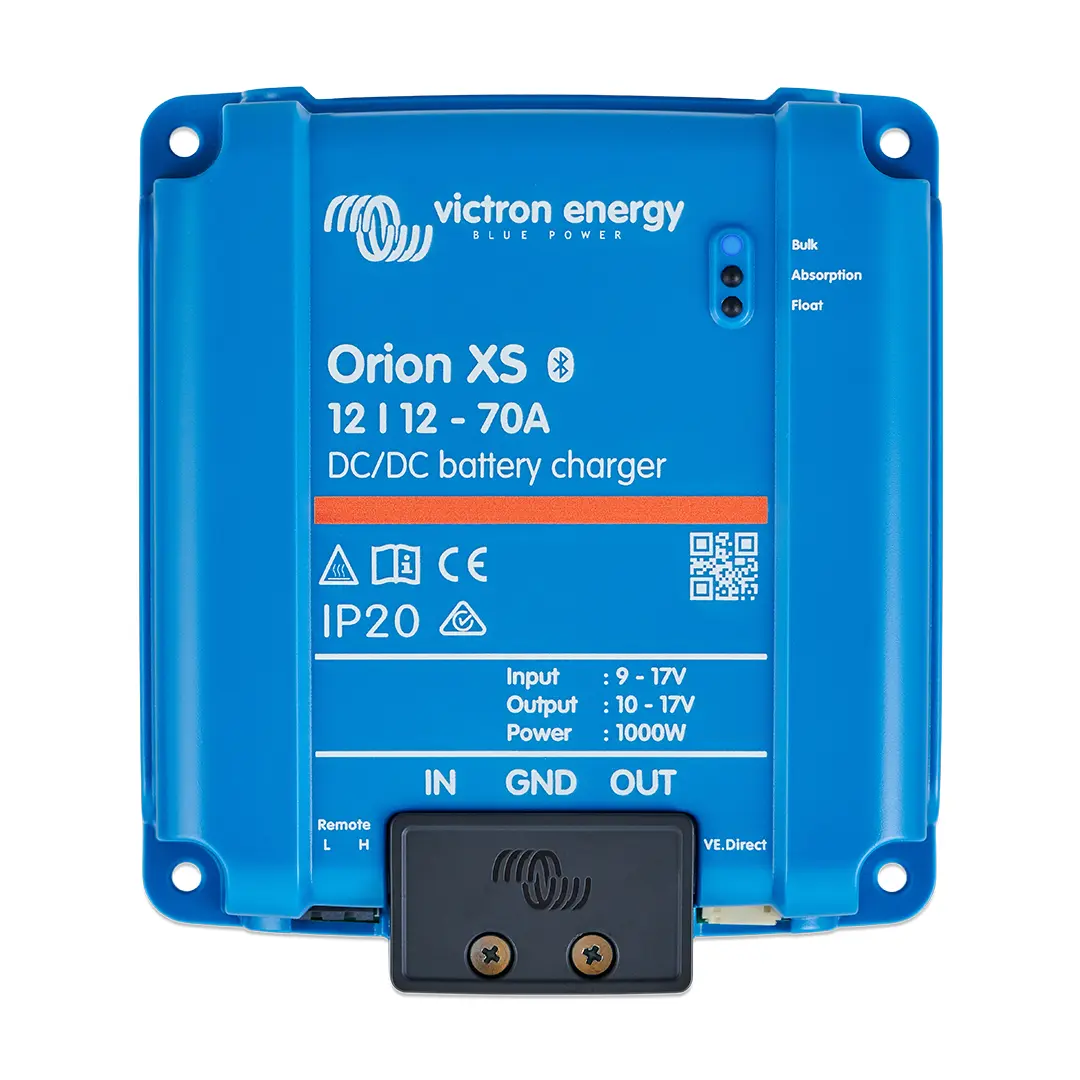

Victron Orion XS 12/12-70A DC-DC Battery Charger
Victron Orion XS 12/12-70A DC-DC Battery Charger
Features
- 70 A high-power charging
- Non-isolated
- Suitable for 12 V systems
- Works with smart alternators
- Compatible with AGM, gel, flooded, and lithium batteries
- Compact, lightweight design
- Built-in Bluetooth with VictronConnect app
- Parallel connection for higher output
- Full electronic protections
Where to use it
Designed for situations where you need to reliably charge an auxiliary battery from your vehicle's alternator while driving.
Ideal for use in 4WD and touring setups, caravans and camper trailers, marine applications, RV and motorhomes, and dual-battery systems.
How to use it
Install the Victron Orion XS 12/12-70 DC-DC Battery Charger between your vehicle's starter and auxiliary battery. Connect the input side to your starter battery or alternator and the output side to your auxiliary battery.
Use the built-in Bluetooth and VictronConnect app to select the charging profile for your battery (AGM, gel, flooded, or lithium).
Once installed, the charger automatically supplies up to 70A of regulated charge to your auxiliary battery whenever your vehicle is running.
View real-time charging data and battery status with the VictronConnect app. Adjust settings as needed.
With your auxiliary battery topped up while you drive, you'll have plenty of power for fridges, lights, pumps, and other gear when you stop.
Dimensions
Width | 123.1 mm |
Height | 137.3 mm |
Depth | 40 mm |
Weight | 0.34 kg |
Safety Features
- IP65 rated - protected against dust and rain
- Low-temperature shutdown and input under-voltage protection to prevent damage to lithium batteries
- IEC 62477-1 certified
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
