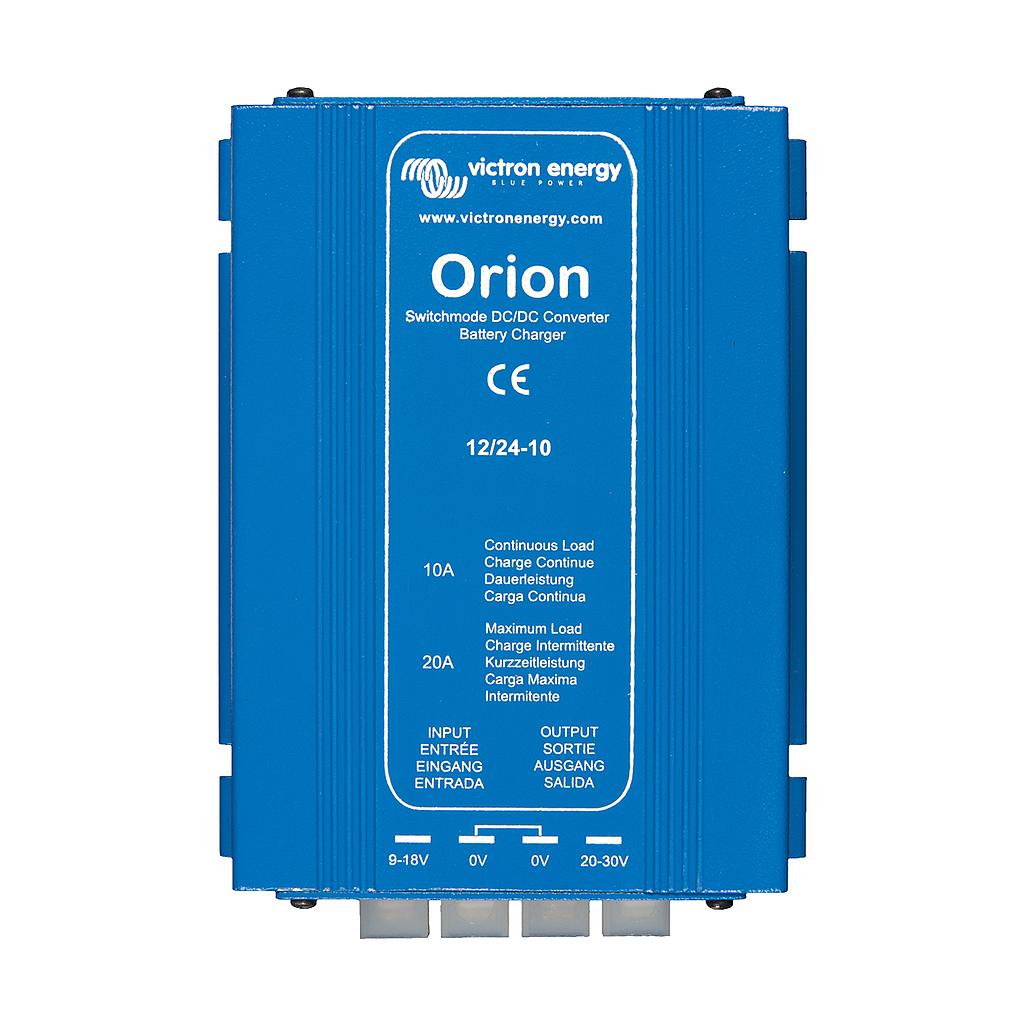

Victron Orion 12/24-10A DC-DC Converter
Features
- 12V to 24V non-isolated DC-DC converter, 10A continuous (20A max)
- 95% efficiency
- Adjustable output 20-30V (factory set 26.4V) with potentiometer
- Can buffer-charge a 24V battery
- Can be connected in parallel for more current
- Faston 6.3 mm tab connections
Where to use it
Running 24V equipment from a 12V vehicle or boat system, or keeping a 24V battery topped up from 12V.
Non-isolated: input and output share a common negative. This model has no remote on/off; for that, see the Orion 12/24-20A.
Dimensions
| Dimensions (h x w x d) | 45 x 90 x 125 mm |
| Weight | 0.4 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
