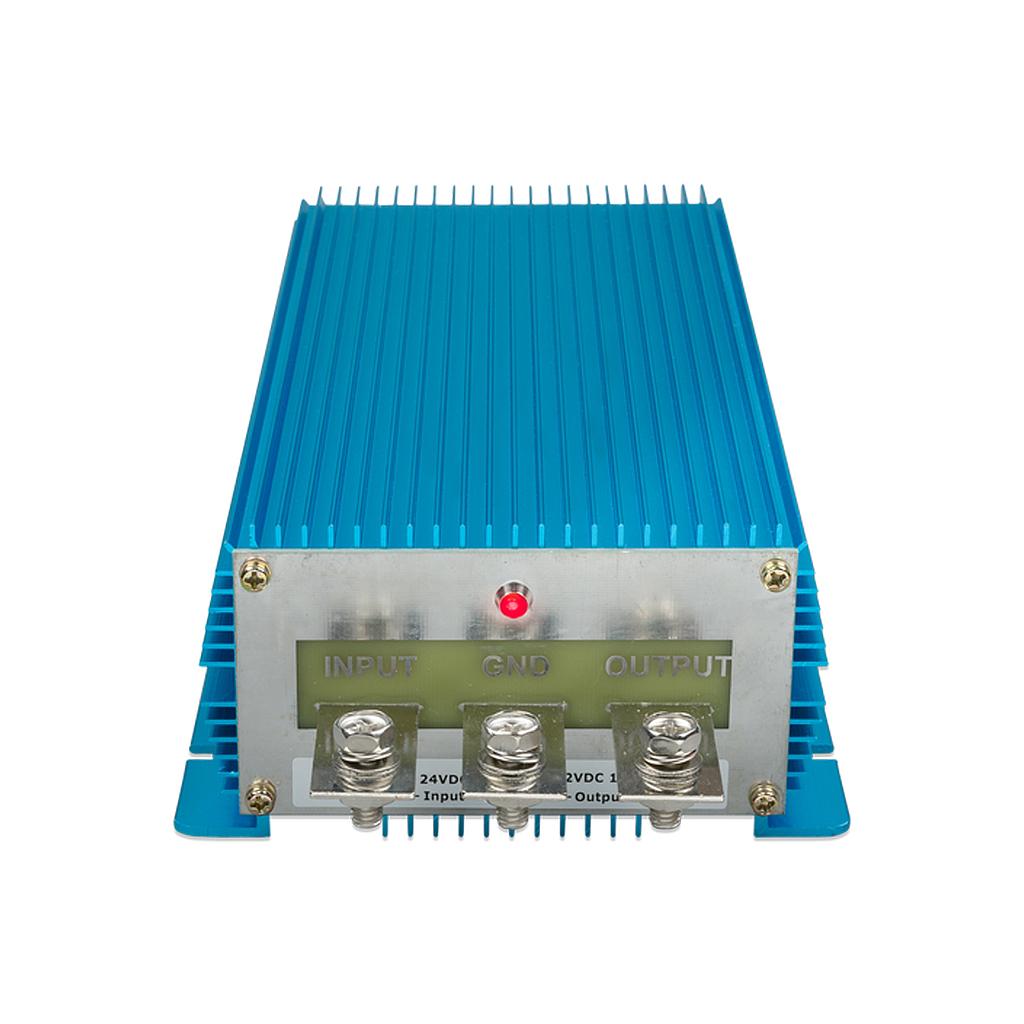

Victron Orion IP67 24/12-100A DC-DC Converter
Waterproof IP67 24V to 12V DC-DC converter, 100A continuous
Victron Orion IP67 24/12-100A DC-DC Converter
Features
- 24V to 12V non-isolated DC-DC converter, 100A continuous
- Fully waterproof: IP67, electronics moulded in resin, cast aluminium case
- 96% efficiency
- Operates from -40 to +70°C
- Short circuit proof, hiccup-mode overload protection
- M6 bolt connections
Where to use it
Powering 12V equipment from a 24V system in harsh places: engine bays, trucks, machinery, boats and outdoor installs where water, oil or dirt are present.
Fit an external fuse or circuit breaker on the input for reverse polarity protection.
Dimensions
| Dimensions (h x w x d) | 265 x 127 x 63 mm |
| Weight | 2.15 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
