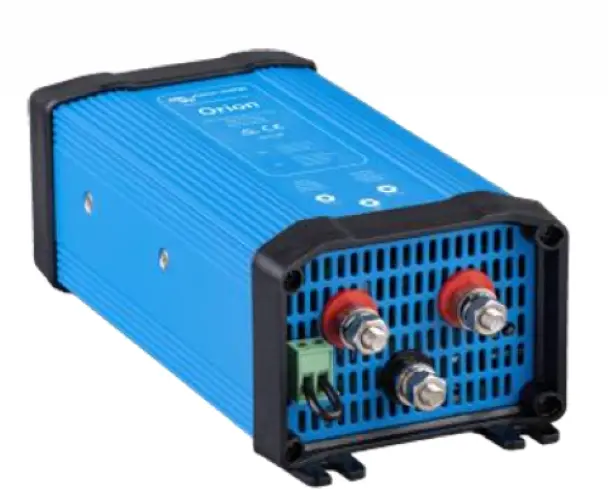

Victron Orion 24/12-80 DC-DC converter IP20
This high-power, non-isolated DC-DC converter efficiently steps down 24V power to a stable 13.2V output, featuring an adjustable design that allows it to double as a battery charger or be paralleled with up to five units for increased current.
Victron Orion 24/12-80 DC-DC converter IP20
Features
- 24V to 12V DC Conversion
- 80A Output Current
- Remote On-Off Connector
- Battery Charger Function
- Parallelable Configuration
- Easy IP20 Installation
Where to use it
The Victron Orion 24/12-80 DC-DC Converter is a high-power, professional-grade solution engineered to deliver clean, stable 12V power from a primary 24V battery system. Boasting up to 95% efficiency and fan-assisted thermal management, this non-isolated unit provides a massive 80A of continuous output current, making it ideal for demanding 12V loads in 4WDs, caravans, commercial trucks, and marine setups. It features a convenient remote on/off connector to eliminate the need for high-current input switching, an adjustable output that allows it to safely double as a 12V battery charger, and the capability to run up to five units in parallel for scaled capacity. Housed in a compact, durable IP20 chassis and bundled with six insulated female crimp Faston connectors, it is perfect for indoor or protected installations where heavy-duty reliability is non-negotiable.
Dimensions
| Width | 88 mm |
| Height | 195 mm |
| Depth | 65 mm |
| Weight | 0.9 kg |
Safety Features
- Short circuit protection
- Overheating (over-temperature) protection
- Overload (current-limiting) protection
- IP20 enclosure rating
- Remote on-off connector
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
